Vibration Seat: Notes

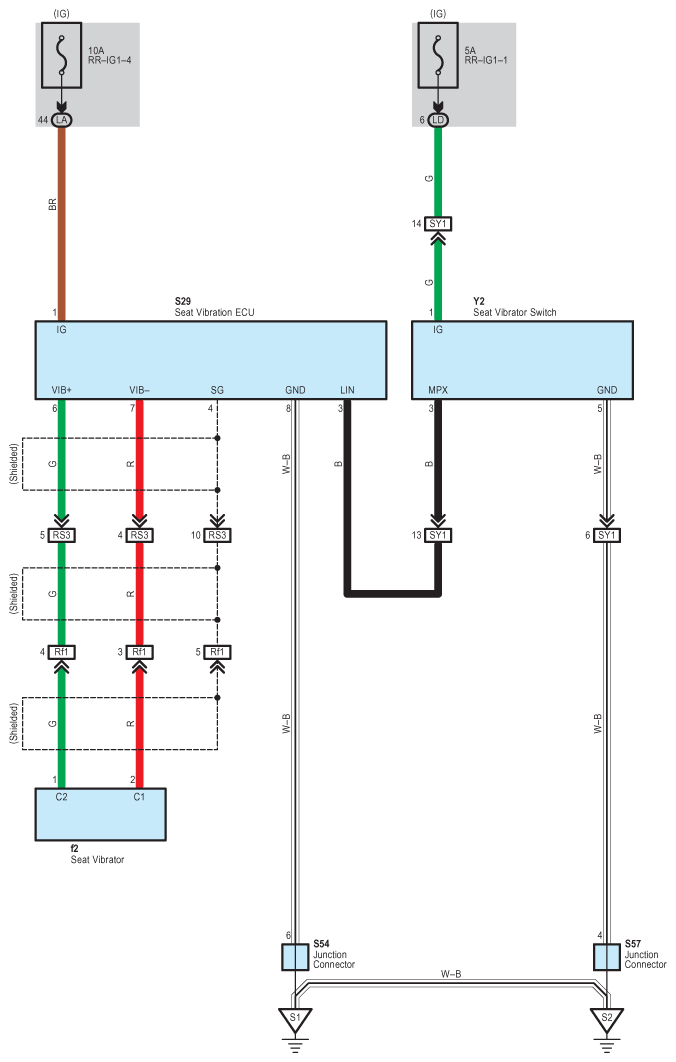

Fig 1: Vibration Seat System Wiring Diagram
G08920839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
