Engine Switch: Components

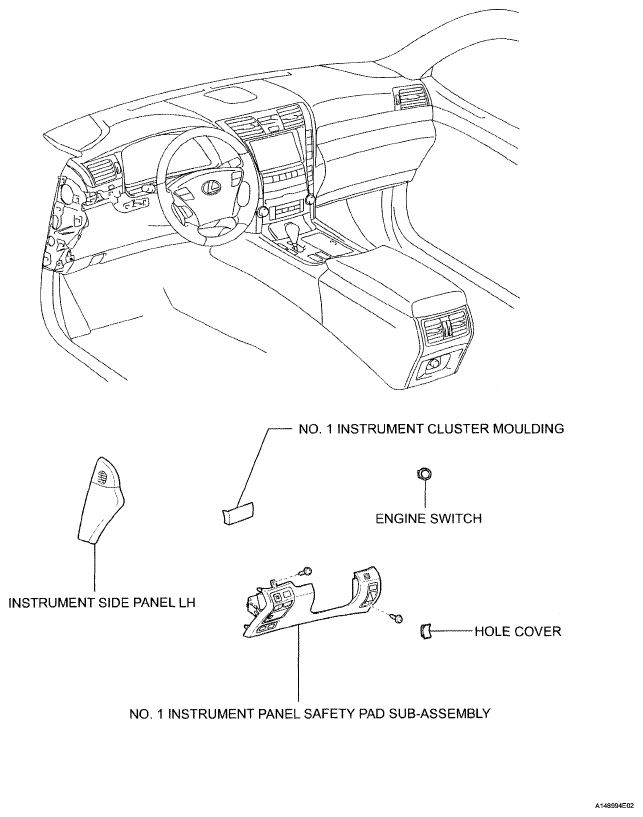

Fig 1: Identifying Engine Switch Components

G04943937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
