Lexus
›
2007
›
LS 460L
›
Repair and Diagnosis
›
Engine Mechanical
›
Mechanical
›
Intake
›
Intake System
›
System Diagram
System Diagram

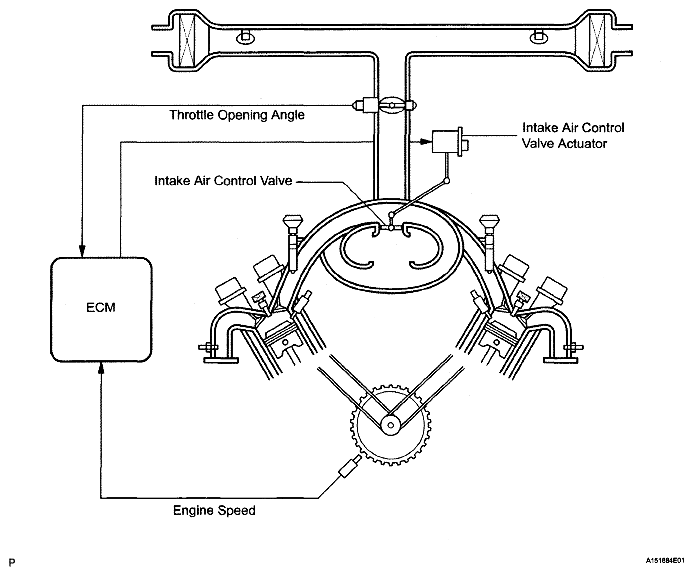

Fig 1: Intake System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

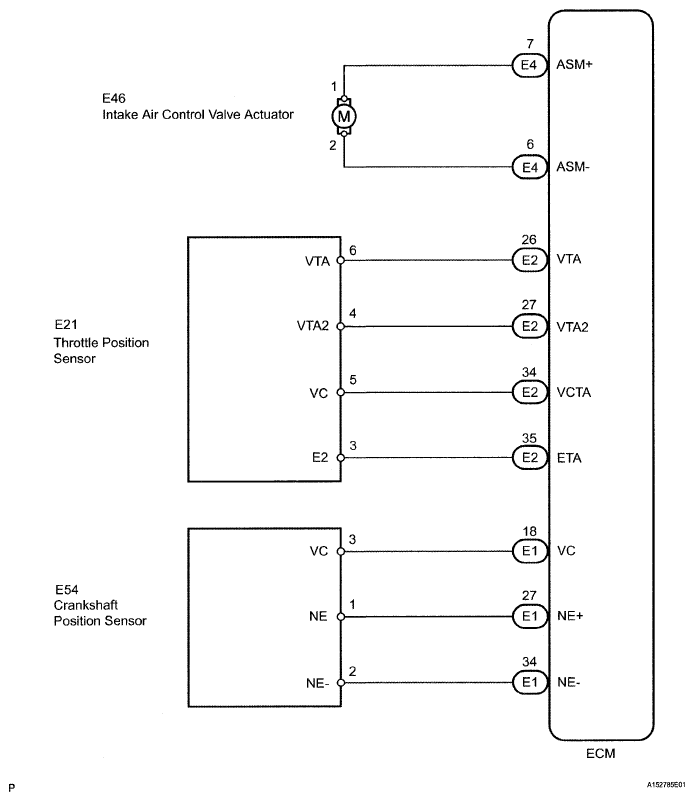

Fig 2: Intake System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
