Removal and Installation of Display Unit
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Remove combination meter. Refer to "REMOVAL AND INSTALLATION OF COMBINATION METER ".
- Remove combination meter rear cover.

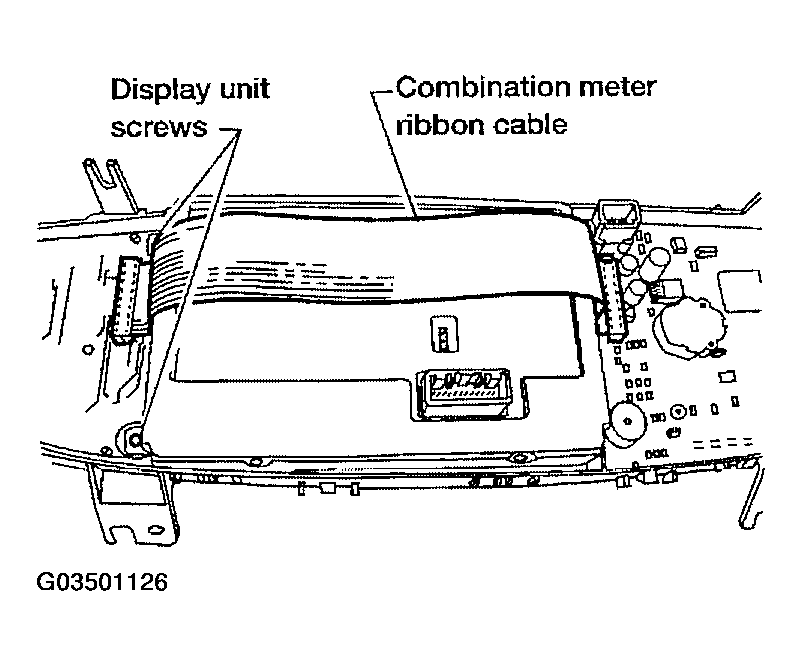

- Disconnect combination meter ribbon cable.
- Remove the two display unit screws.
- Rotate bracket to remove it.
- Remove display unit.
- Installation is in reverse order of removal.
