Section 266 (Automatic Transmission): Disassembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not disassemble parts behind Drum Support. Refer to "CROSS-SECTIONAL VIEW (2WD MODELS) " or "CROSS-SECTIONAL VIEW (4WD MODELS) ".

Drain ATF through drain plug.

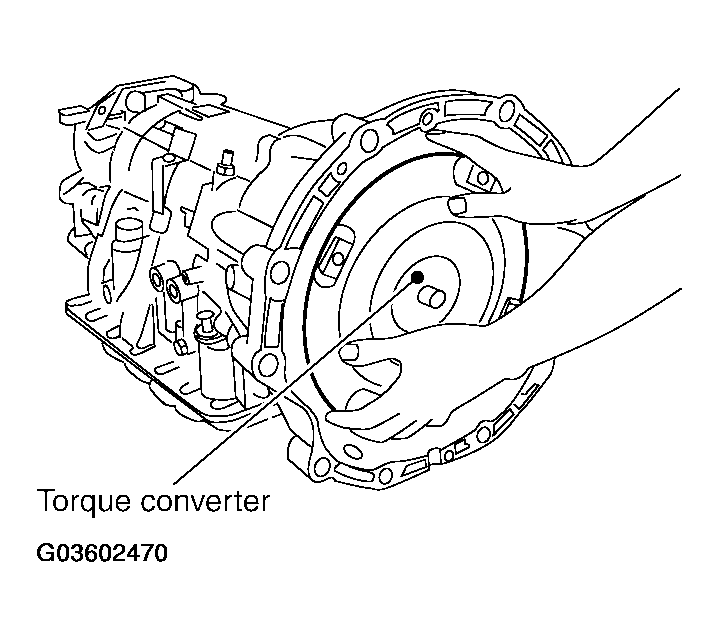

Remove torque converter by holding it firmly and turing while pulling straight out.

Fig 1: Removing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.

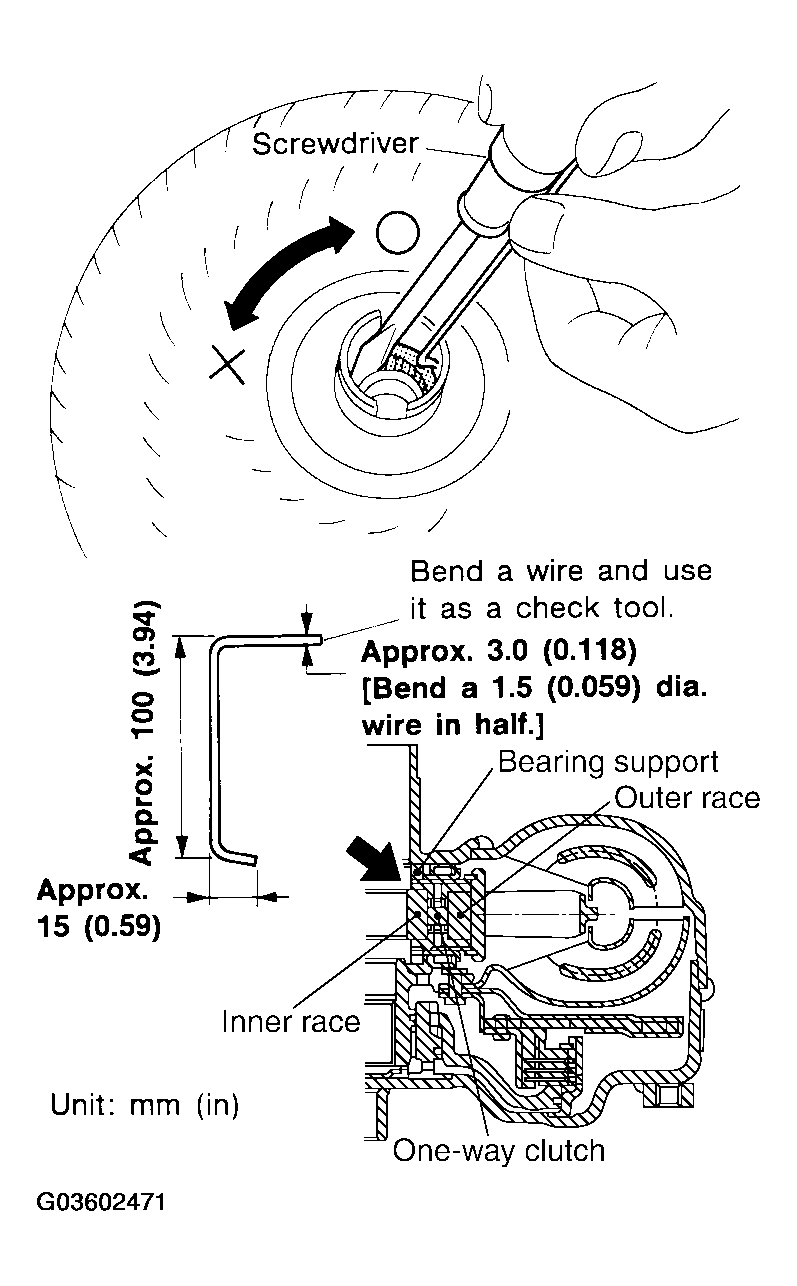

Check torque converter one-way clutch using check tool as shown.
1. Insert check tool into the groove of bearing support built into one-way clutch outer race.
2. When fixing bearing support with check tool, rotate one- way clutch spline using screwdriver.
3. Check that inner race rotates clockwise only. If not, replace torque converter assembly.

  Fig 2: Checking Torque Converter One-Way Clutch
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove converter housing from transmission case.
CAUTION: Be careful not to scratch converter housing.

Fig 3: Removing Converter Housing From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

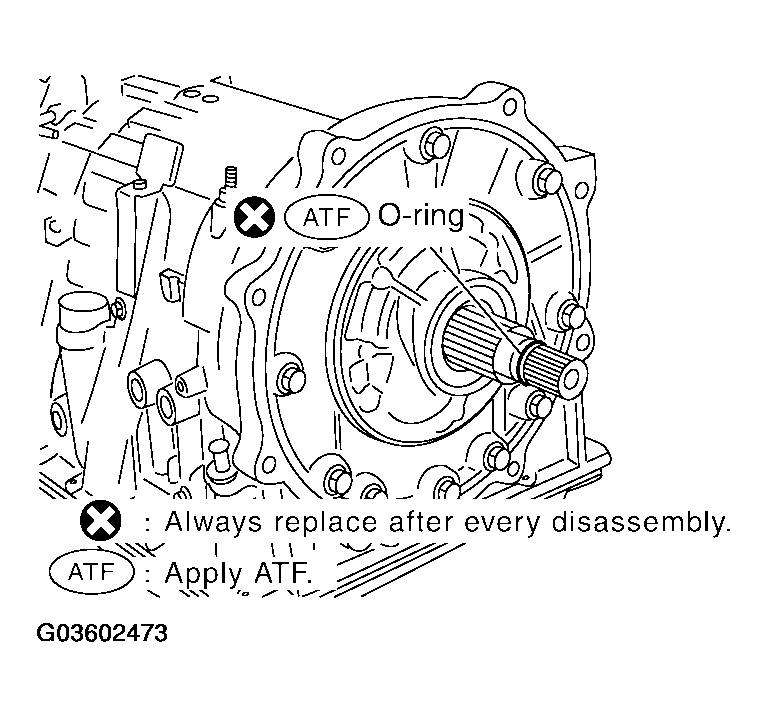

Remove O-ring from input clutch assembly.

Fig 4: Removing O-Ring From Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

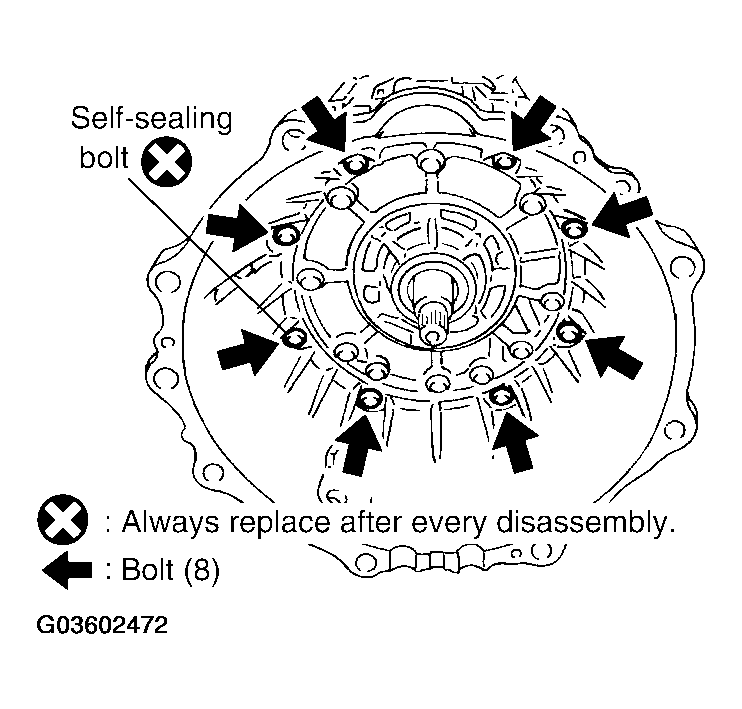

Remove tightening bolts for oil pump assembly and transmission case.

Fig 5: Removing Tightening Bolts For Oil Pump Assembly And Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

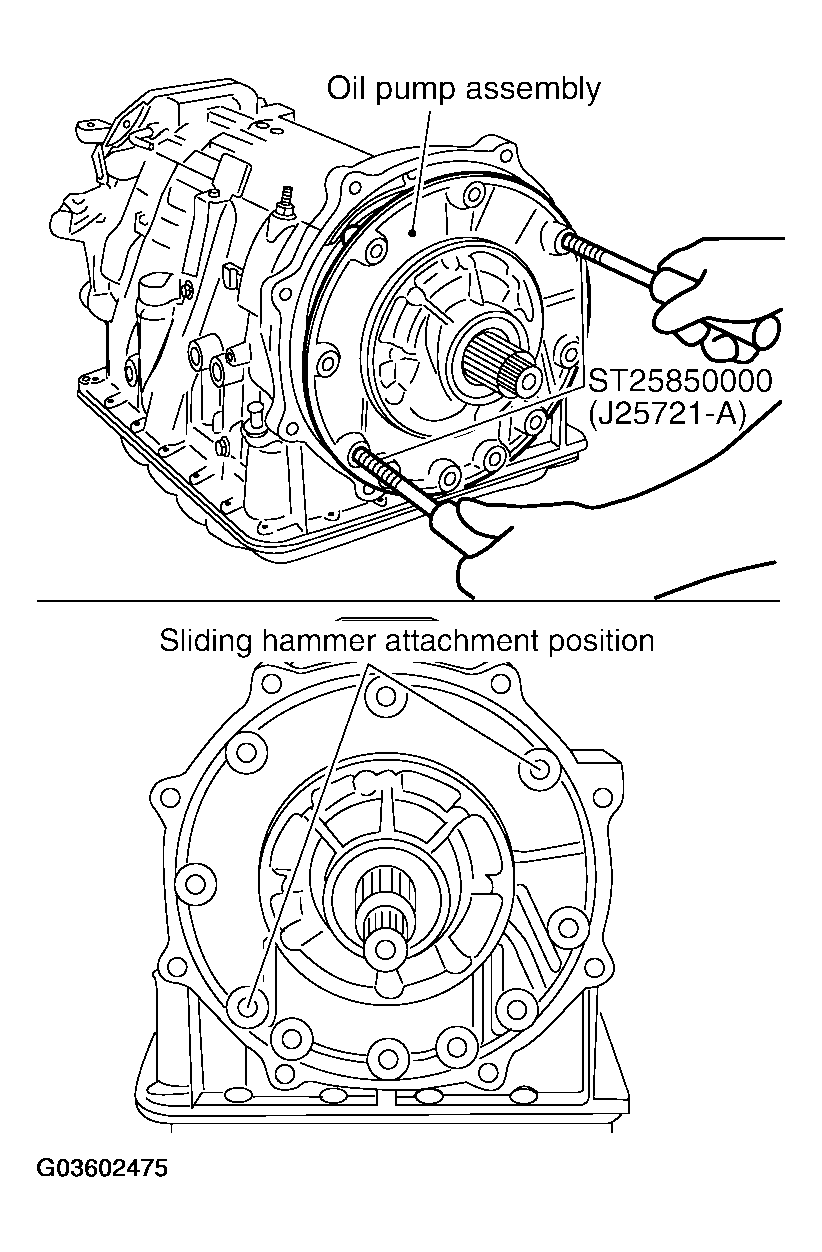

Attach sliding hammer to oil pump assembly and extract it evenly from transmission case.
CAUTION:
- Fully tighten sliding hammer screw.
- Make sure that bearing race is installed to the oil pump assembly edge surface.

  Fig 6: Removing Oil Pump Assy
  Courtesy of NISSAN MOTOR CO., U.S.A.

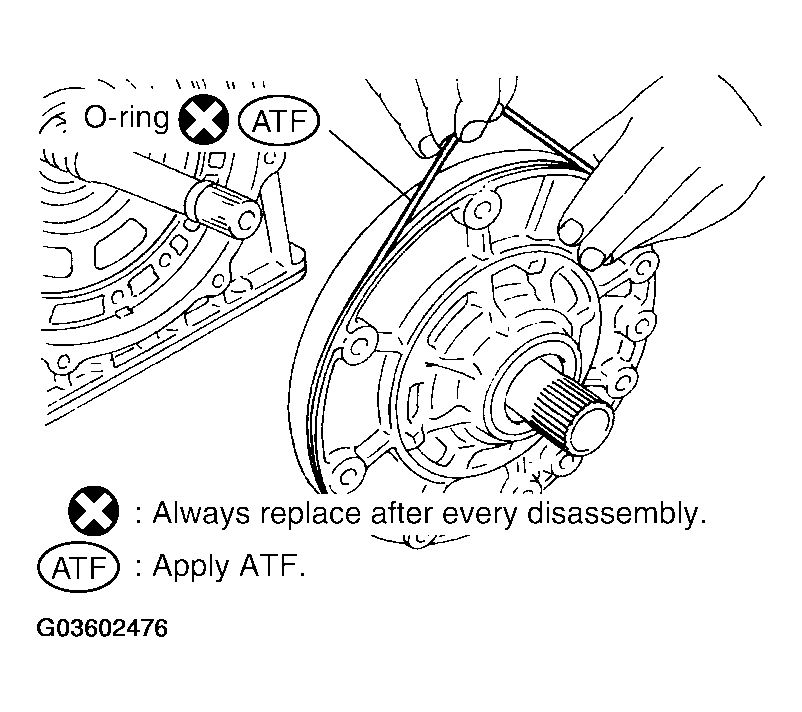

Remove O-ring from oil pump assembly.

Fig 7: Removing O Ring From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

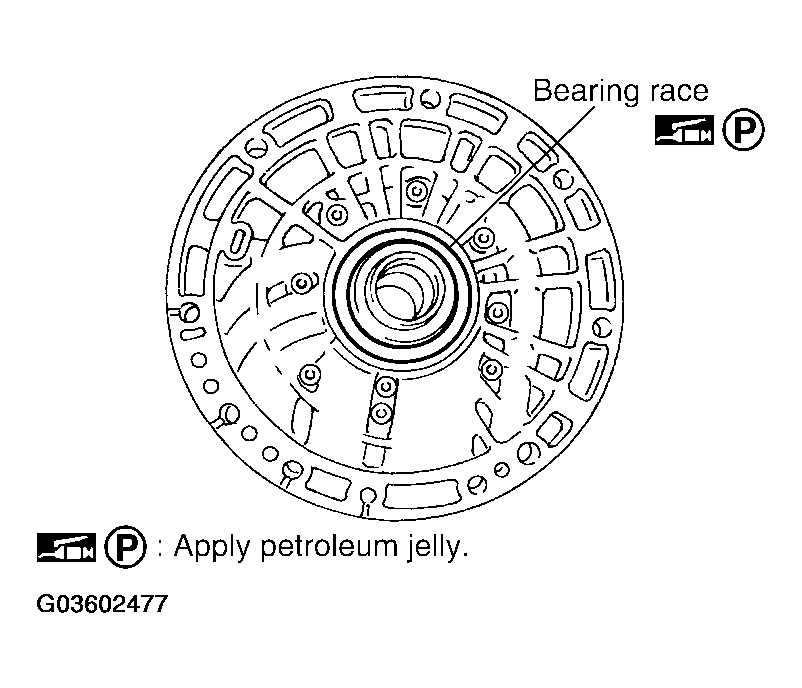

Remove bearing race from oil pump assembly.

Fig 8: Removing Bearing Race From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

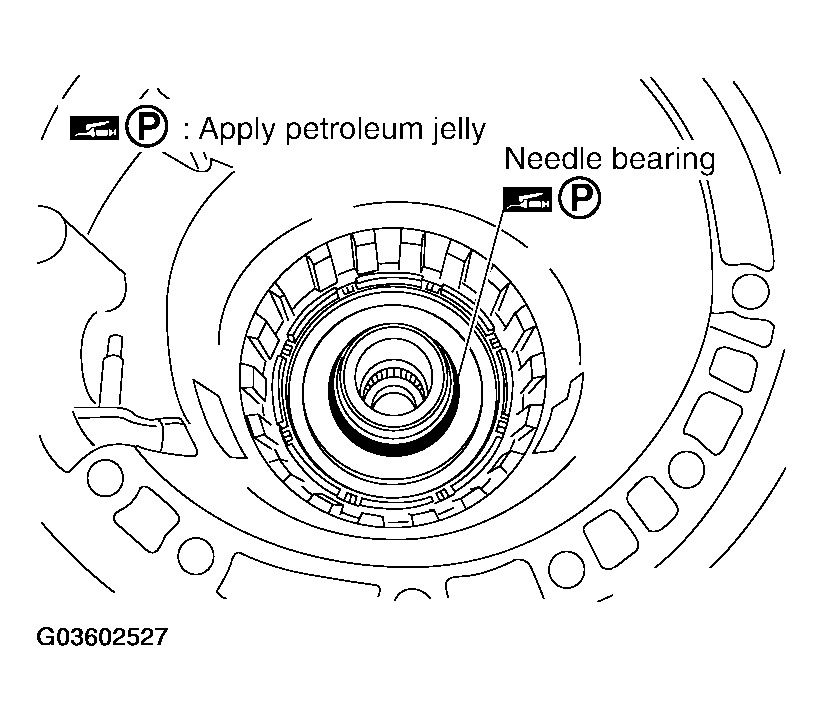

Remove needle bearing from front sun gear assembly.

Fig 9: Removing Needle Bearing From Front Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

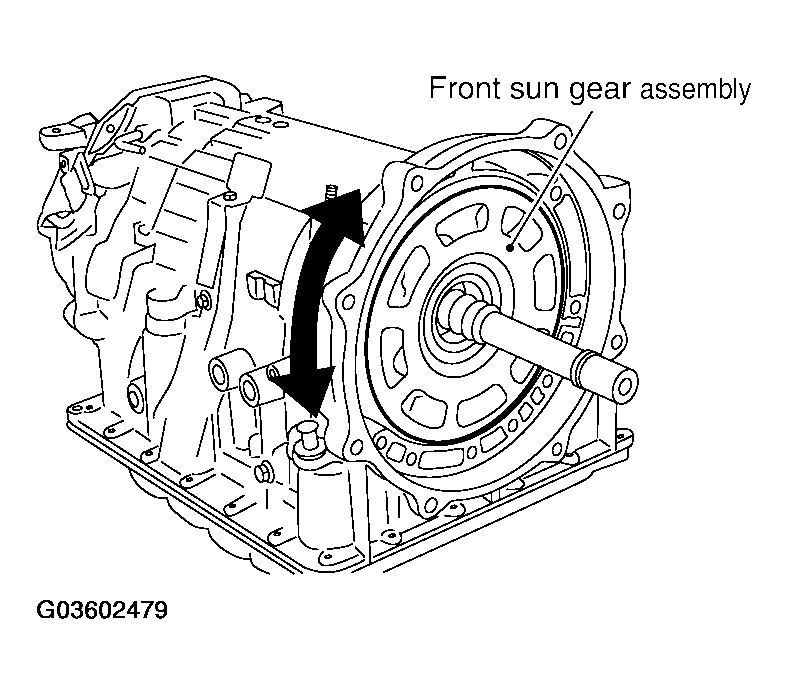

Remove front sun gear assembly from front carrier assembly.
NOTE: Remove front sun gear assembly by rotating left/right.

Fig 10: Removing Front Sun Gear Assembly From Front Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from input clutch assembly.

Fig 11: Removing Seal Rings From Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

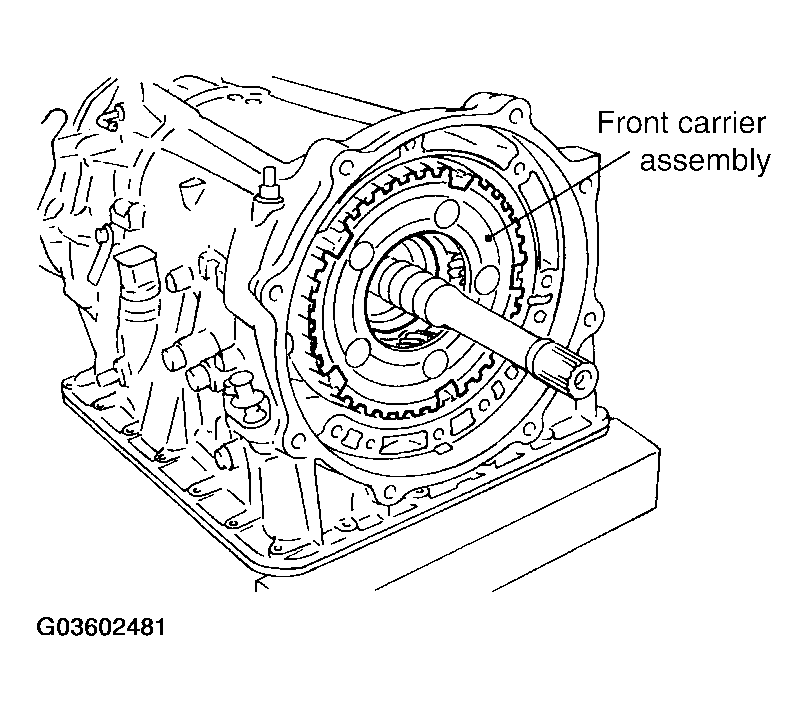

Remove front carrier assembly, input clutch assembly and rear internal gear as a unit.
CAUTION: Be careful to remove it with needle bearing.

Fig 12: Removing Front Carrier Assembly, Input Clutch Assembly And Rear Internal Gear As Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

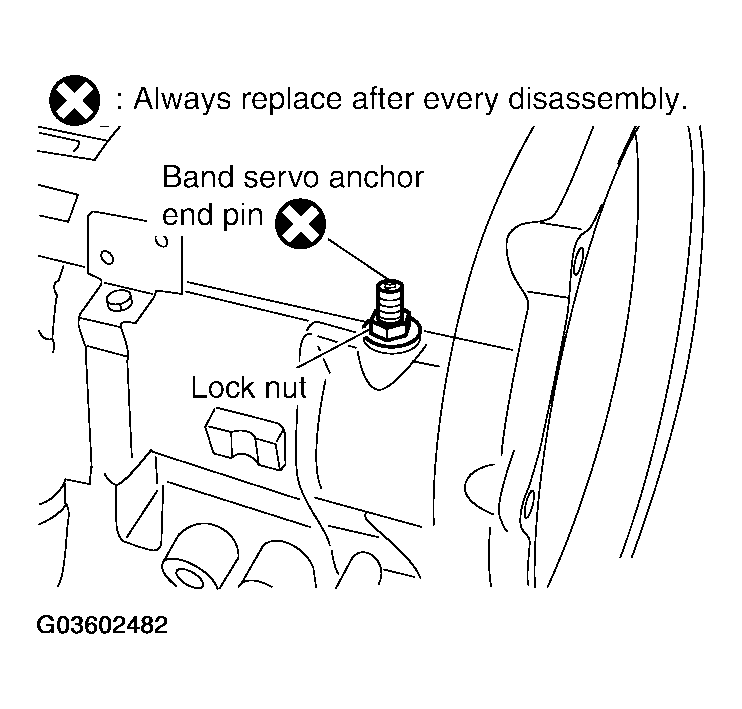

Loosen lock nut and remove band servo anchor end pin from transmission case.

Fig 13: Removing Band Servo Anchor End Pin From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

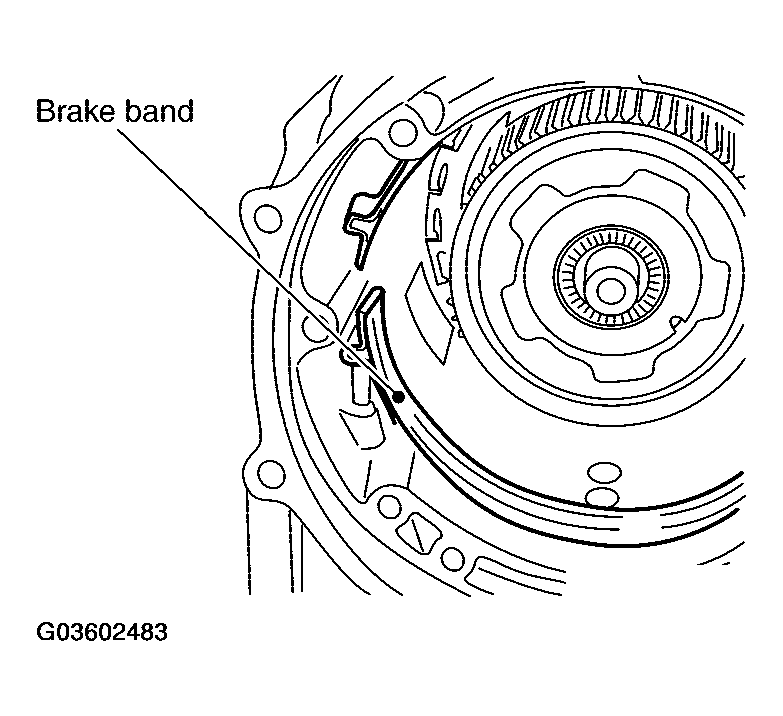

Remove brake band from transmission case.

Fig 14: Removing Brake Band From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
- To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown in the figure at left .
  Leave the clip in position after removing the brake band .
- Check brake band facing for damage, cracks, wear or burns .

  Fig 15: Securing Brake Band With Clip
  Courtesy of NISSAN MOTOR CO., U.S.A.

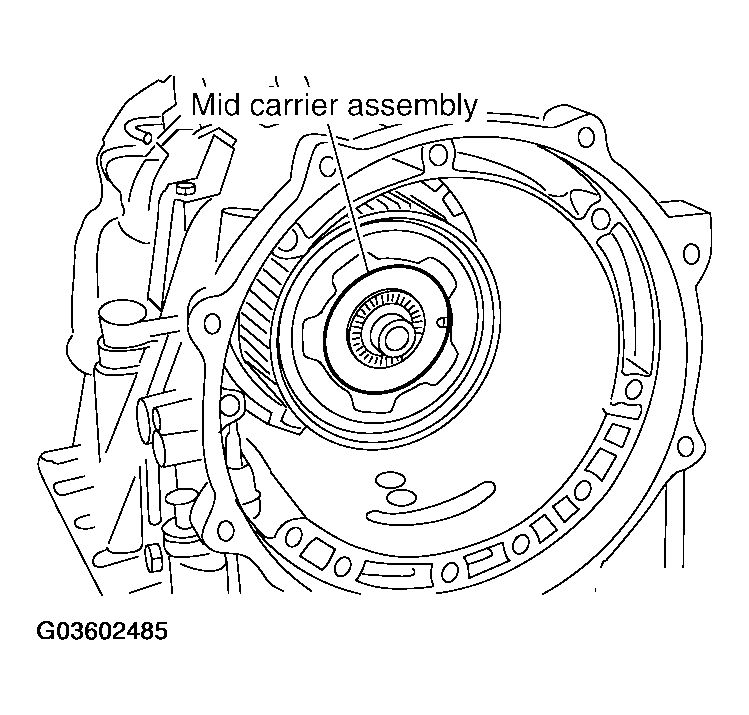

Remove mid carrier assembly and rear carrier assembly as a unit.

Fig 16: Removing Mid Carrier Assembly And Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

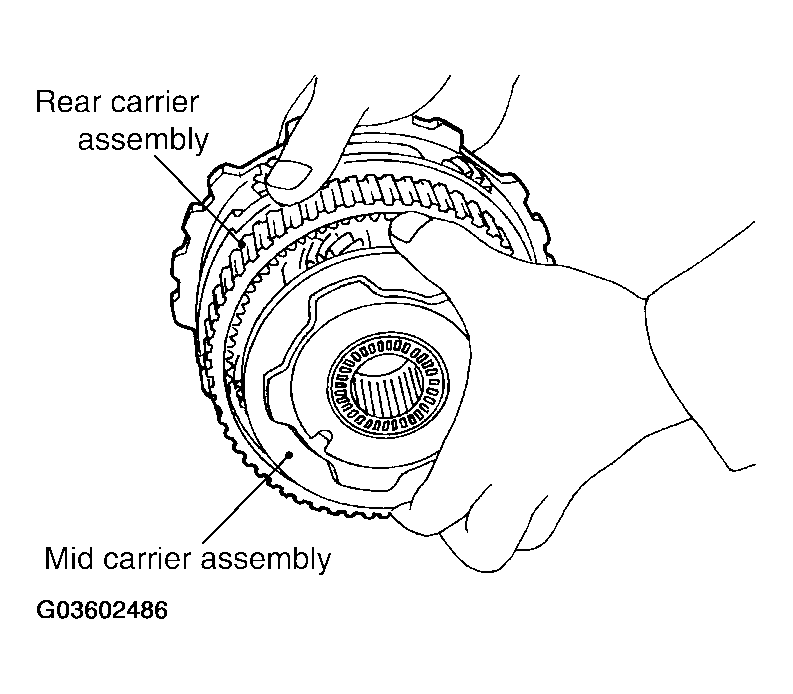

Remove mid carrier assembly from rear carrier assembly.

Fig 17: Removing Mid Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

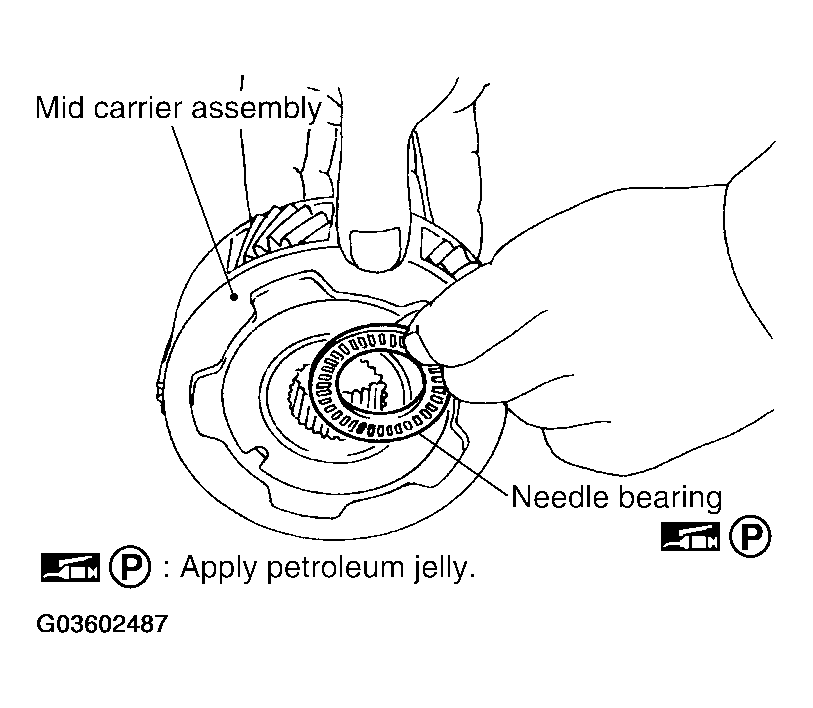

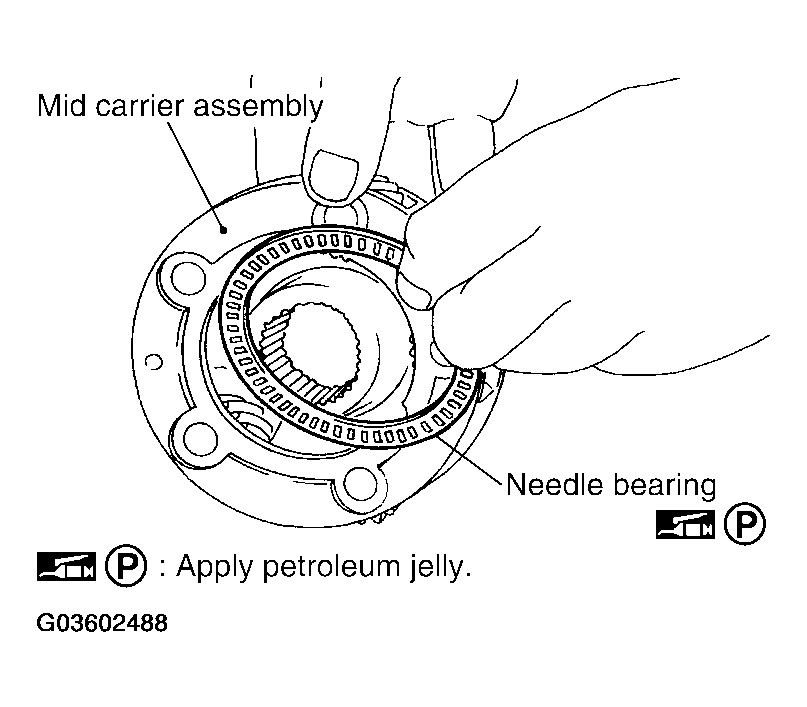

Remove needle bearing (front side) from mid carrier assembly.

Fig 18: Removing Needle Bearing (Front Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (rear side) from mid carrier assembly.

Fig 19: Removing Needle Bearing (Rear Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

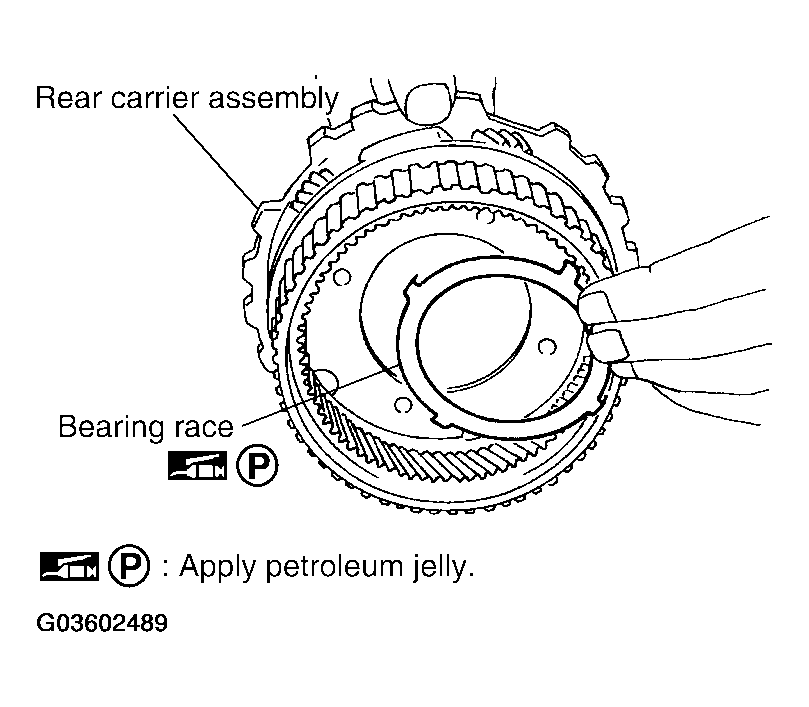

Remove bearing race from rear carrier assembly.

Fig 20: Removing Bearing Race From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

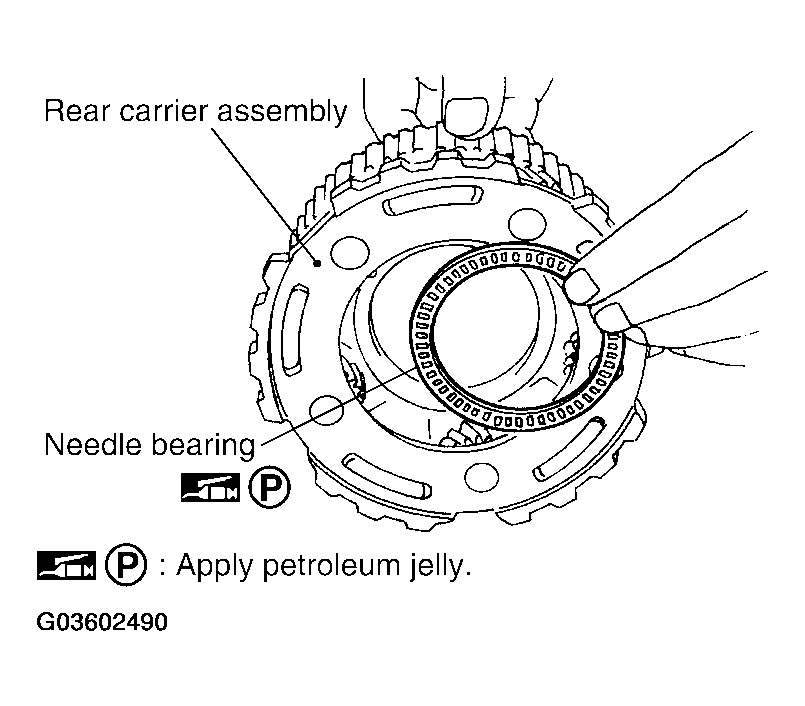

Remove needle bearing from rear carrier assembly.

Fig 21: Removing Needle Bearing From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

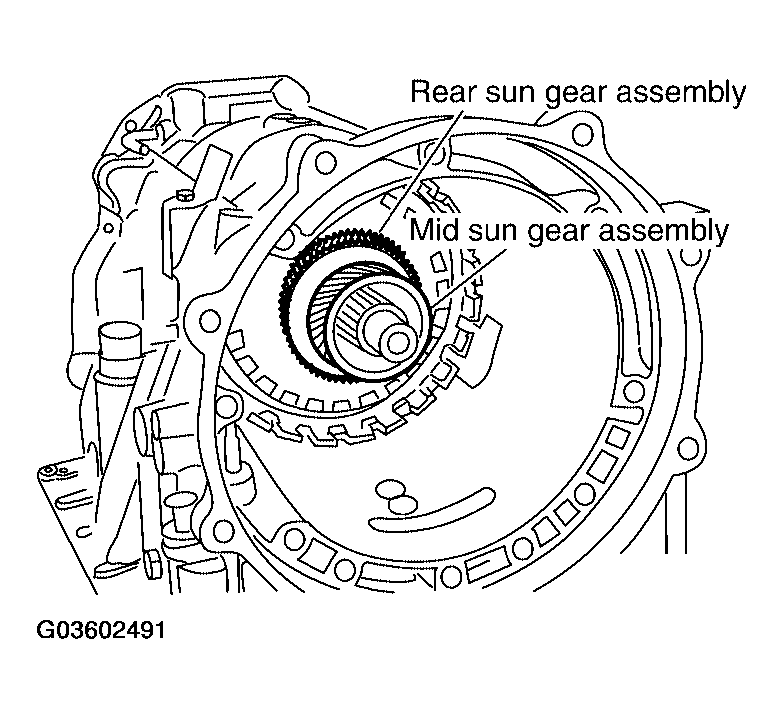

Remove mid sun gear assembly, rear sun gear assembly and high and low reverse clutch hub as a unit.
CAUTION: Be careful to remove then with bearing races and needle bearing.

Fig 22: Removing Mid Sun Gear Assembly, Rear Sun Gear Assembly And High And Low Reverse Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.

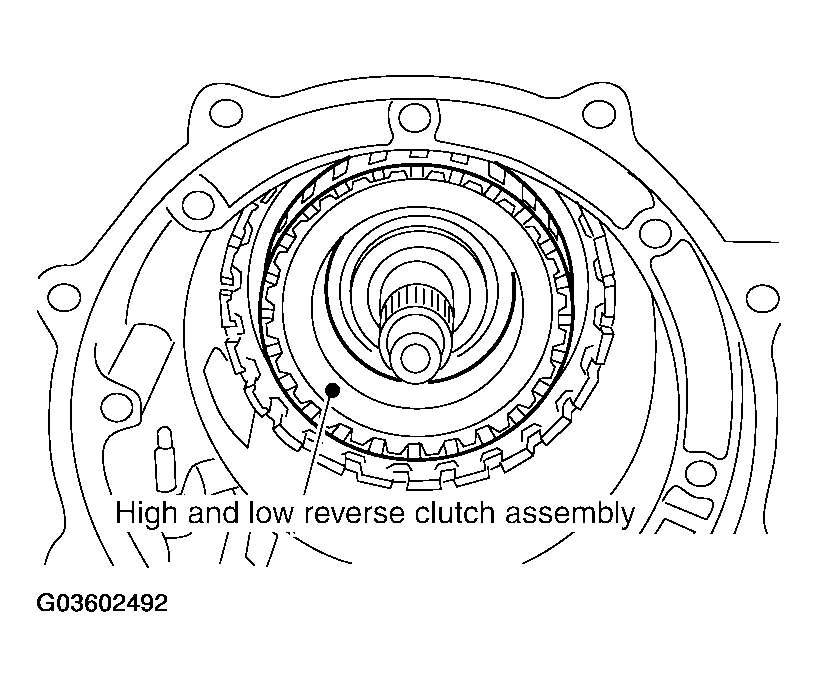

Remove high and low reverse clutch assembly from direct clutch assembly.
CAUTION: Make sure that needle bearing is installed to the high and low reverse clutch assembly edge surface.

Fig 23: Removing High And Low Reverse Clutch Assembly From Direct Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

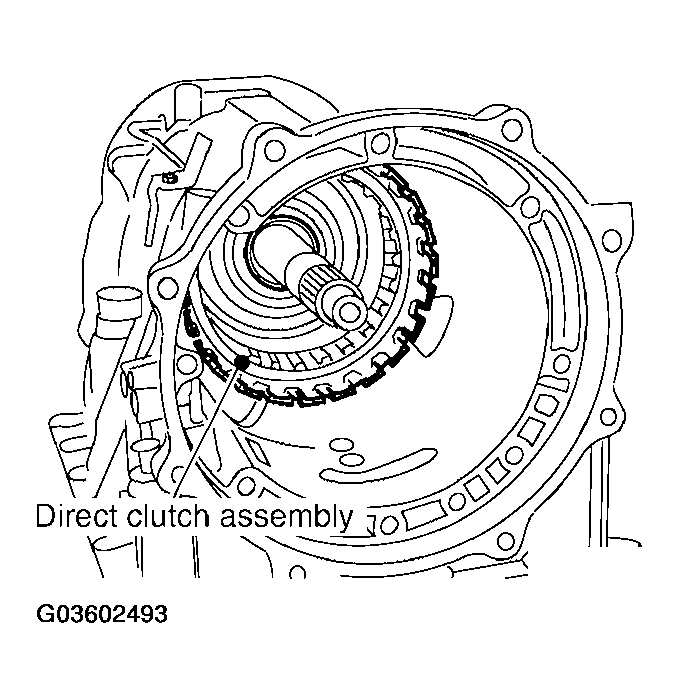

Remove direct clutch assembly from reverse brake.

Fig 24: Removing Direct Clutch Assembly From Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.

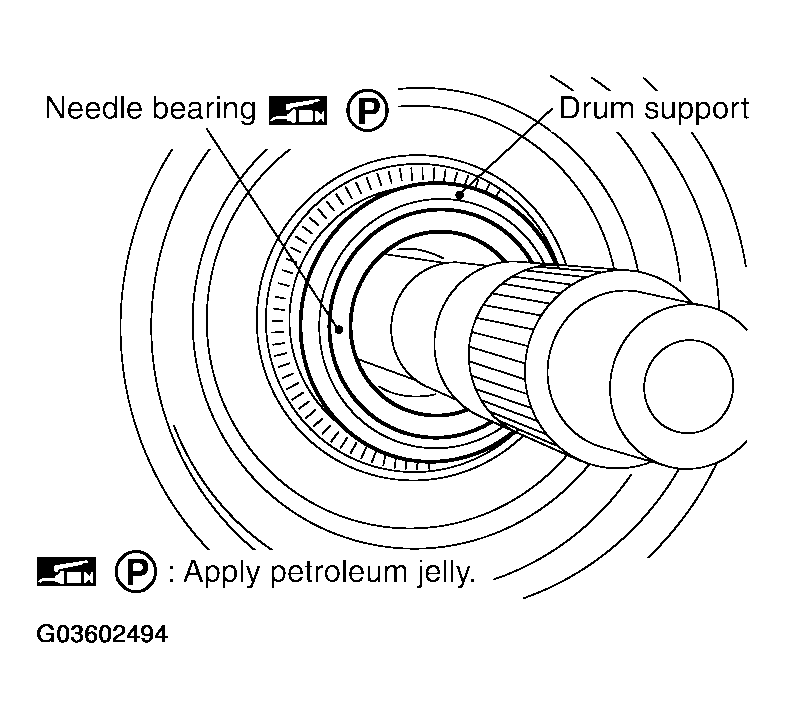

Remove needle bearing from drum support edge surface.

Fig 25: Removing Needle Bearing From Drum Support Edge Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

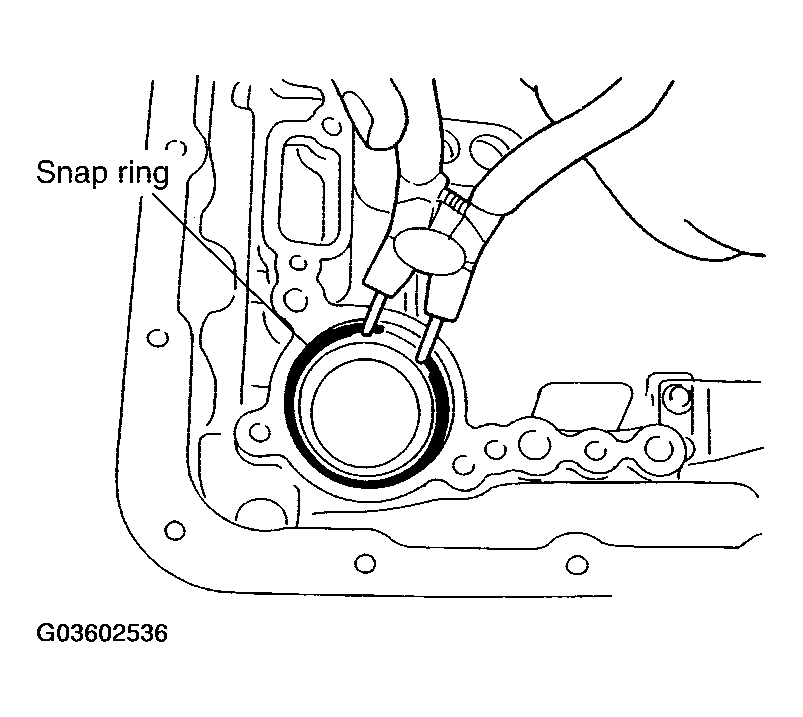

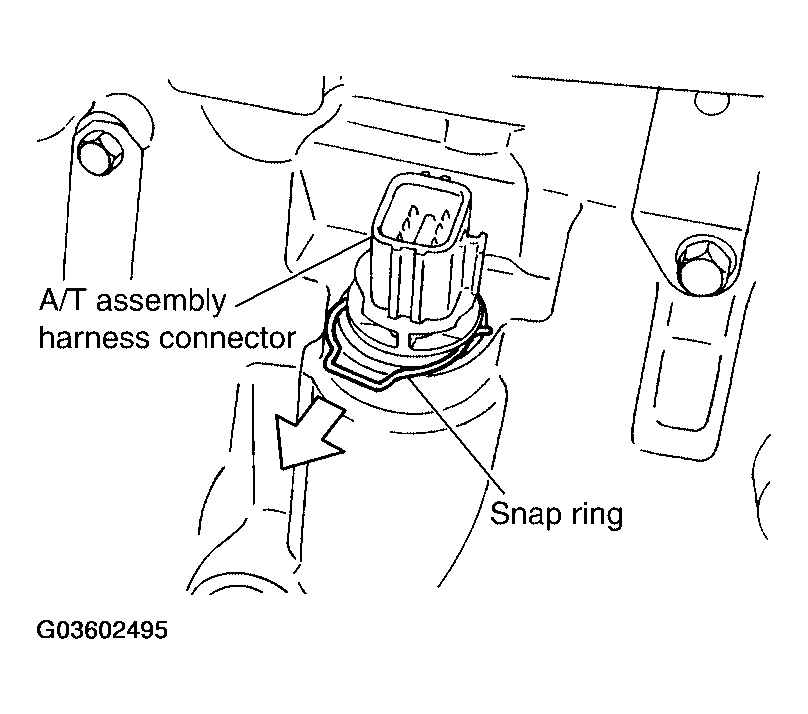

Remove snap ring from A/T assembly harness connector.

Fig 26: Removing Snap Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Push A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

Fig 27: Pushing A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan and oil pan gasket.

Fig 28: Removing Oil Pan And Oil Pan Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
- If frictional material is detected, perform A/T fluid cooler cleaning. Refer to " A/T FLUID COOLER CLEANING PROCEDURE " .

  Fig 29: Checking A/T Fluid Condition
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove magnets from oil pan.

Fig 30: Removing Magnets From Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.

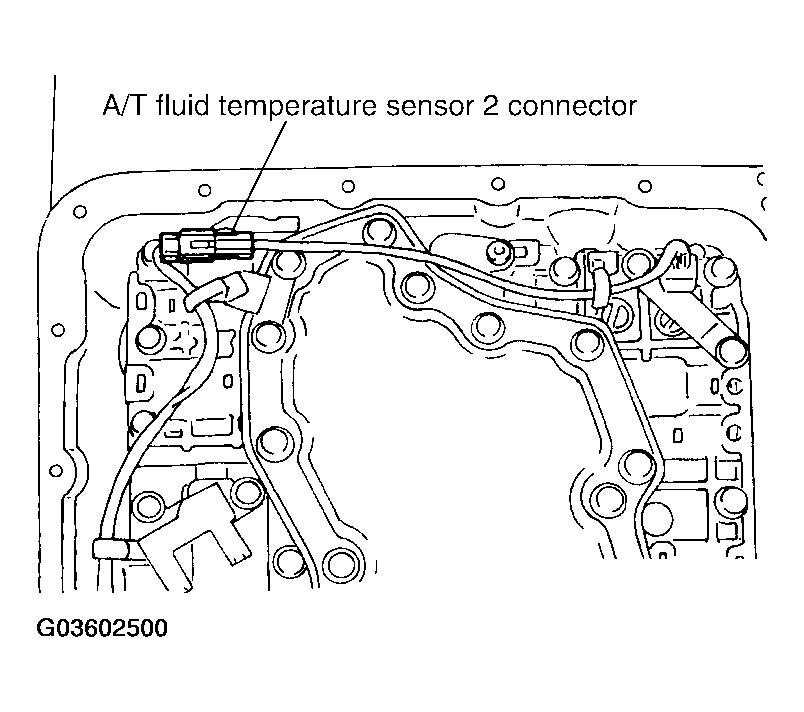

Disconnect A/T fluid temperature sensor 2 connector.
CAUTION: Be careful not to damage connector.

Fig 31: Disconnecting A/T Fluid Temperature Sensor 2 Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

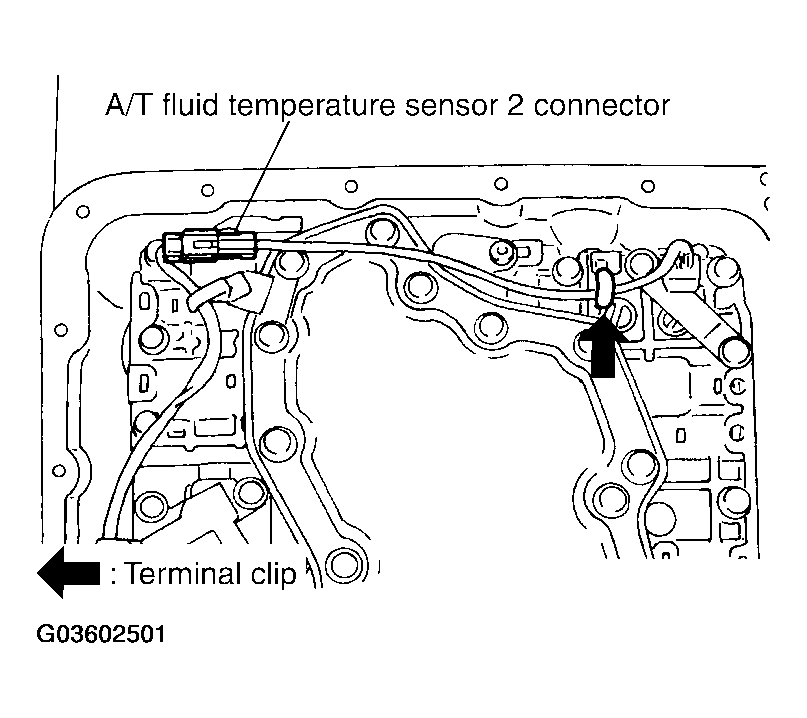

Straighten terminal clip to free A/T fluid temperature sensor 2 harness.

Fig 32: Straightening Terminal Clip To Free A/T Fluid Temperature Sensor 2 Harness
Courtesy of NISSAN MOTOR CO., U.S.A.

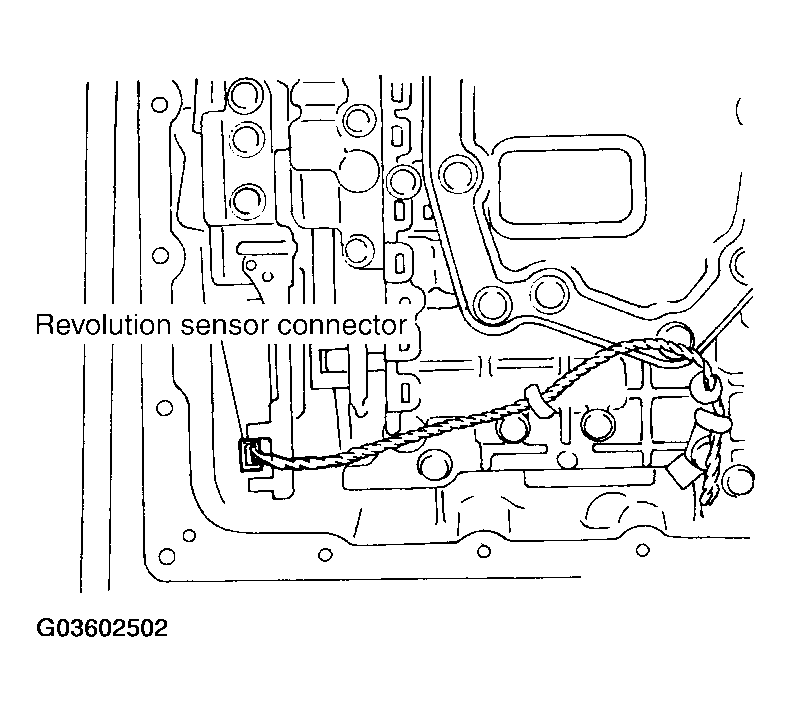

Disconnect revolution sensor connector.
CAUTION: Be careful not to damage connector.

Fig 33: Disconnecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

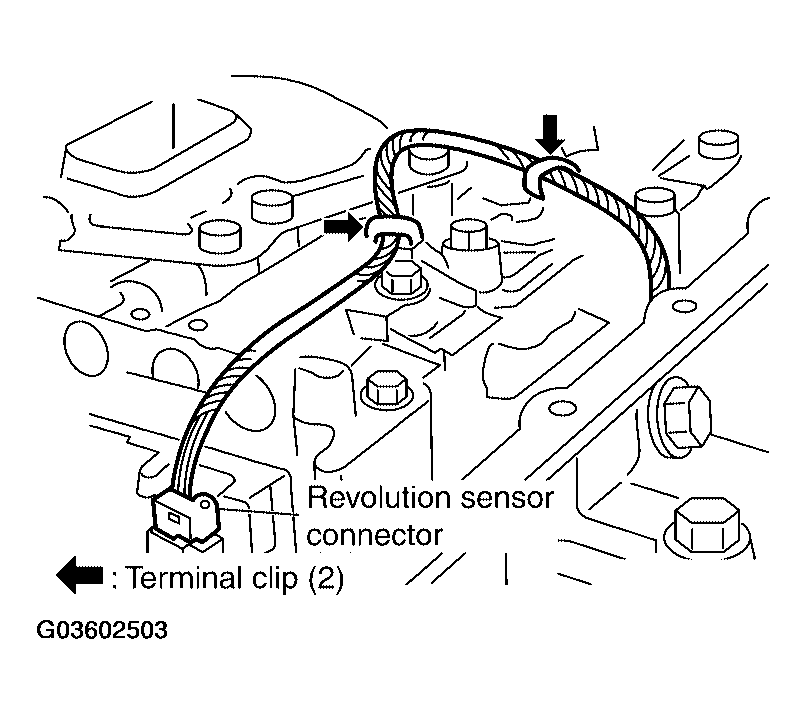

Straighten terminal clips to free revolution sensor harness.

Fig 34: Straightening Terminal Clips To Free Revolution Sensor Harness
Courtesy of NISSAN MOTOR CO., U.S.A.

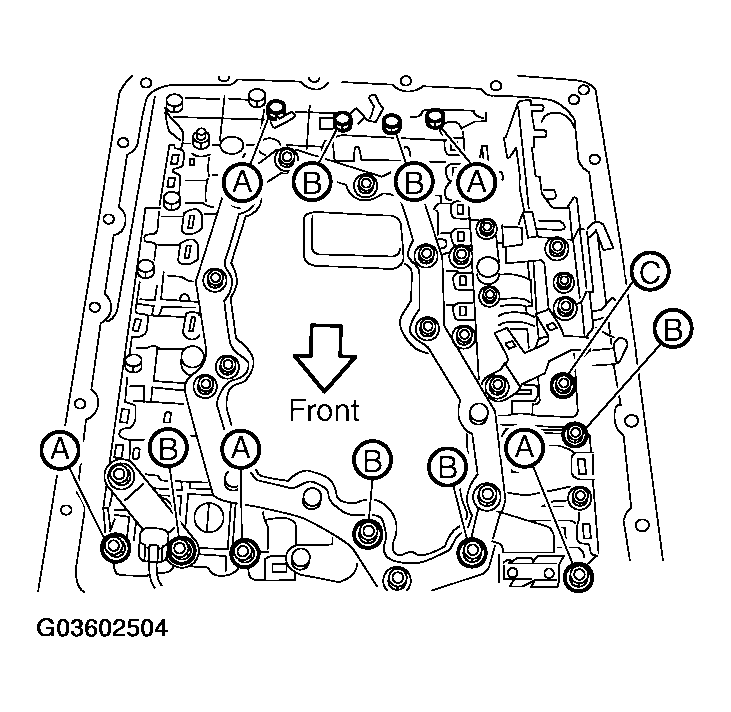

Remove bolts A, B and C from control valve with TCM.

CONTROL VALVE BOLTS SPECIFICATIONS

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Fig 35: Removing Bolts A, B And C From Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

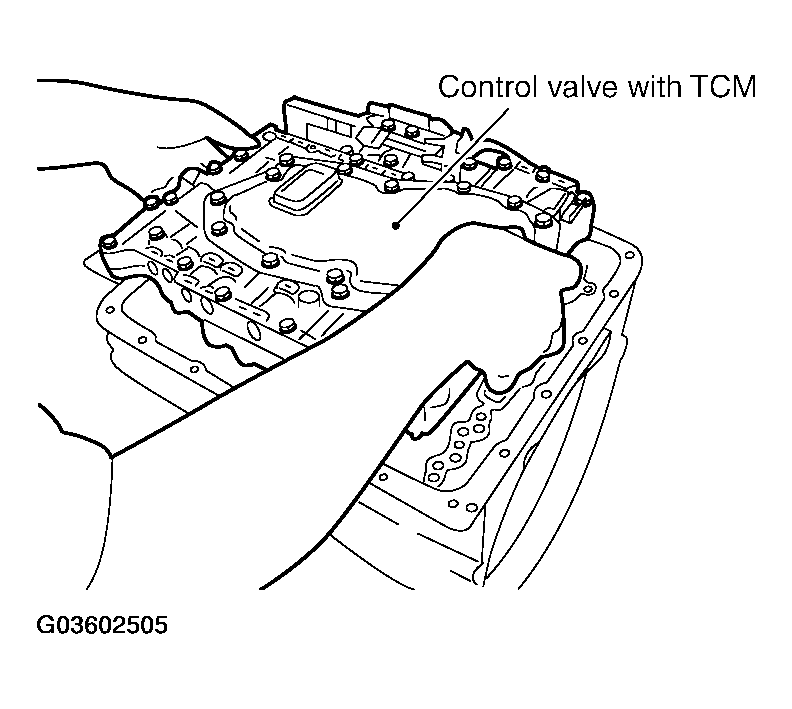

Remove control valve with TCM from transmission case.
CAUTION: When removing, be careful with transmission assembly terminal connector and the manual valve notch and manual plate height.Remove it vertically.

Fig 36: Removing Control Valve With TCM From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

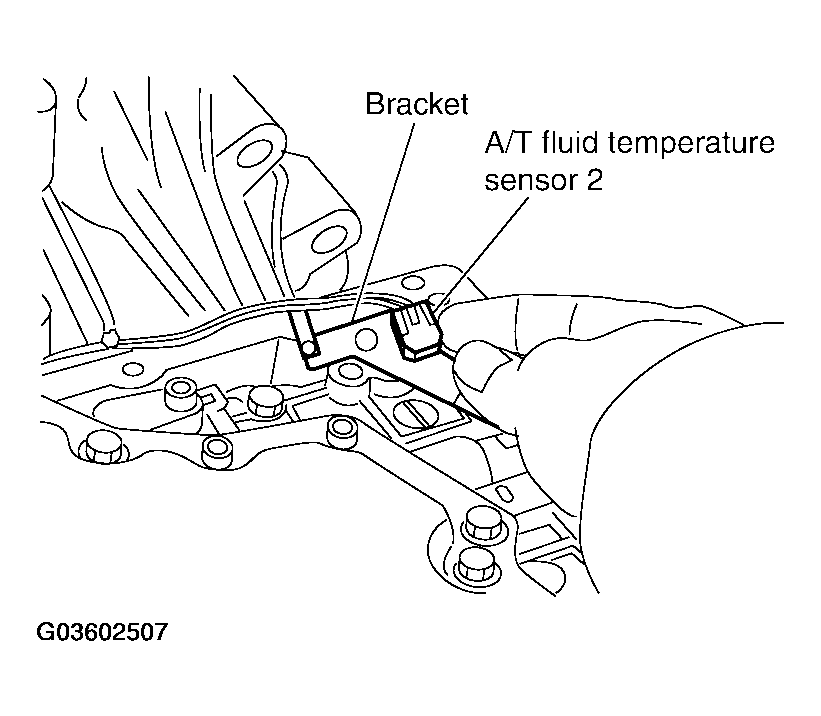

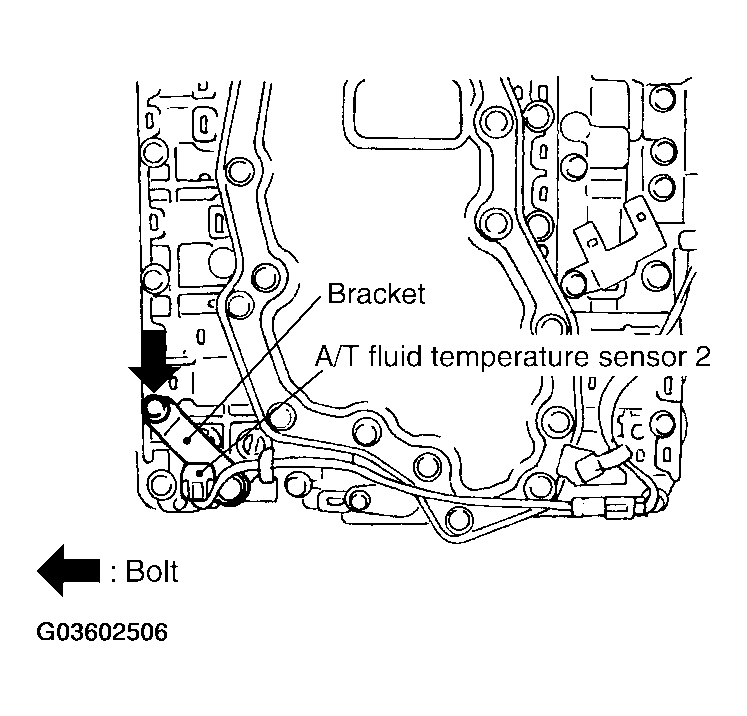

Remove A/T fluid temperature sensor 2 with bracket from control valve with TCM.

Fig 37: Removing A/T Fluid Temperature Sensor 2 With Bracket From Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bracket from A/T fluid temperature sensor 2.

Fig 38: Removing Bracket From A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from A/T assembly harness connector.

Fig 39: Removing O-Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to the following procedures.
1. 2WD models

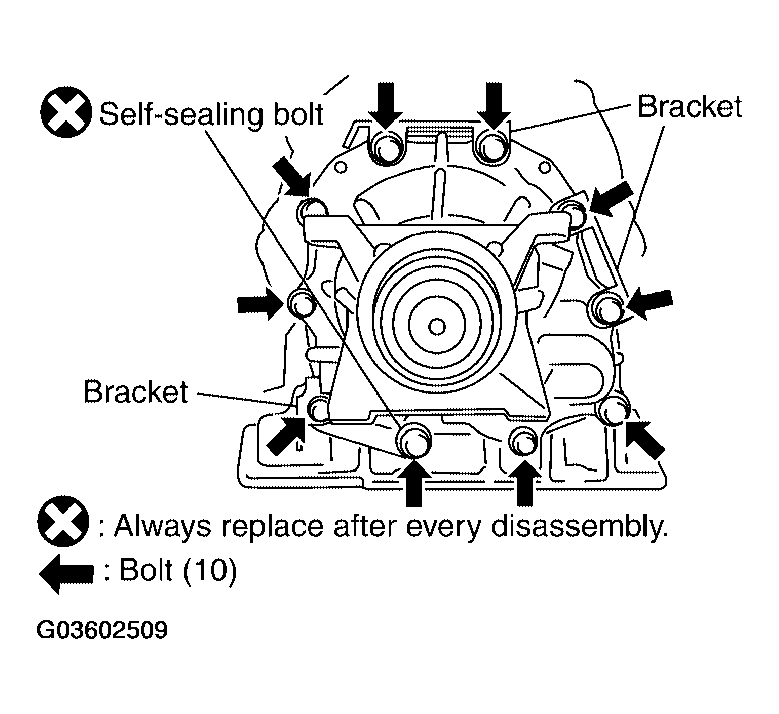

  1. Remove tightening bolts for rear extension assembly and transmission case.
  2. Remove bracket.

    Fig 40: Removing Tightening Bolts For Rear Extension Assembly And Transmission Case - 2WD Model
    Courtesy of NISSAN MOTOR CO., U.S.A.

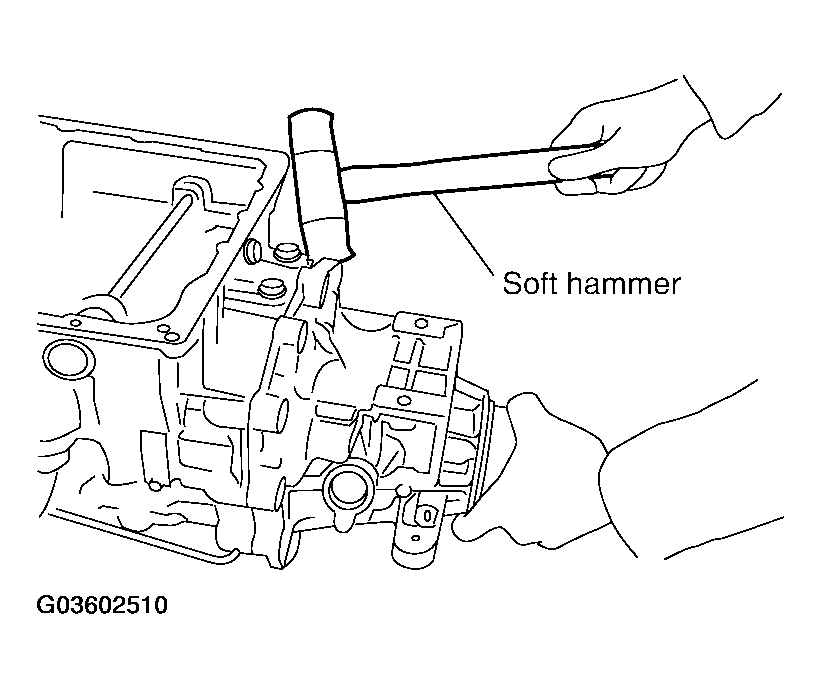

  3. Tap rear extension assembly with soft hammer.

    Fig 41: Tapping Rear Extension Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.

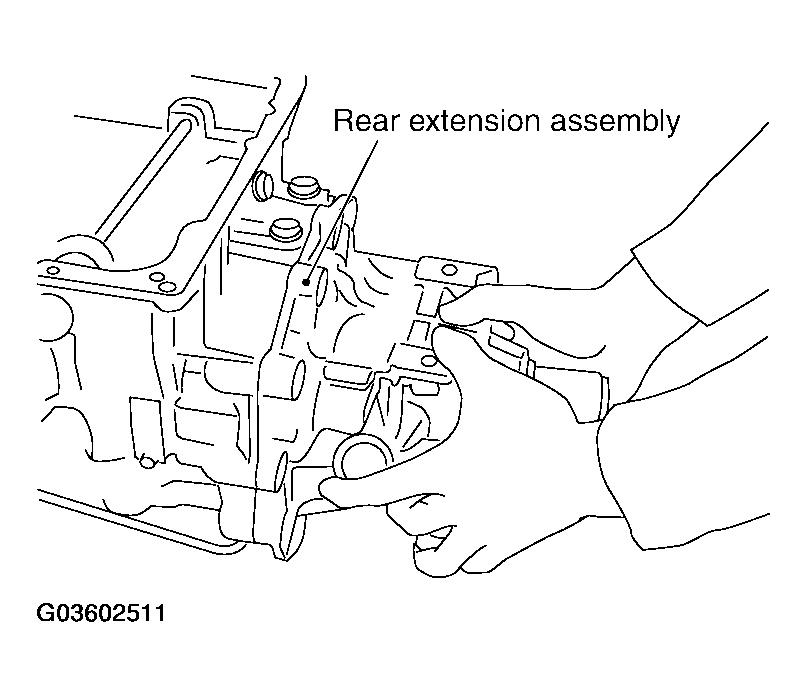

  4. Remove rear extension assembly from transmission case. (With needle bearing)

    Fig 42: Removing Rear Extension Assembly From Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. 4WD models

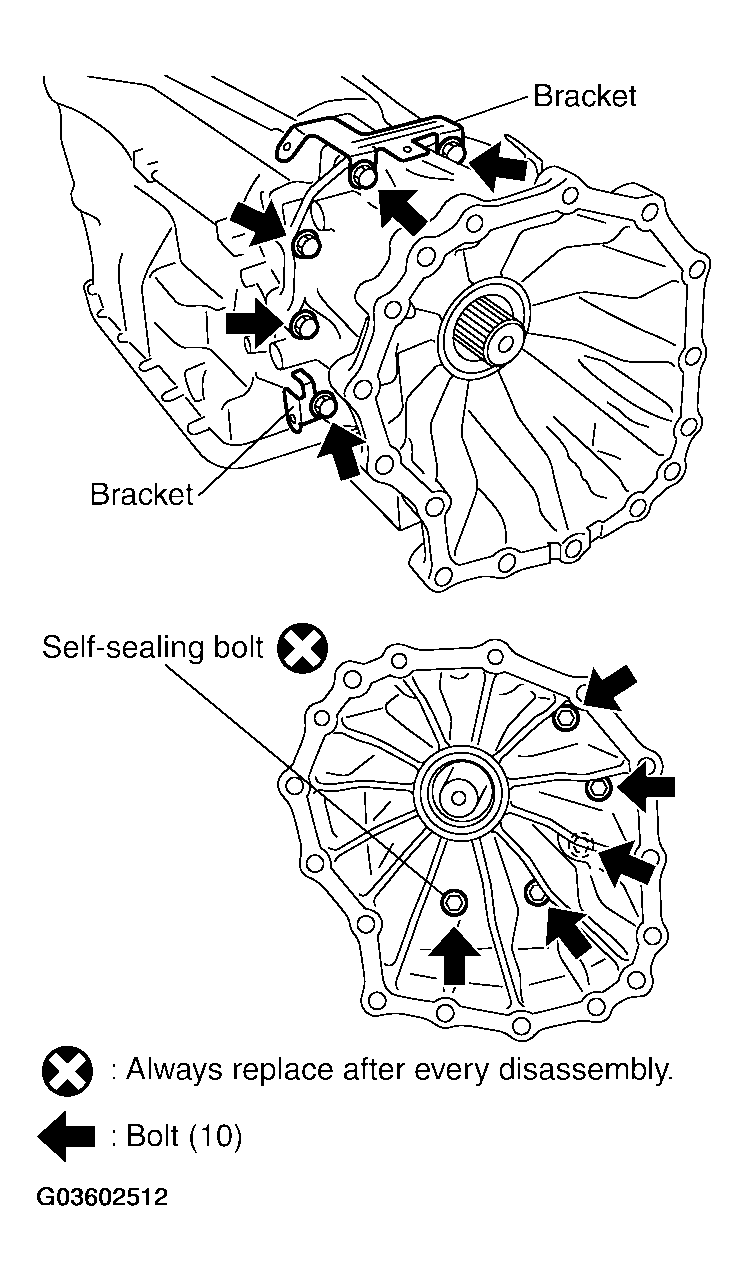

  1. Remove tightening bolts for adapter case assembly and transmission case.
  2. Remove bracket.

    Fig 43: Removing Tightening Bolts For Adapter Case Assembly And Transmission Case - 4WD Models
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Tap adapter case assembly with soft hammer.

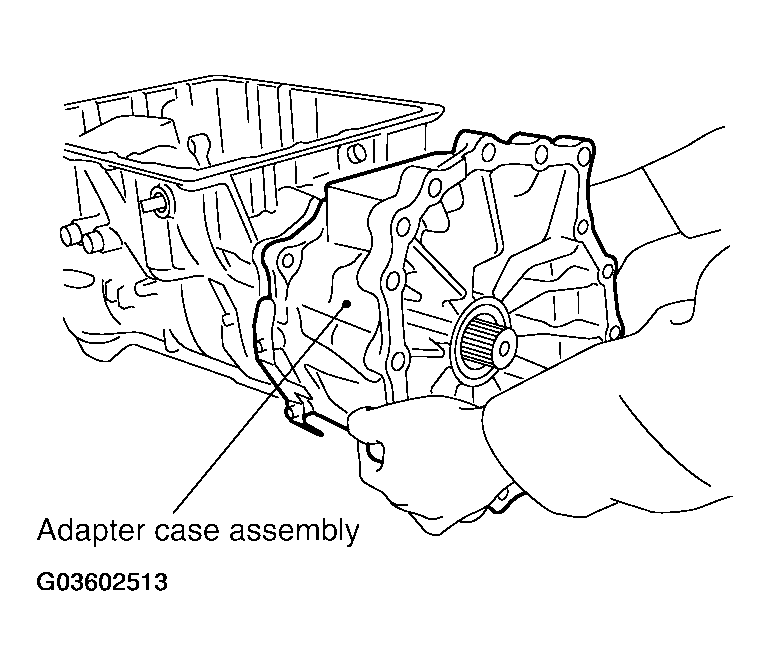

  4. Remove adapter case assembly from transmission case. (With needle bearing)

    Fig 44: Removing Adapter Case Assembly From Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.

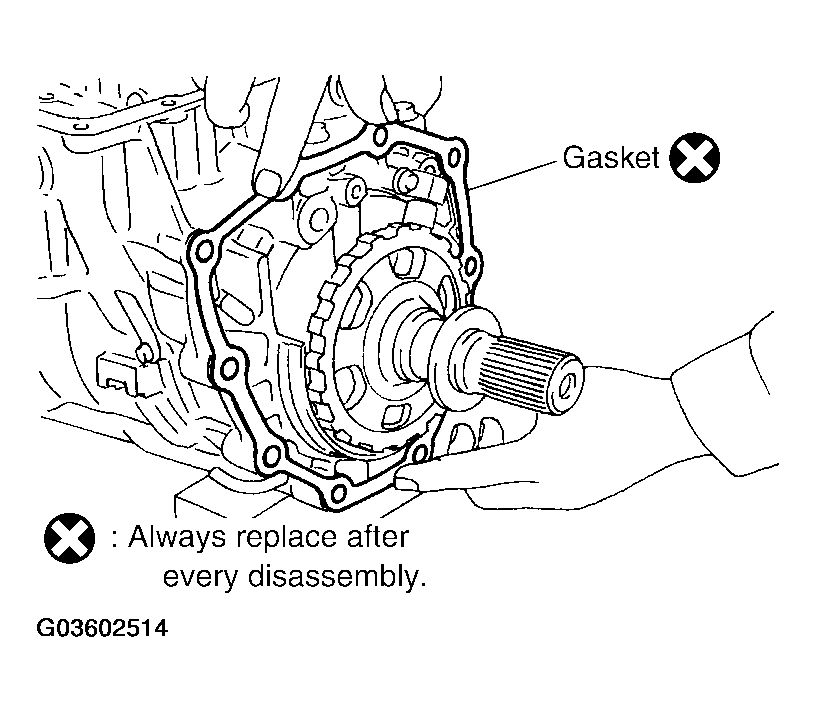

  5. Remove gasket from transmission case.

    Fig 45: Removing Gasket From Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.

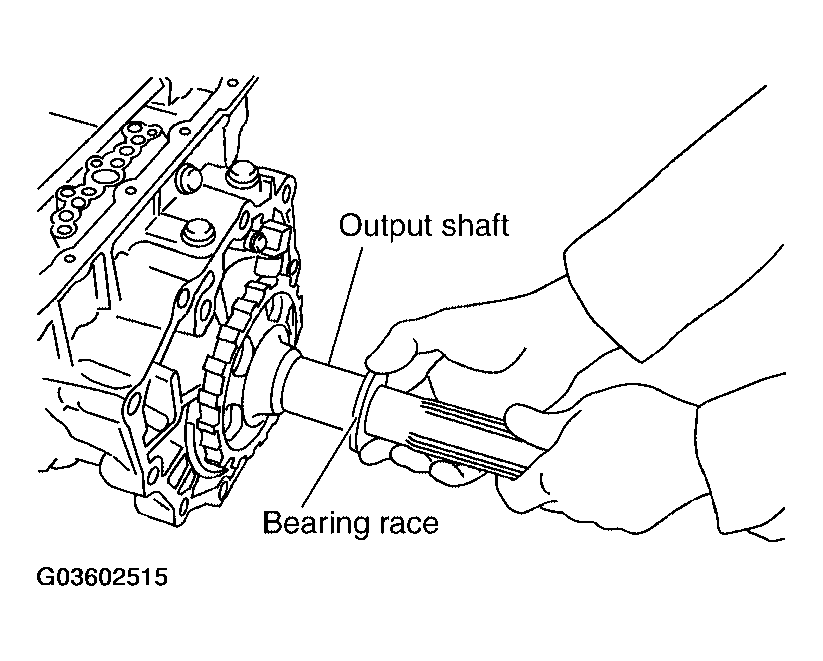

Remove bearing race from output shaft.

Fig 46: Removing Bearing Race From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

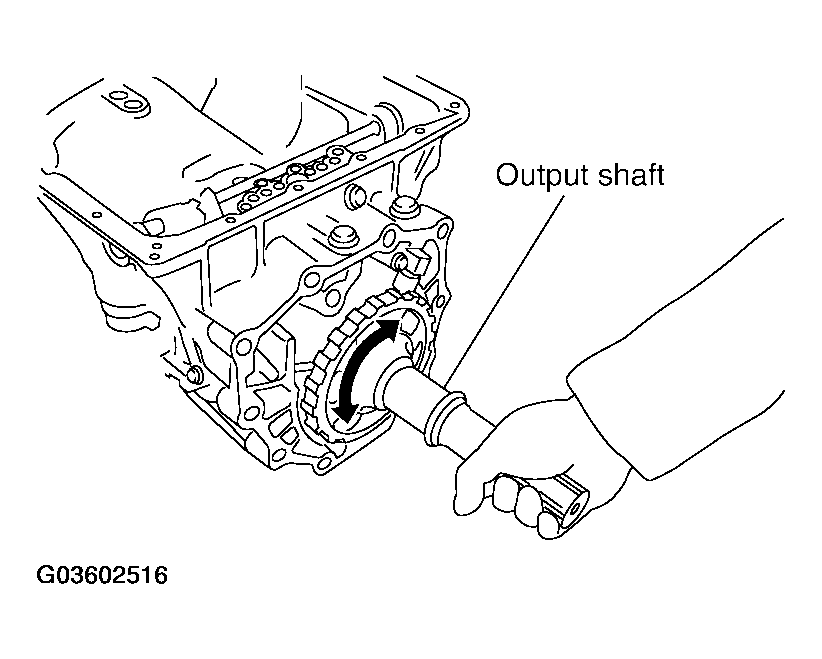

Remove output shaft from transmission case by rotating left/right.

Fig 47: Removing Output Shaft From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking gear from output shaft.

Fig 48: Removing Parking Gear From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

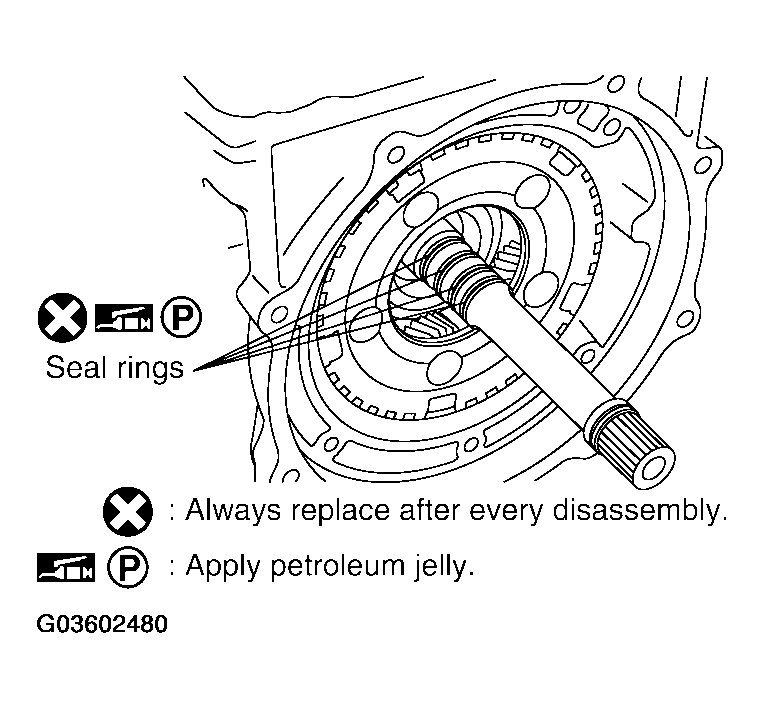

Remove seal rings from output shaft.

Fig 49: Removing Seal Rings From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

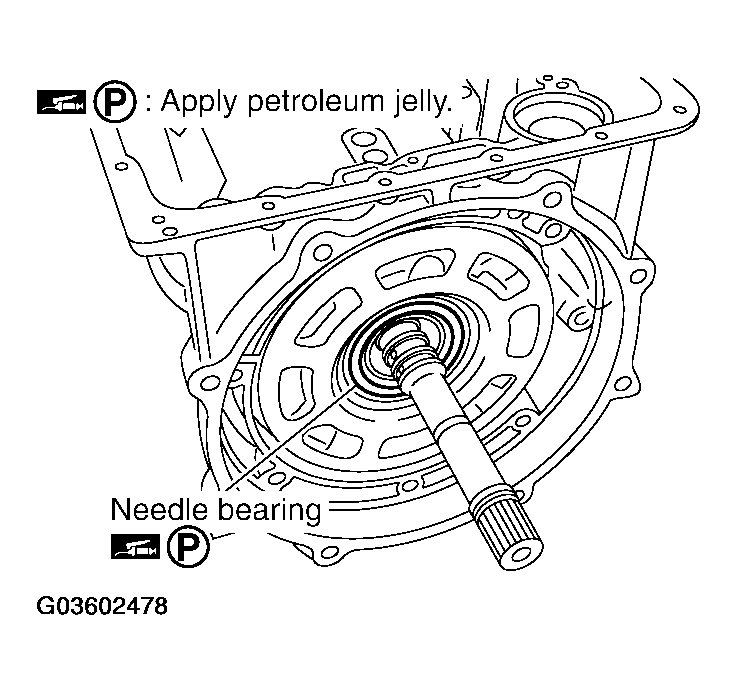

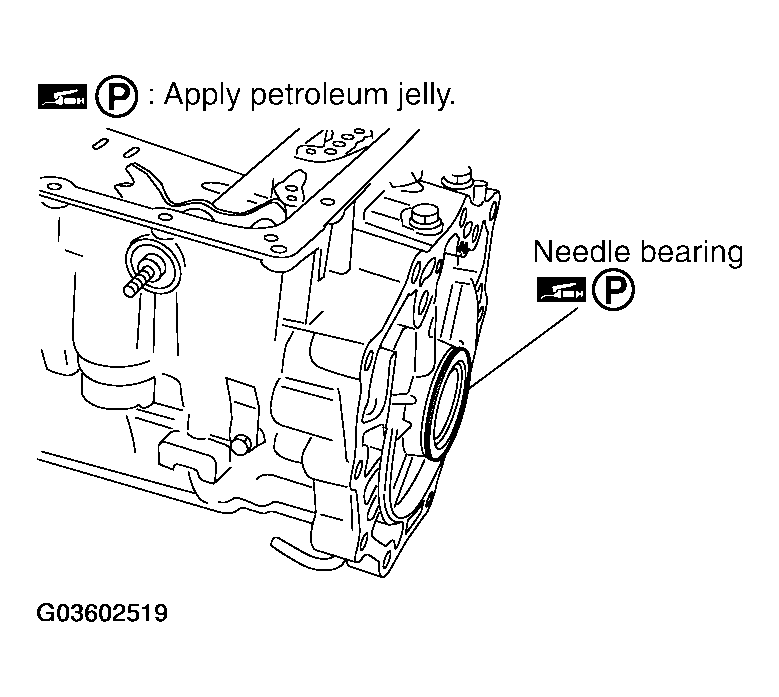

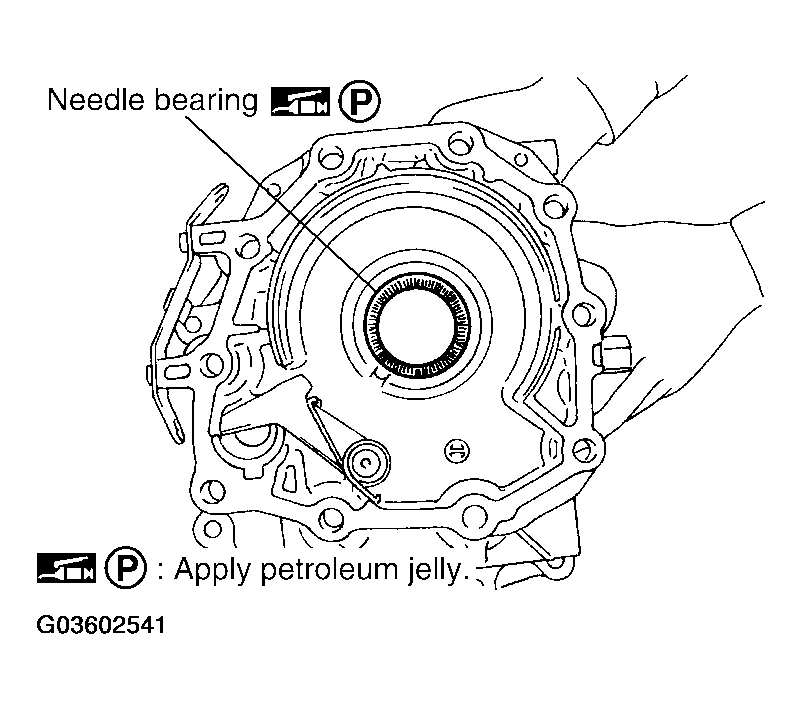

Remove needle bearing from transmission case.

Fig 50: Removing Needle Bearing From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

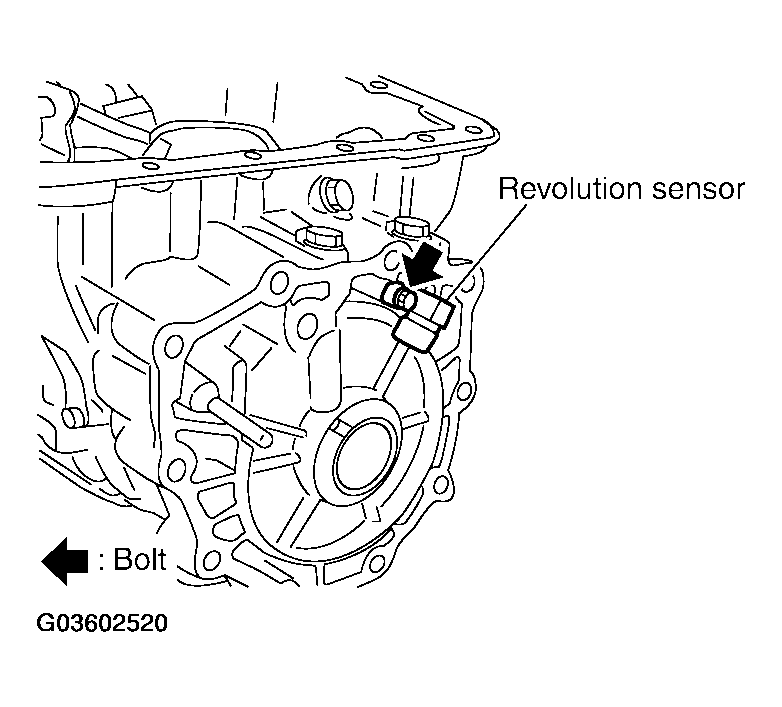

Remove revolution sensor from transmission case.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Be careful not to damage harness with the edge of case.
- Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.

  Fig 51: Removing Revolution Sensor From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

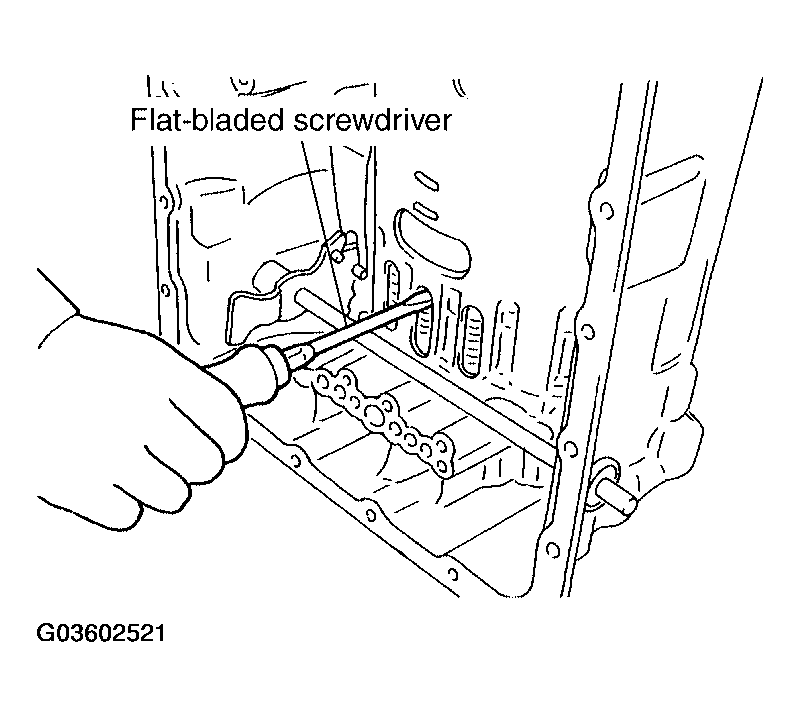

Remove reverse brake snap ring (fixing plate) using 2 flatbladed screwdrivers.
NOTE: Press out snap ring from the transmission case oil pan side gap using a flat-bladed screwdriver, and remove it using another screwdriver.
Remove reverse brake retaining plate from transmission case.

Fig 52: Removing Reverse Brake Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove N-spring from transmission case.

Fig 53: Removing N-Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

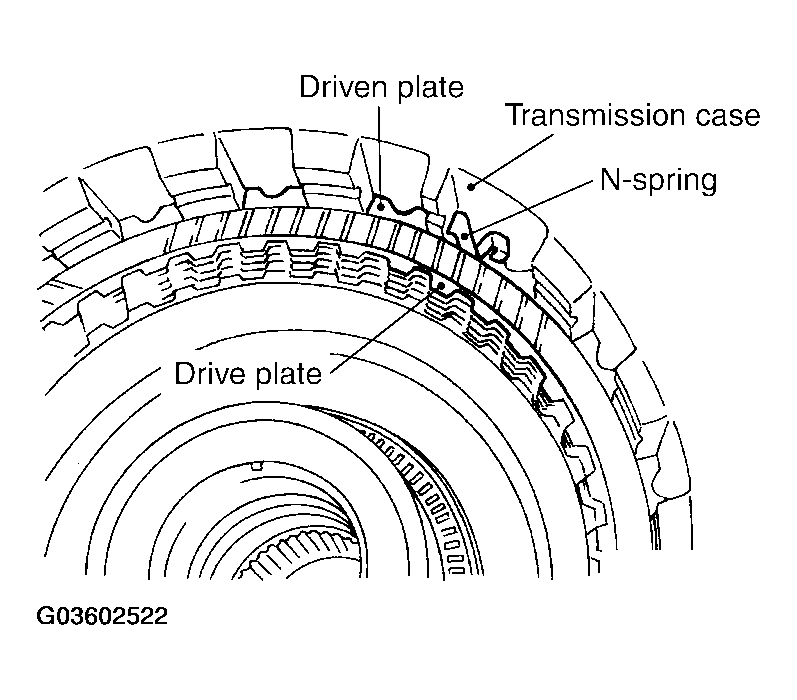

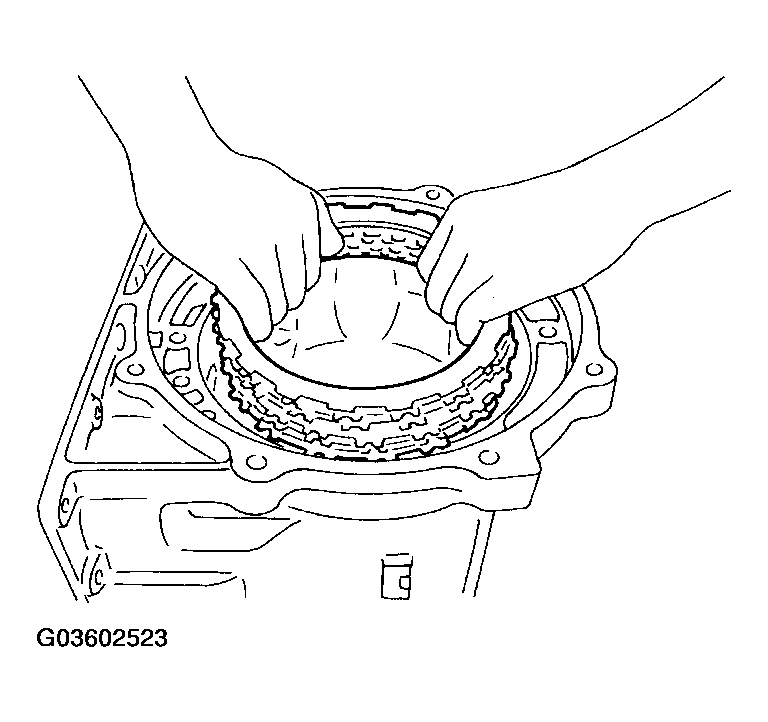

Remove reverse brake drive plates, driven plates and dish plate from transmission case.

Fig 54: Removing Reverse Brake Drive Plates, Driven Plates And Dish Plate From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

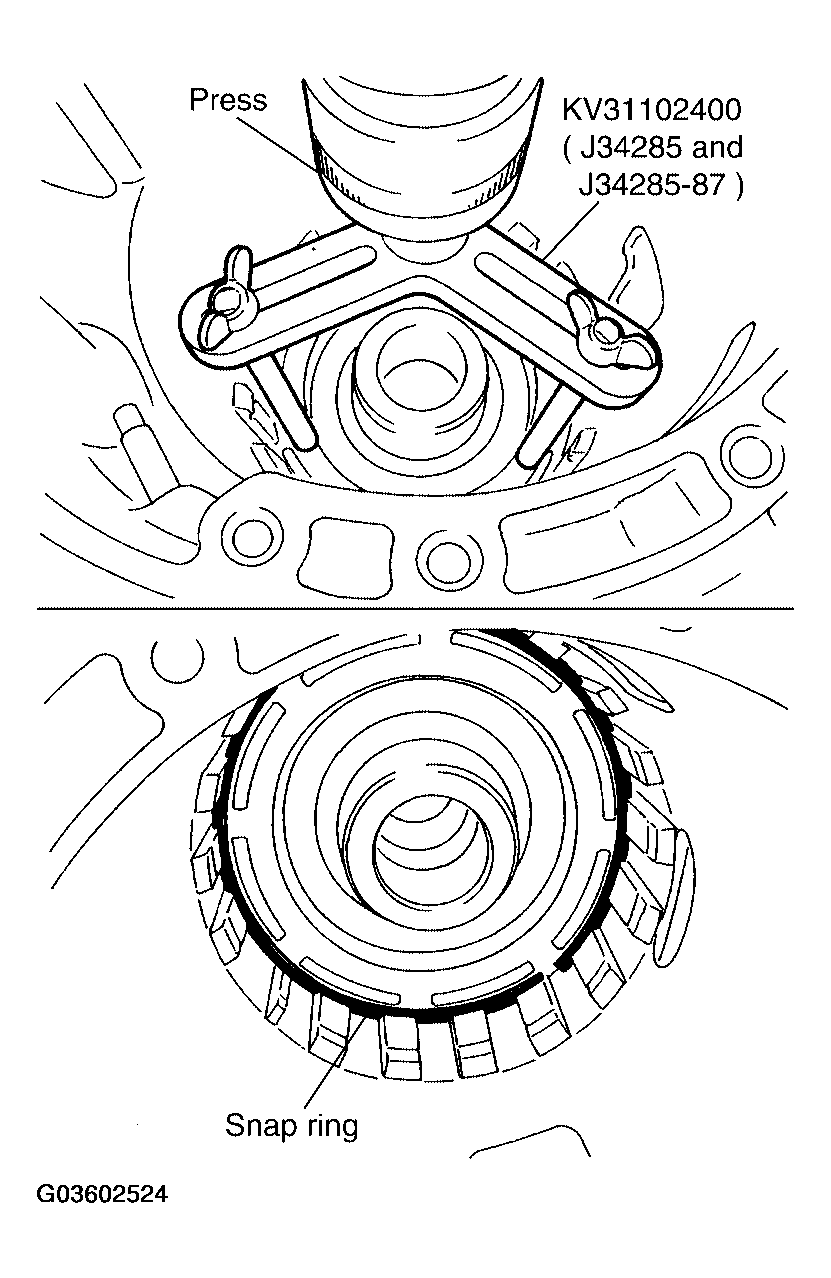

Remove snap ring (fixing spring retainer) from transmission case while compressing return spring, using Tool.
Tool number: KV31102400 (J-34285, J-34285-87)

Fig 55: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

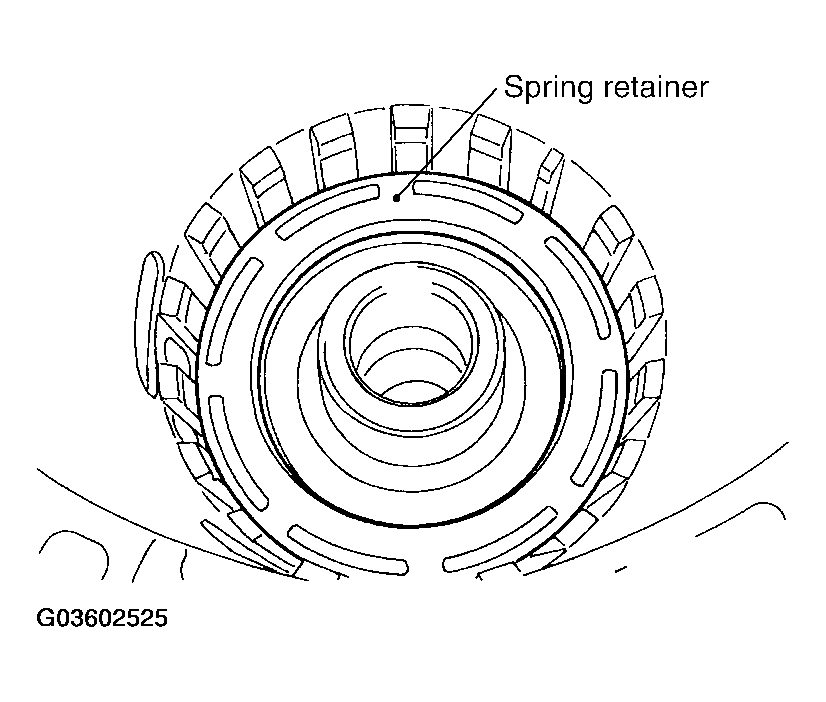

Remove spring retainer and return spring from transmission case.

Fig 56: Removing Spring Retainer And Return Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

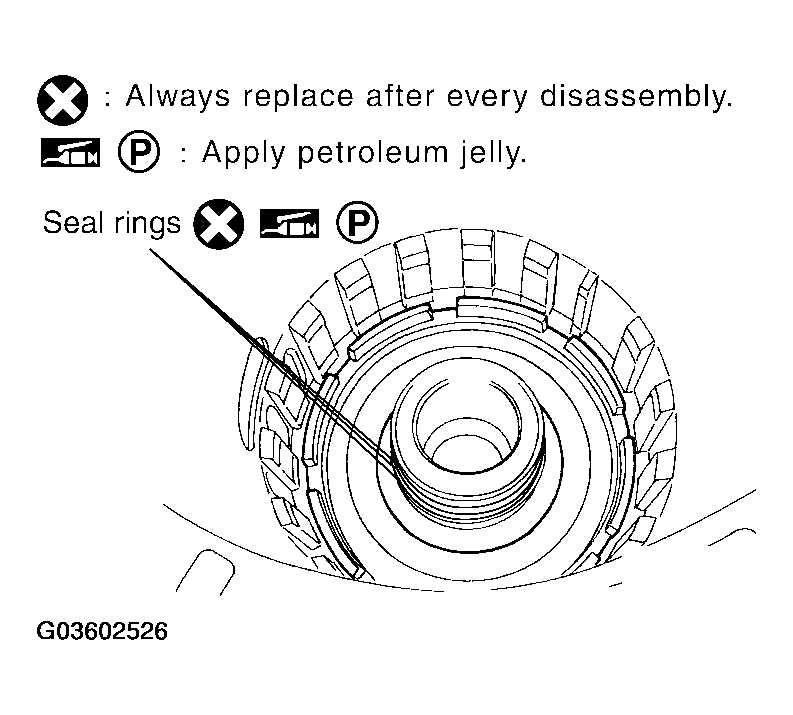

Remove seal rings from drum support.

Fig 57: Removing Seal Rings From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from drum support edge surface.

Fig 58: Removing Needle Bearing From Drum Support Edge Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

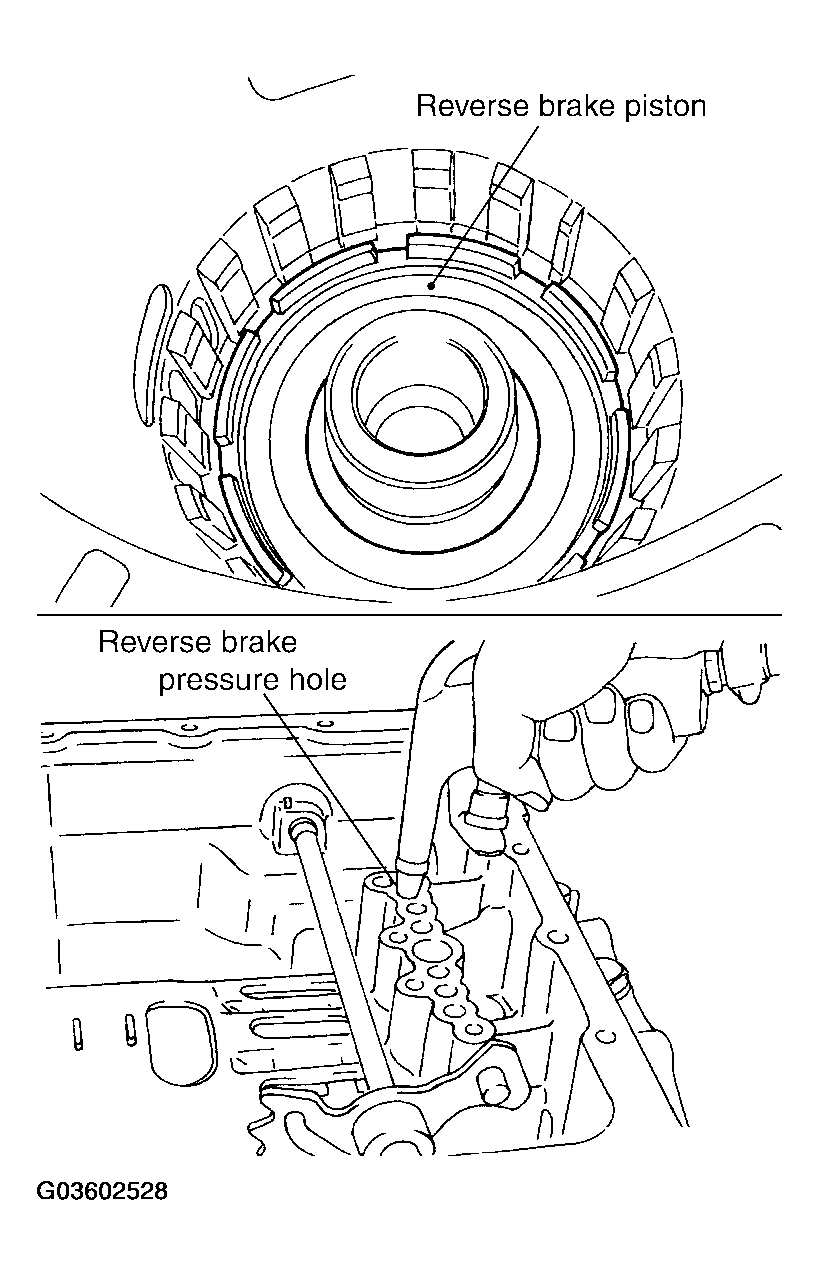

Remove reverse brake piston from transmission case with compressed air. Refer to "OIL CHANNEL ".
CAUTION: Care should be taken not to abruptly blow air. It makes pistons incline, as the result, it becomes hard to disassemble the pistons.

Fig 59: Removing Reverse Brake Piston From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-rings from reverse brake piston.

Fig 60: Removing D-Rings From Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

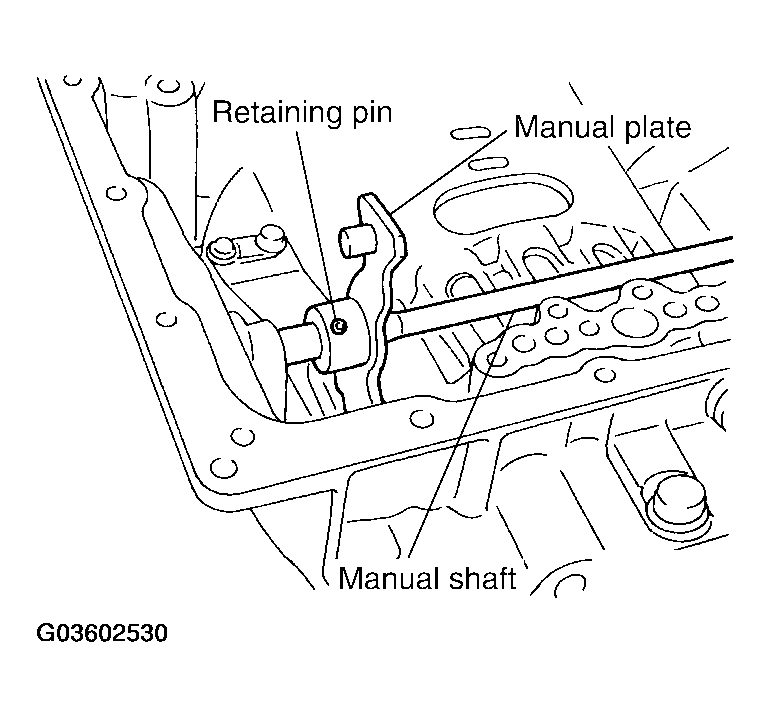

Use a pin punch (4mm dia. commercial service tool) to knock out retaining pin.

Fig 61: Removing Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft retaining pin with pliers.

Fig 62: Removing Manual Shaft Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

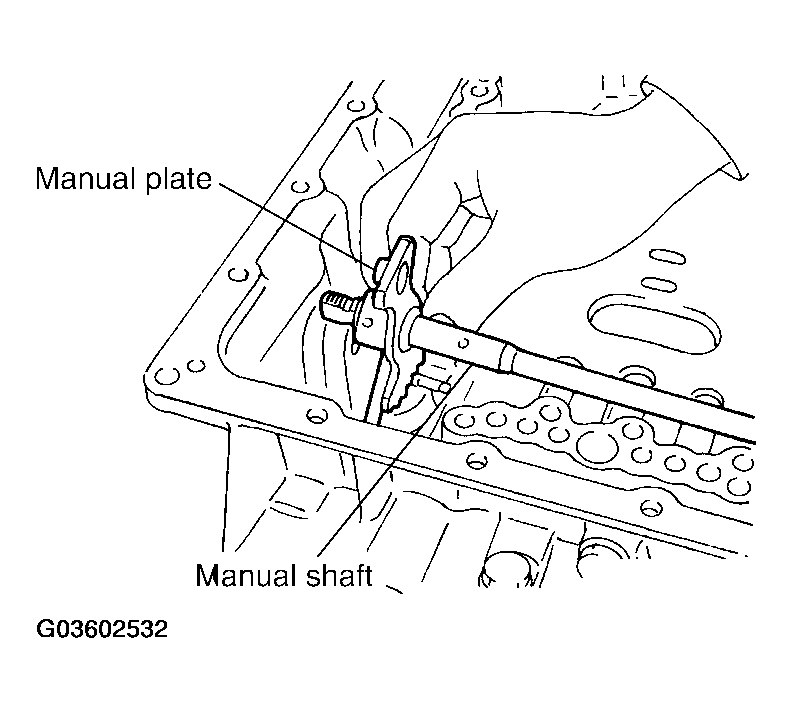

Remove manual plate (with parking rod) from manual shaft.

Fig 63: Removing Manual Plate (With Parking Rod) From Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking rod from manual plate.
Remove manual shaft from transmission case.

Fig 64: Removing Parking Rod From Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft oil seals using a flat-bladed screwdriver.
CAUTION: Be careful not to scratch transmission case.

Fig 65: Removing Manual Shaft Oil Seals
Courtesy of NISSAN MOTOR CO., U.S.A.

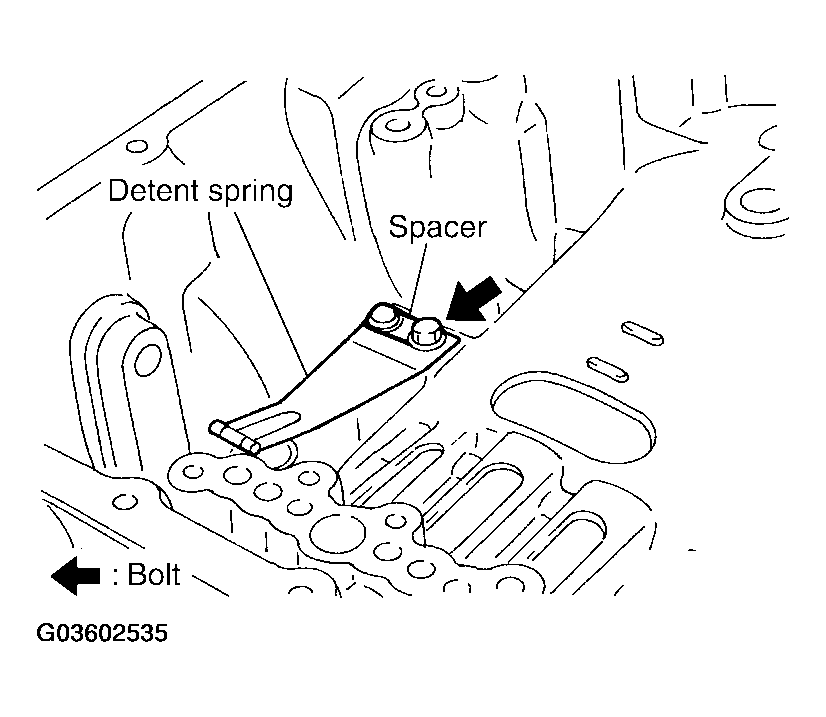

Remove detent spring and spacer from transmission case.

Fig 66: Removing Detent Spring And Spacer From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Using snap ring pliers, remove snap ring from transmission case.

Fig 67: Removing Snap Ring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

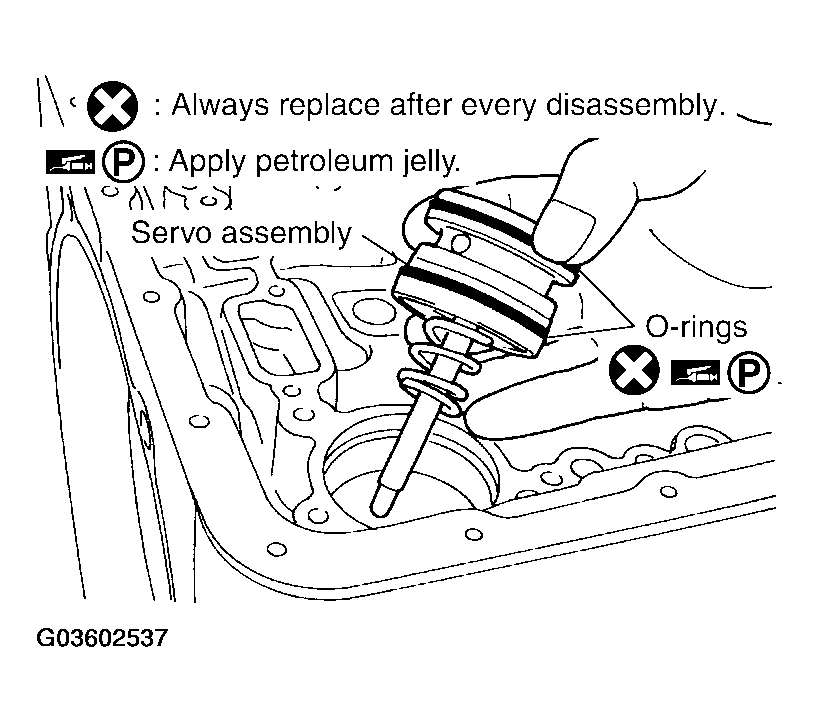

Remove servo assembly (with return spring) from transmission case.
Remove return spring from servo assembly.
Remove O-rings from servo assembly.

Fig 68: Removing Servo Assembly (With Return Spring) From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking actuator support from rear extension (2WD models) or adapter case (4WD models).

Fig 69: Removing Parking Actuator Support From Rear Extension (2WD Models) Or Adapter Case (4WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl (with return spring) and pawl shaft from rear extension (2WD models) or adapter case (4WD models).

Fig 70: Removing Parking Pawl (With Return Spring) And Pawl Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring from parking pawl.

Fig 71: Removing Return Spring From Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from rear extension (2WD models) or adapter case (4WD models).

Fig 72: Removing Needle Bearing From Rear Extension (2Wd Models) Or Adapter Case (4Wd Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

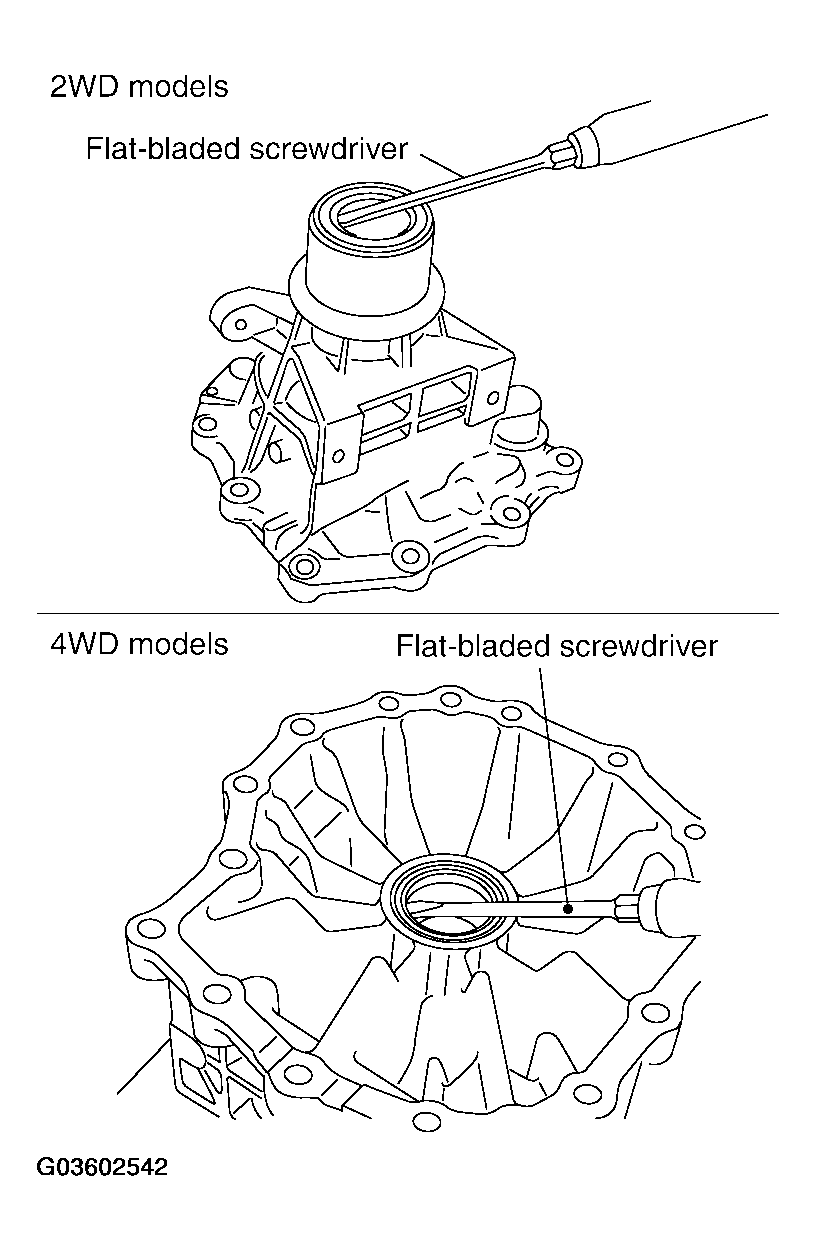

Remove rear oil seal from rear extension (2WD models) or adapter case (4WD models).
CAUTION: Be careful not to scratch rear extension (2WD models) or adapter case (4WD models).

Fig 73: Removing Rear Oil Seal From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
