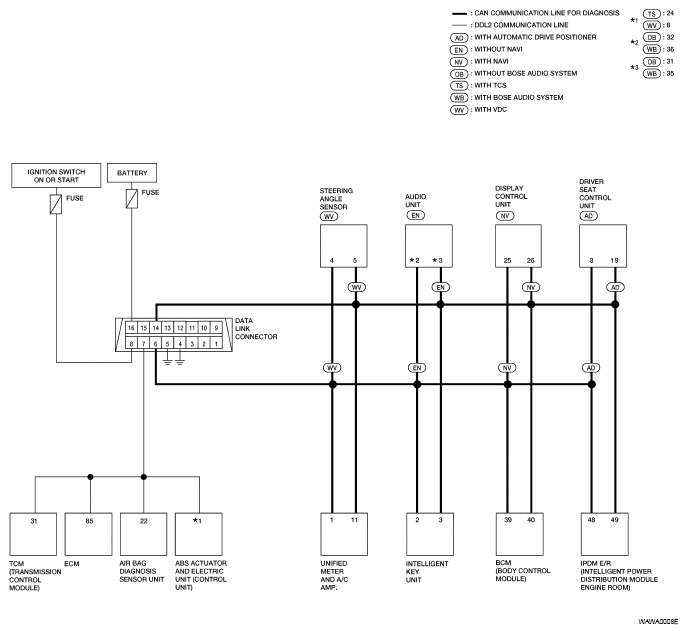

CONSULT-II Data Link Connector (DLC) Circuit: Notes

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
