WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

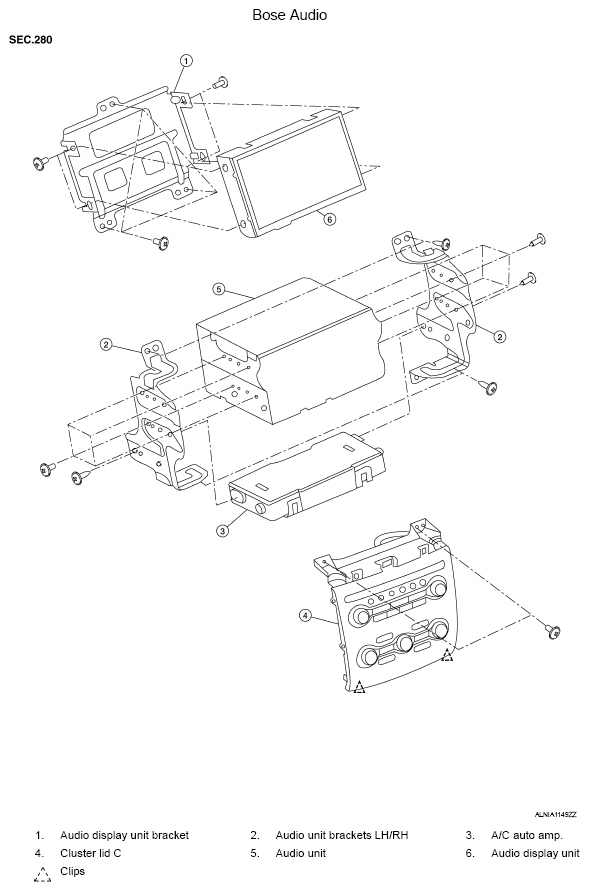

Fig 1: Identifying Audio Unit Components - Bose Audio
Courtesy of NISSAN MOTOR CO., U.S.A.

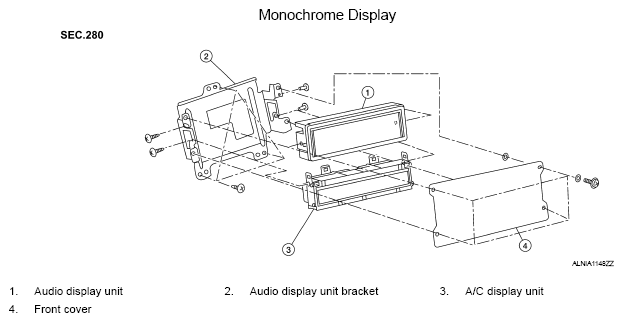

Fig 2: Identifying Audio Unit Components - Monochrome Audio
