Operation Example

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

In the following operation example, the combination of the status signals of the combination switch is replaced as follows: INPUT 1 - 5 to "1 - 5" and OUTPUT 1 - 5 to "A - E".

Example 1: When a switch (TURN RH switch) is turned ON

The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.

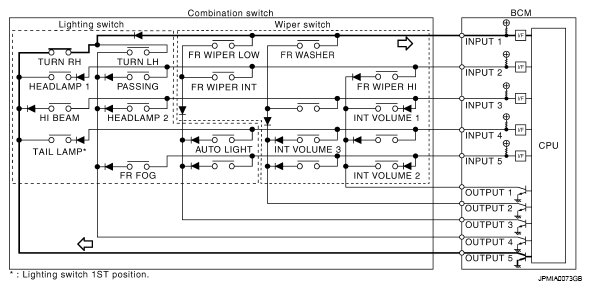

Fig 1: Combination Switch Circuit Diagram - Input 1 And Output 5 Is Formed When Turn RH Switch Is Turned On
Courtesy of NISSAN MOTOR CO., U.S.A.
BCM detects the combination switch status signal "1E" when the signal of OUTPUT 5 is input to INPUT 1.
BCM judges that the TURN RH switch is ON when the signal "1E" is detected.
Example 2: When some switches (TURN RH switch, FR WIPER LOW switch) are turned ON

Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON

The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the TURN RH switch and FR WIPER LOW switch are turned ON.

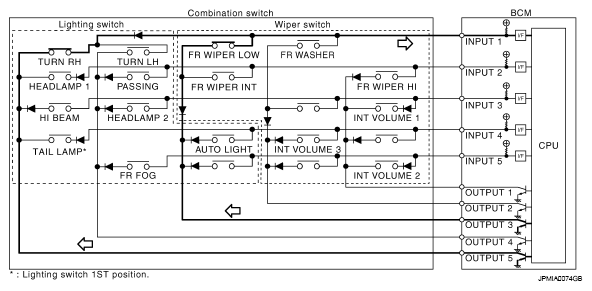

Fig 2: Combination Switch Circuit Diagram - Some Switches (Turn RH Switch, FR Wiper Low Switch) Are Turned On
Courtesy of NISSAN MOTOR CO., U.S.A.
BCM detects the combination switch status signal "1CE" when the signals of OUTPUT 3 and OUTPUT 5 are input to INPUT 1.
BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal "1CE" is detected.
