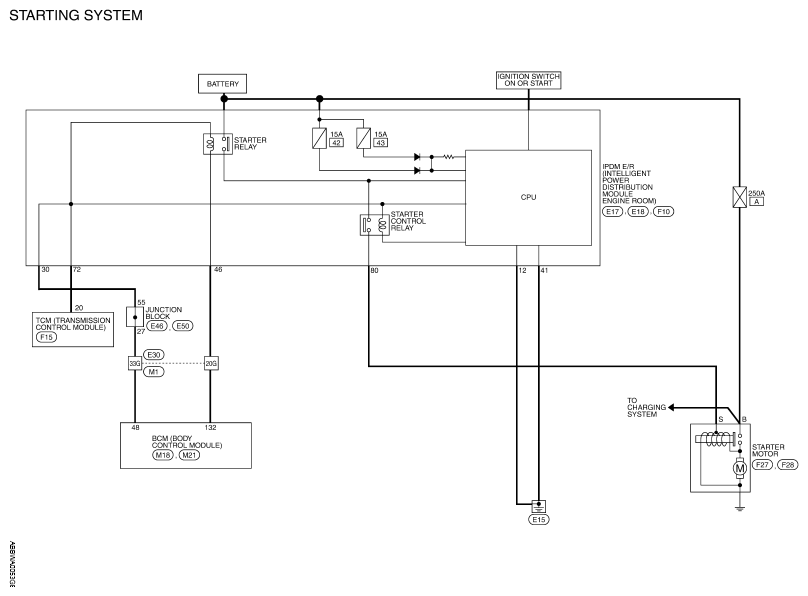

Fig 1: Starting System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

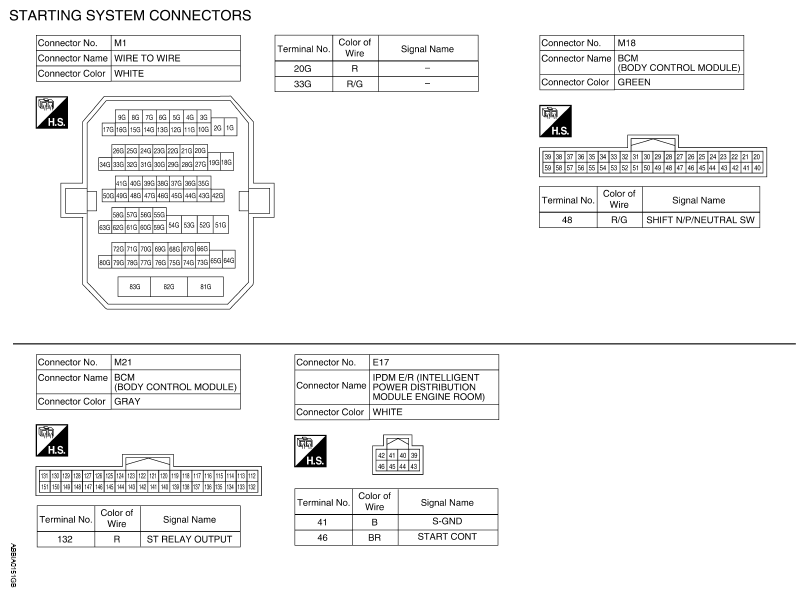

Fig 2: Identifying Starting System Connector Terminal (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

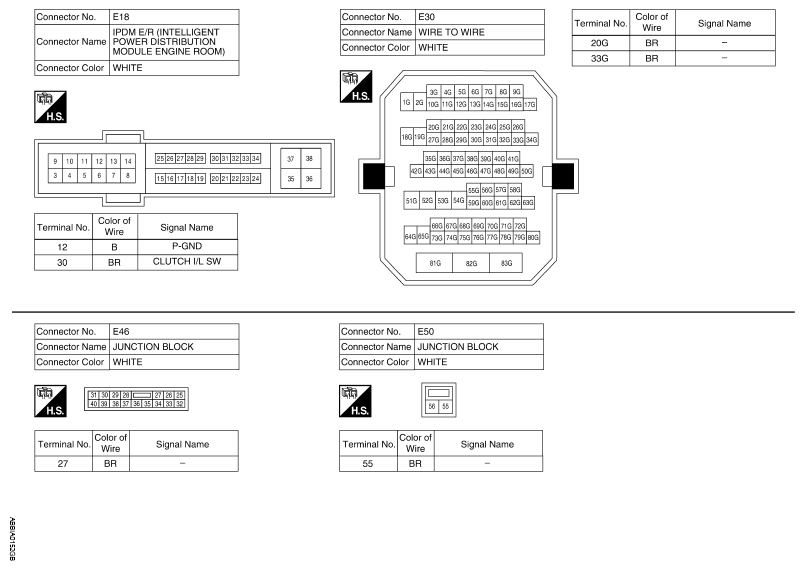

Fig 3: Identifying Starting System Connector Terminal (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

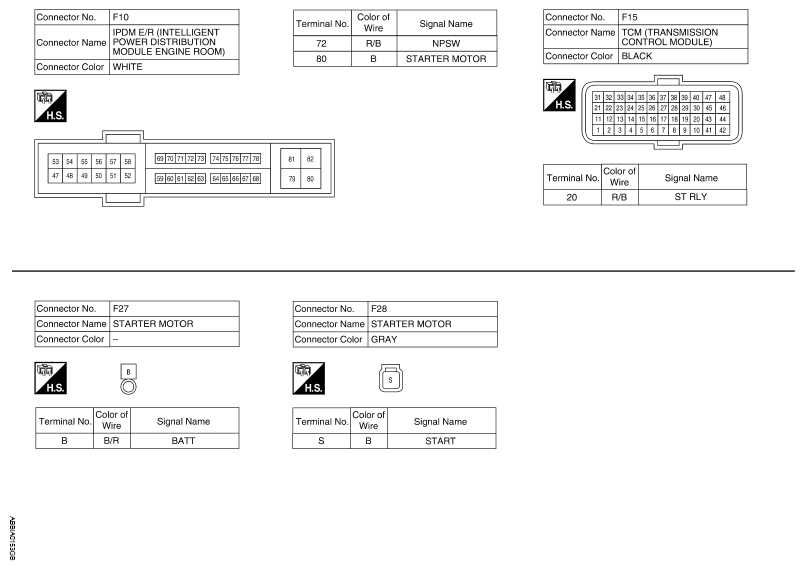

Fig 4: Identifying Starting System Connector Terminal (3 Of 3)
