Exploded View

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

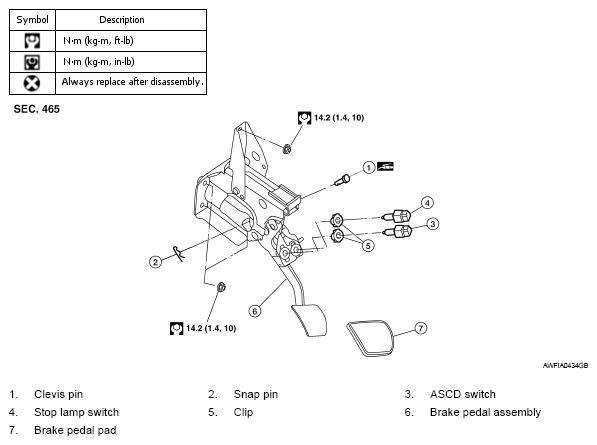

Fig 1: Exploded View Of Brake Pedal With Torque Specification
G05877330Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The clevis pin must be installed from the RH side as shown.
