With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

With "LIFT FR SW-UP, LIFT FR SW-DN" on the DATA MONITOR, operate the lifting switch (front) to check ON/OFF operation.

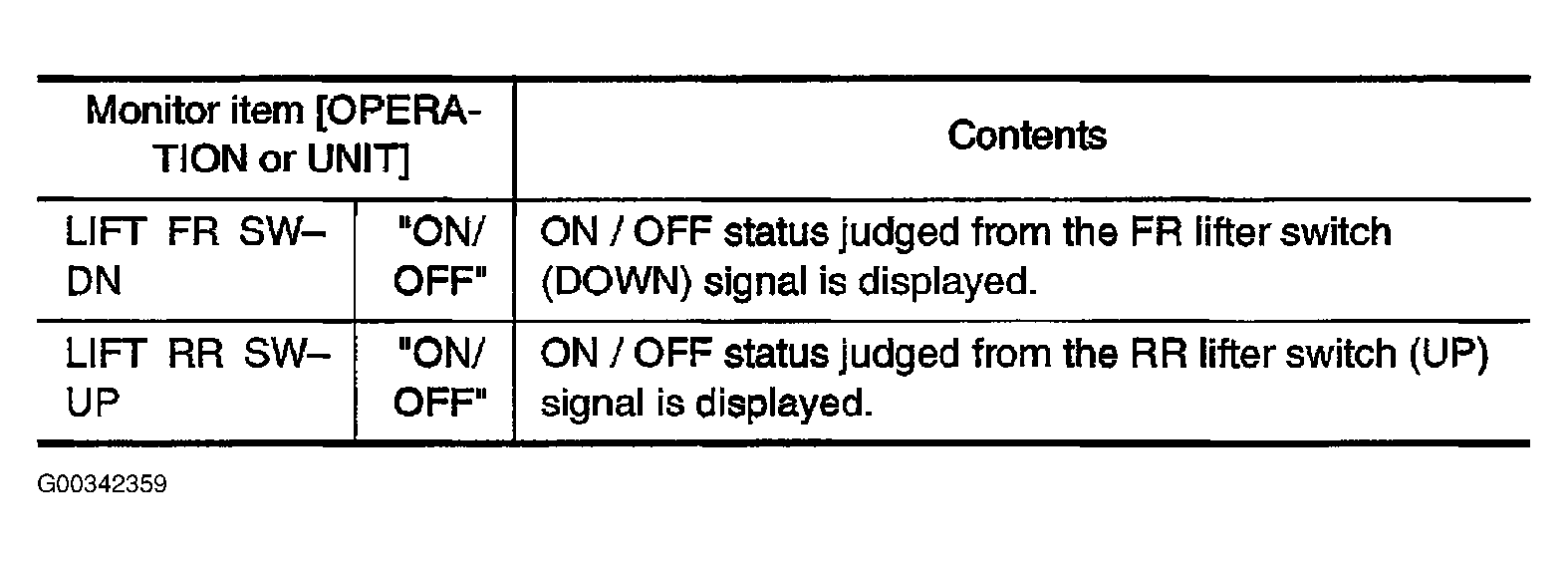

Fig 1: Data Monitor Chart
G00342359Courtesy of NISSAN MOTOR CO., U.S.A.

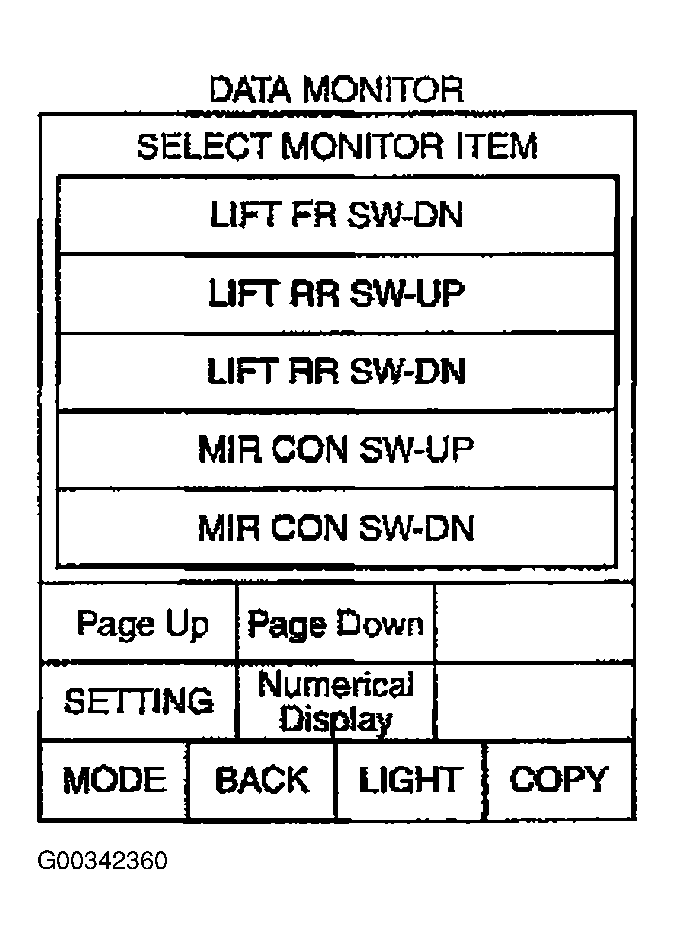

Fig 2: CONSULT-II Display
G00342360Courtesy of NISSAN MOTOR CO., U.S.A.
