Inspection Procedure

1. Remove the RR-IG1-2 fuse from the luggage room junction block.
2. Measure the resistance of the fuse.

   Standard resistance

   FUSE (RR-IG1-2)



   Tester Connection	Condition	Specified Condition
   RR-IG1-2fuse	Always	Below 1 Ω

NG: REPLACE FUSE

OK: GO TO NEXT STEP

Fig 1: Checking Rear Junction Block ECU (SMOK Voltage)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear junction block ECU with connectors still connected.
2. Measure the voltage according to the value(s) in the table below when applying or not applying cigarette smoke.

   Standard voltage

   REAR JUNCTION BLOCK ECU (SMOK VOLTAGE)



   Tester Connection	Switch Condition	Specified Condition
   S62-7 (SMOK) - Body ground	Engine switch on (IG) Rear cooler AUTO switch ON Apply cigarette smoke	Above 4.0 V
   	Engine switch on (IG) Rear cooler AUTO switch ON No cigarette smoke	Below 1 V

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )

NG: GO TO NEXT STEP

Fig 2: Inspecting Smoke Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the smoke sensor (see REMOVAL  ).
2. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 3.
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   SMOKE SENSOR



   Tester Connection	Condition	Specified Condition
   2-3	There is no cigarette smoke	Below 1.0 V
   	There is cigarette smoke	Above 4.0 V

   NOTE: Since the sensor determines the amount of smoke based on the changes in the amount of light, check the sensor in an area with as little ambient light as possible.

NG: REPLACE SMOKE SENSOR (See  REMOVAL   )

OK: GO TO NEXT STEP

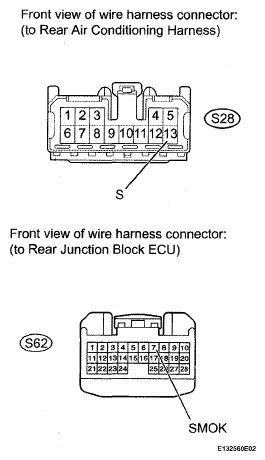

Fig 3: Checking Harness And Connector (Rear Junction Block ECU - Rear Air Conditioning Harness)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the S62 rear junction block ECU connector.
2. Disconnect the S28 rear air conditioning harness connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   REAR JUNCTION BLOCK ECU - REAR AIR CONDITIONING HARNESS



   Tester Connection	Condition	Specified Condition
   S62-7(SMOK)-S28-13 (S)	Always	Below 1 Ω
   S62-7 (SMOK) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

HINT:

Replace the rear air conditioning harness with a normal one and check that the condition returns to normal (see REMOVAL  ).

OK: Same problem does not occur.

NG: REPLACE REAR JUNCTION BLOCK ECU

OK: END (REAR AIR CONDITIONING HARNESS IS FAULTY)
