Front Evaporator Temperature Sensor: Components

Fig 1: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
G04950744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

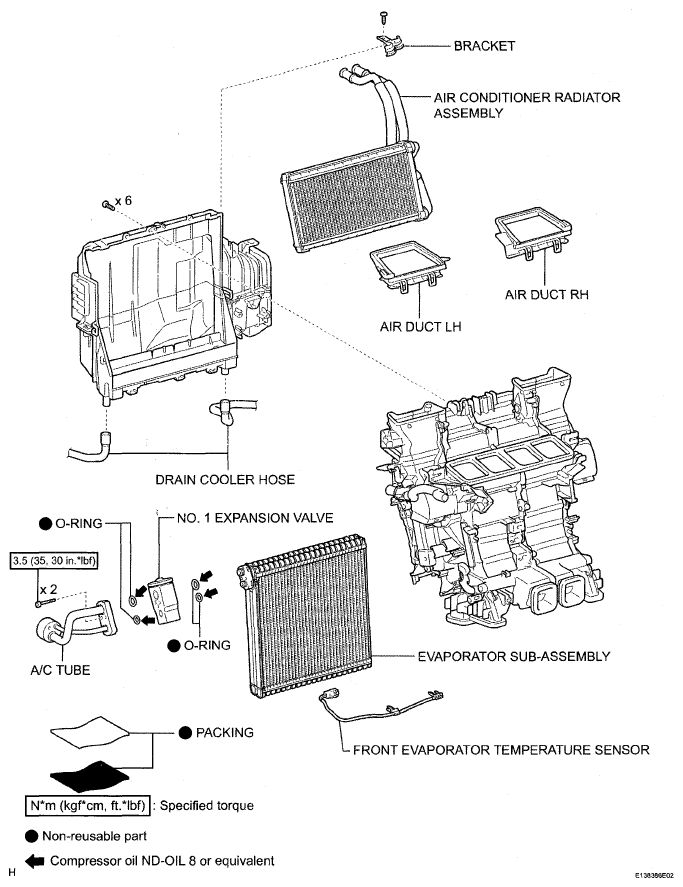

Fig 2: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
G04950745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
