Driver Monitor Ecu: Components

Fig 1: Driver Monitor ECU Replacement Components With Torque Specifications (1 Of 2)
G04950918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

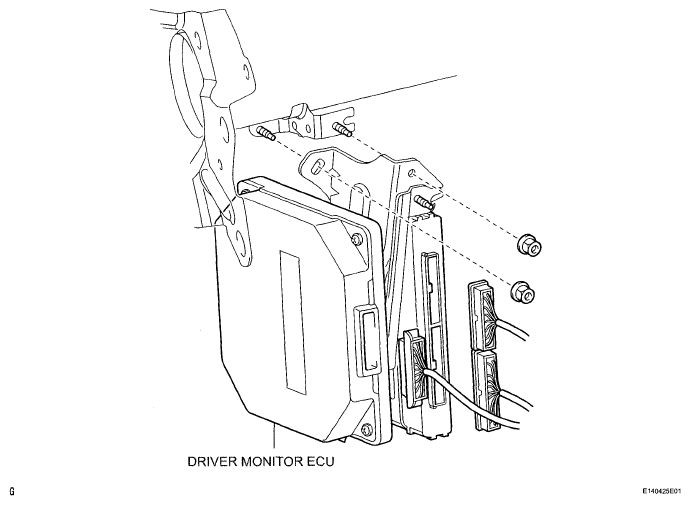

Fig 2: Identifying Driver Monitor ECU Components (2 Of 2)
G04950919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
