Seat Belt Control Ecu: Components

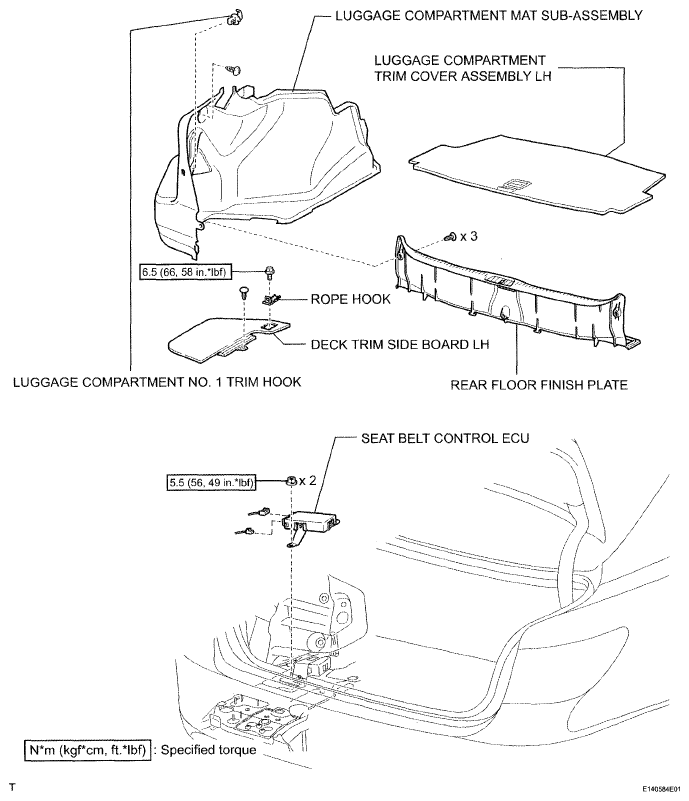

Fig 1: Seat Belt Control ECU Replacement Components With Torque Specifications
G04950922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
