Child Restraint Seat Tether Anchor: Components

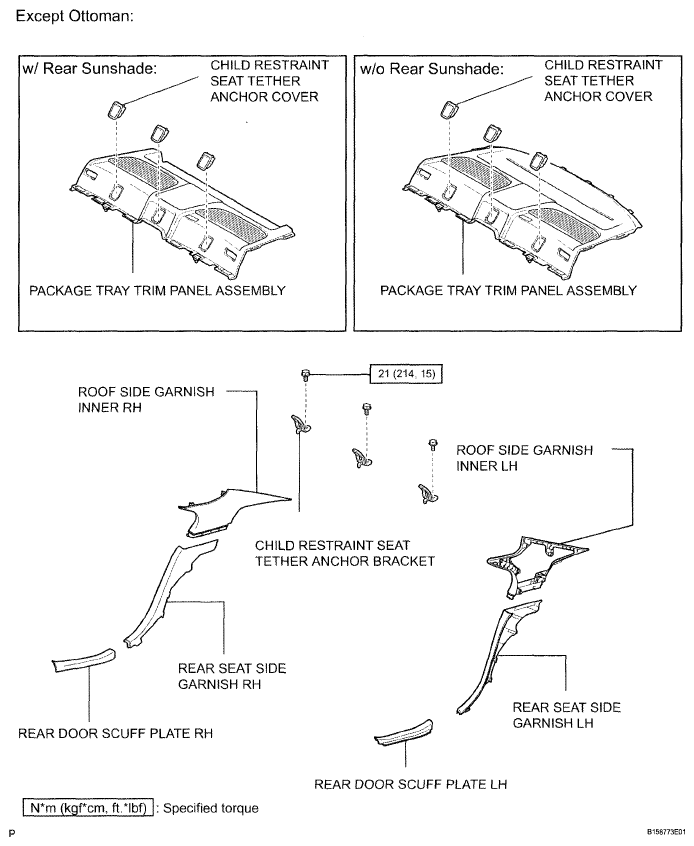

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)
G04944543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

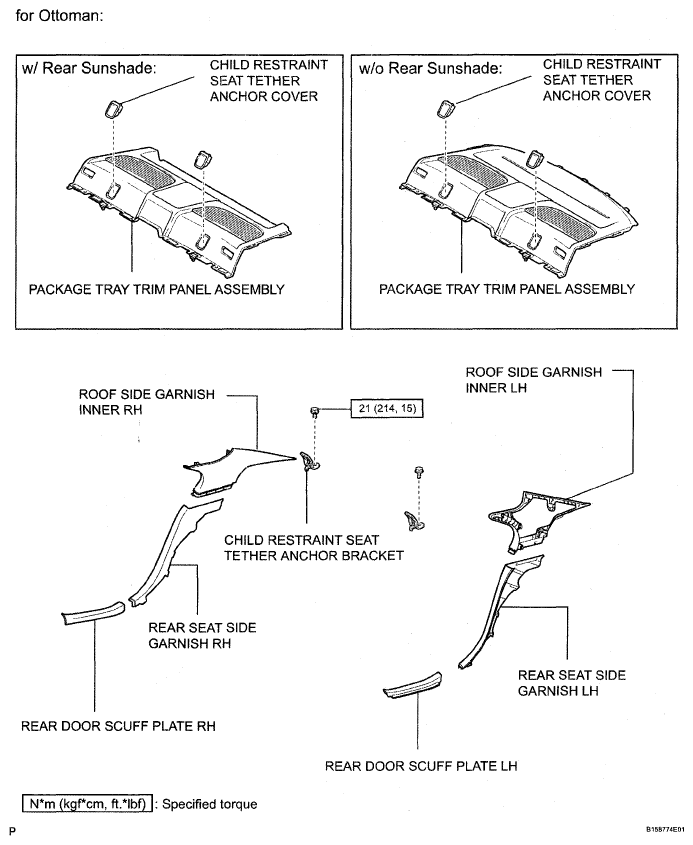

Fig 2: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (2 Of 2)
G04944544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
