Shoulder Belt Anchorage: Components

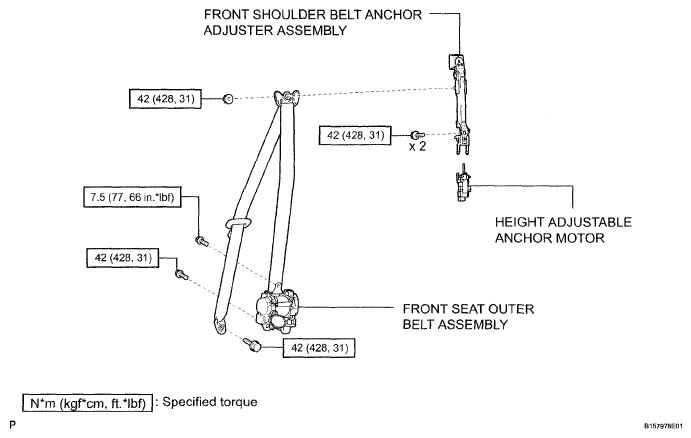

Fig 1: Shoulder Belt Anchorage Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
