Inspection Procedure

1. Disconnect the A44 ECU connector.
2. Measure the voltage according to the value(s) in the table below.
   Fig 1: Checking Power Steering ECU (PIG Terminal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   POWER STEERING ECU (PIG TERMINAL)



   Tester Connection	Switch Condition	Specified Condition
   A44-4 (PIG) - Body ground	Engine switch on (IG)	30 to 48 V

   NOTE: If replacing the power steering ECU, initialize the rotation angle sensor value and calibrate the torque sensor zero point (see CALIBRATION  ).

OK: REPLACE POWER STEERING ECU (See  REMOVAL   )

NG: GO TO NEXT STEP

1. Disconnect the A47 converter connector.
2. Measure the voltage according to the value(s) in the table below.
   Fig 2: Checking Harness And Connector (Converter - Battery And ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   CONVERTER - BATTERY AND ECU VOLTAGE



   Tester Connection	Condition	Specified Condition
   A47-1 (PIG) - Body ground	Always	11 to 14 V

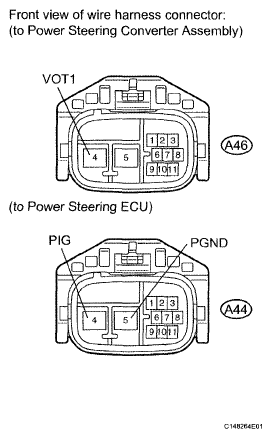

   Fig 3: Checking Harness And Connector (Converter - Battery And ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the A44 ECU connector.
4. Disconnect the A46 converter connector.
5. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   CONVERTER - BATTERY AND ECU RESISTANCE



   Tester Connection	Condition	Specified Condition
   A44-4(PIG)-A46-4 (VOT1)	Always	Below 1 Ω
   A44-5 (PGND) - Body ground	Always	Below 1 Ω
   A44-4 (PIG) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

1. Disconnect the A46 converter connector.
2. Measure the voltage according to the value(s) in the table below.
   Fig 4: Checking Harness And Connector (Converter - Battery)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   CONVERTER - BATTERY VOLTAGE



   Tester Connection	Switch Condition	Specified Condition
   A46-1 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

1. Check for DTCs (see DTC CHECK / CLEAR  ).

   Result

   RESULT CHART



   DTC Condition	Proceed to
   Only DTC C1568 is output	A
   DTC other than DTC C1568 is output	B

B: GO TO  DIAGNOSTIC TROUBLE CODE CHART   ( )

A: REPLACE POWER STEERING CONVERTER ASSEMBLY (See  REMOVAL   )
