HEIGHT CONTROL VALVE (for Front Side)
›
Components
HEIGHT CONTROL VALVE (for Front Side): Components

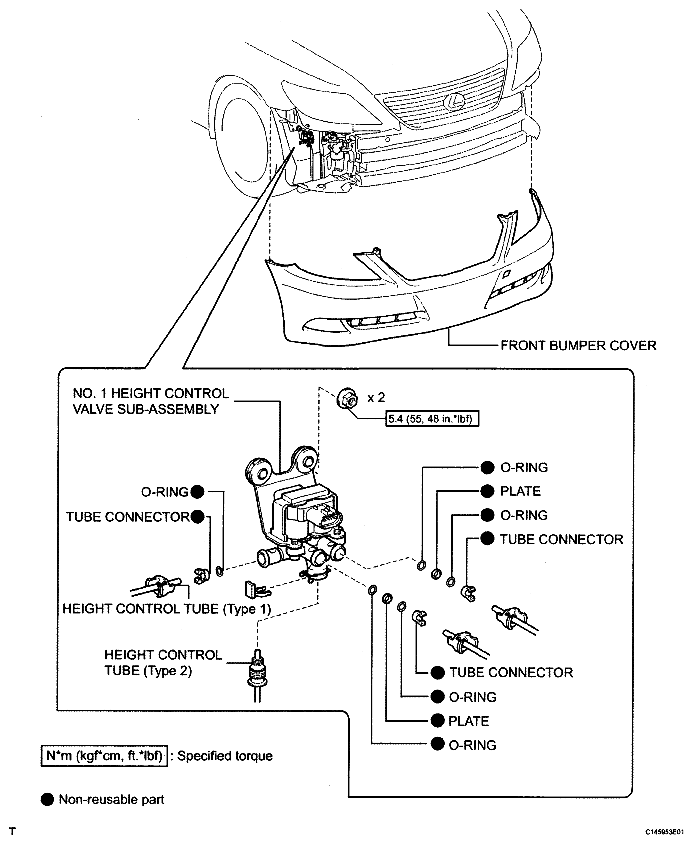

Fig 1: Height Control Valve (For Front Side) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
