Suspension Control Ecu: Components

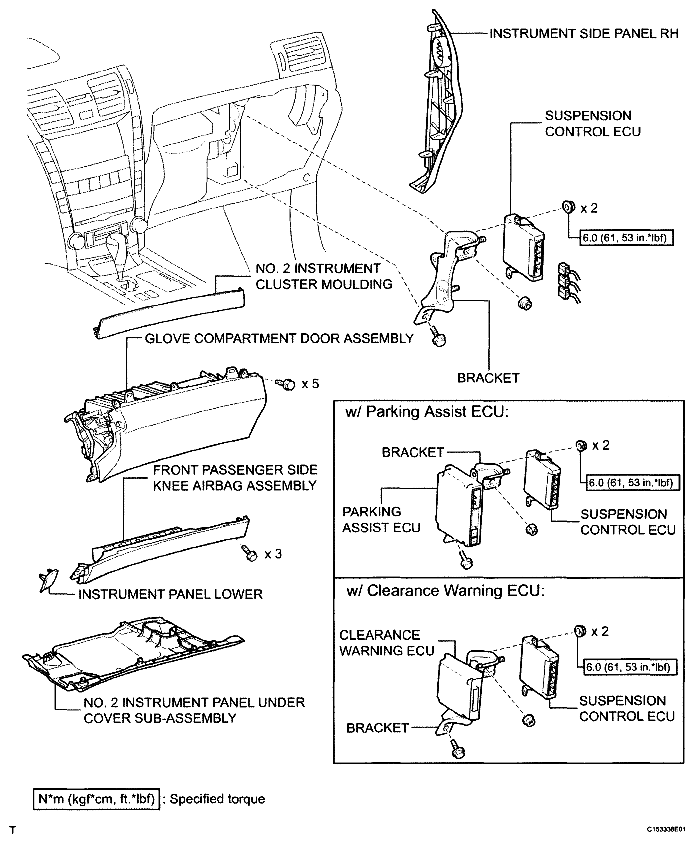

Fig 1: Suspension Control ECU Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
