Slip Indicator Light Circuit: Wiring Diagram

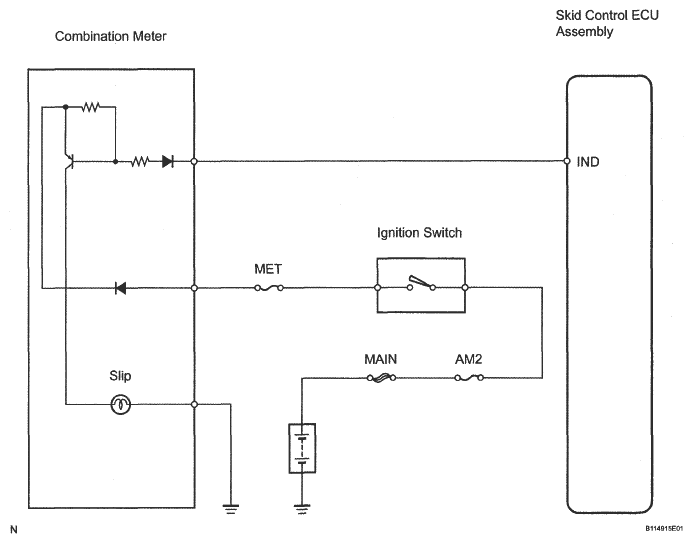

Fig 1: Slip Indicator Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
