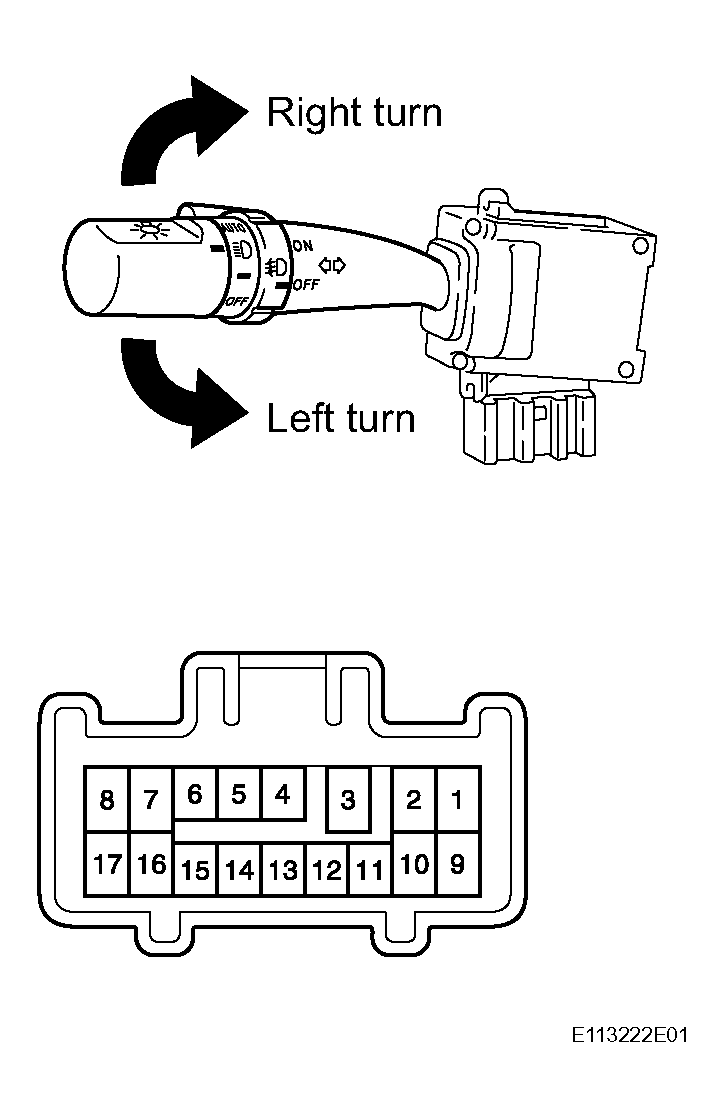

INSPECT TURN SIGNAL SWITCH
- Measure the continuity of the switch.
OK
CONTINUITY CONDITION
| Tester Connection |
Condition |
Specified Condition |
| 7 - 8 |
Left turn |
Continuity |
| 6 - 7 |
Right turn |
| - |
Neutral |
No continuity |
If the result is not as specified, replace the headlight dimmer switch assembly.
