Terminals Of Ecu

  1. CONNECTORS

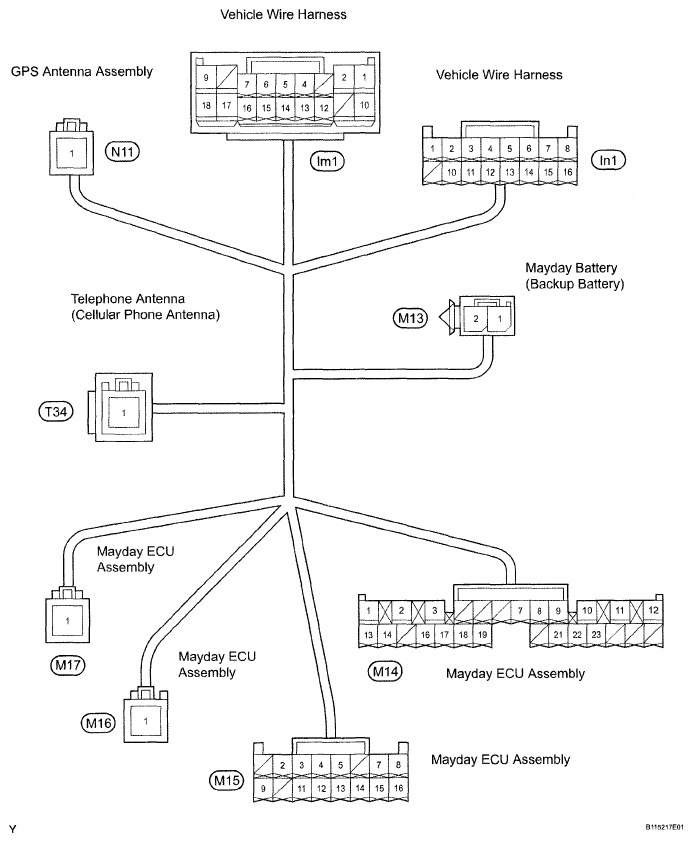

    Fig 1: Identifying ECU Connectors Terminals
    G05284030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WIRING DIAGRAMS

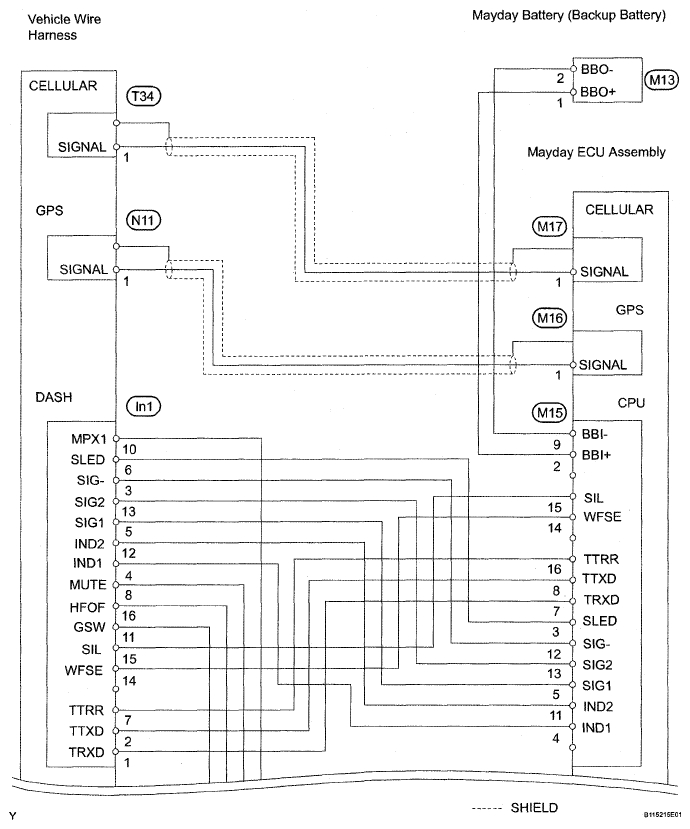

    Fig 2: Wiring Diagram (1 Of 2)
    G05284031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

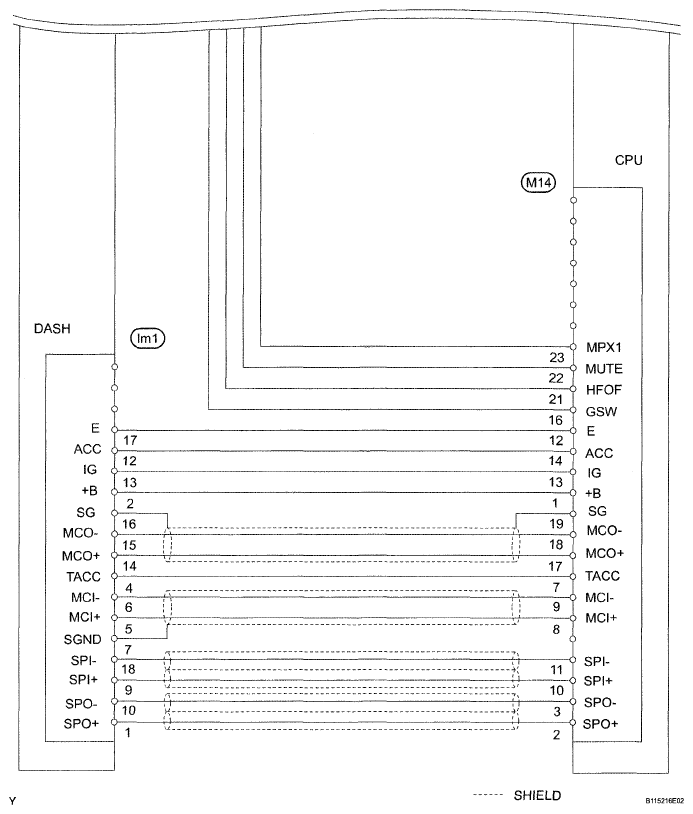

    Fig 3: Wiring Diagram (2 Of 2)
    G05284032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
