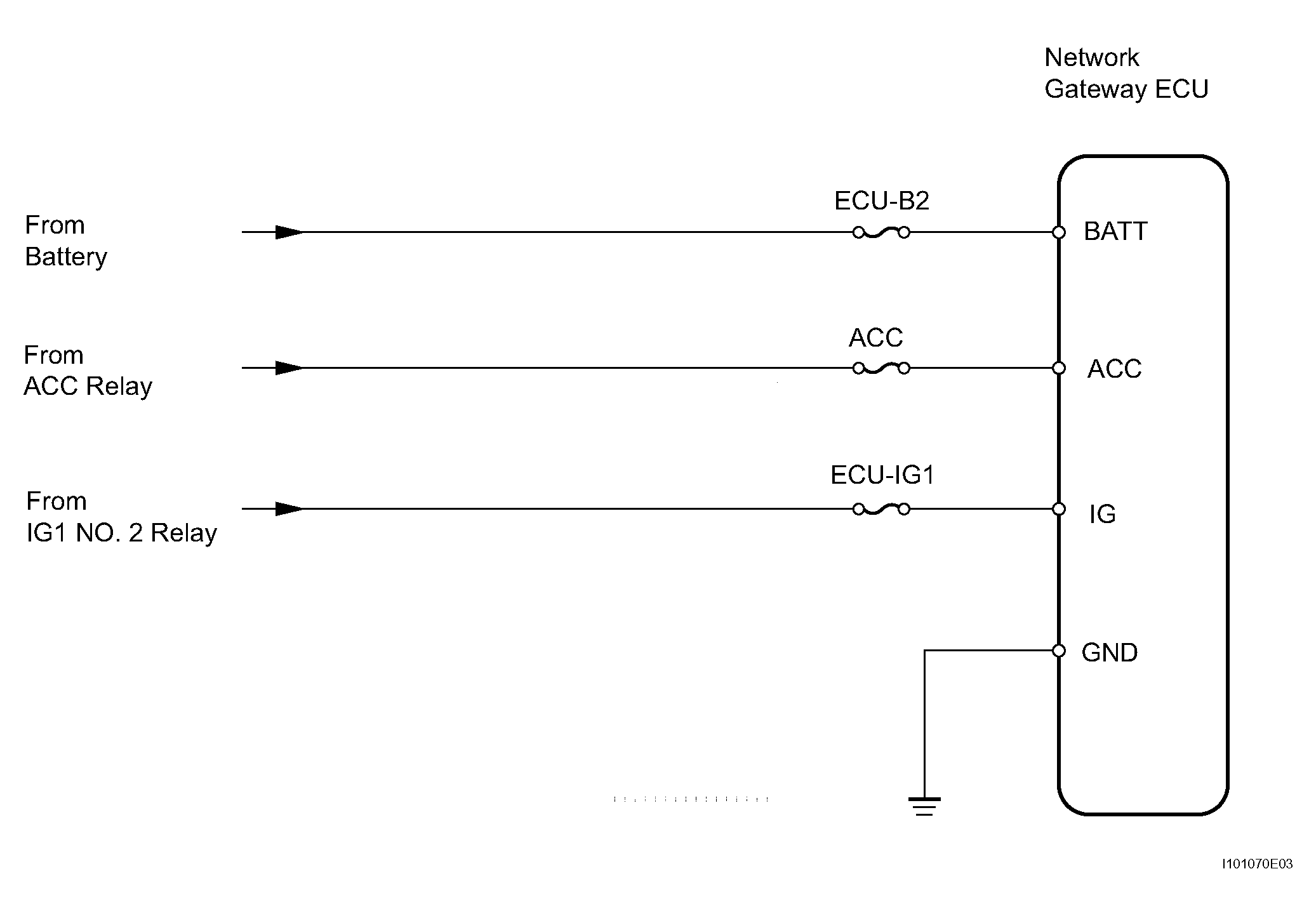

Gateway ECU Power Source Circuit: Wiring Diagram
- INSPECT FUSE (ACC, ECU-B2, ECU-IG1)
- Remove the ACC, ECU-IG1 fuses from the cowl side junction block LH.
- Remove the ECU-B2 fuse from the cowl side junction block RH.
- Measure the resistance of the fuses.
Standard resistance:
Below 1 Ω
NG: REPLACE FUSE
OK: Go To Next Step
- CHECK WIRE HARNESS (NETWORK GATEWAY ECU - BATTERY AND BODY GROUND)
- Disconnect the G5 ECU connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition G5-24 (GND) - Body ground Below 1 Ω - Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition G5-10 (BATT) - G5-24 (GND) Always 10 to 14 V G5-2 (ACC) - G5-24 (GND) Ignition switch ACC 10 to 14 V G5-1 (IG) - G5-24 (GND) Ignition switch ON 10 to 14 V NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM TABLE
