Power Door Lock Control System
›
Parts Location
Parts Location

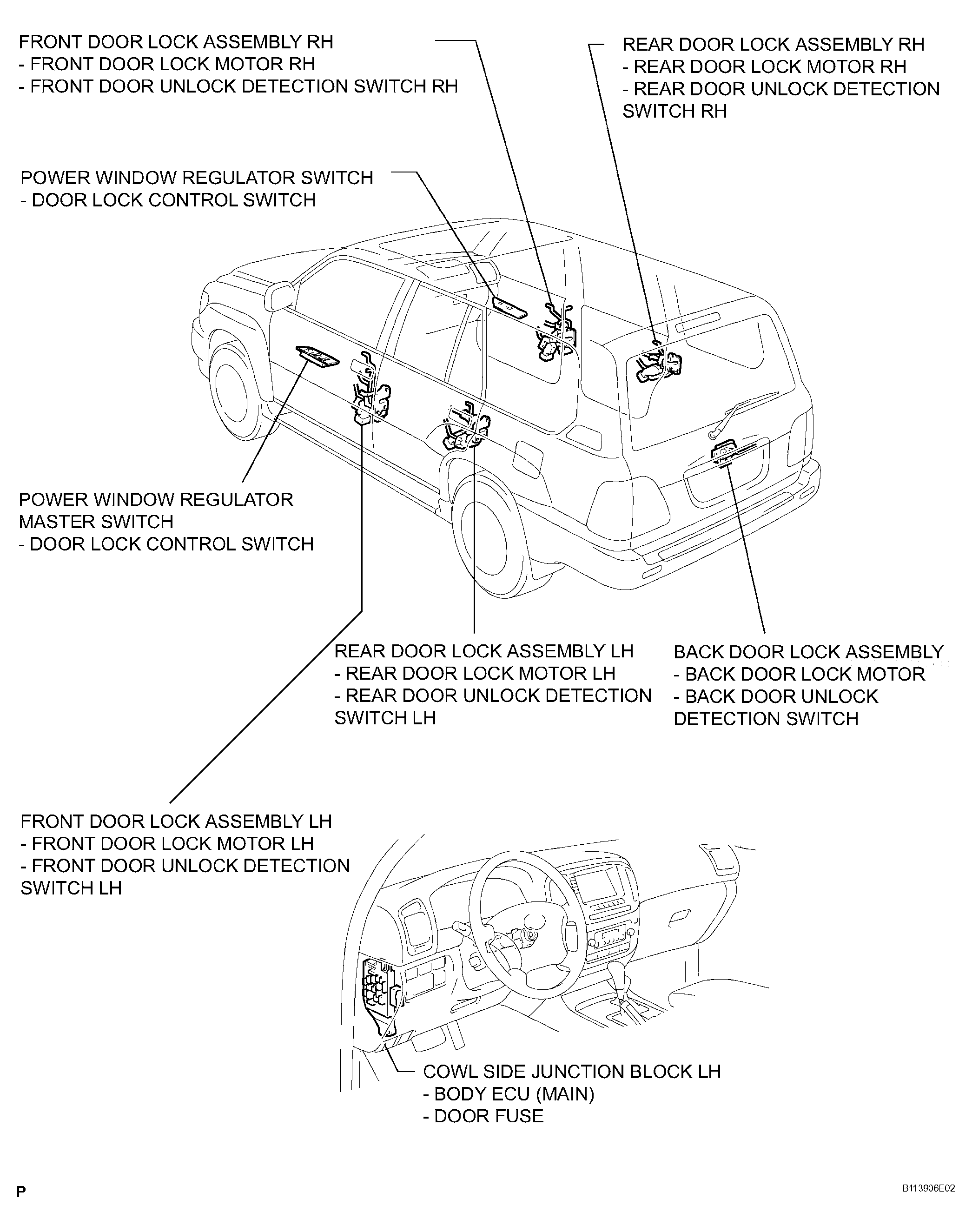

Fig 1: Identifying Power Door Lock Control System Parts Location
