  1. CHECK POWER WINDOW REGULATOR MASTER SWITCH
    Fig 1: Identifying Power Window Regulator Master Switch Connector Terminal
    G04065188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WIRING COLOR TERMINAL DESCRIPTION

    Symbols (Terminal No.) Wiring Color Condition Specified Condition
    GND (P15-2) - Body ground W-B - Body ground Always Below 1 V
    KL (P15-4) - KEYE (P15-3) L-W - W-B Door key lock and unlock switch is in LOCK position Below 1 V
    Door key lock and unlock switch is in OFF position 10 to 14 V
    MPX1 (P15-7) B Multiplex communication circuit -
    CPUB (P15-9) - GND (P15-2) L-W - W-B Always 10 to 14 V
    BDR (P15-10) - GND (P15-2) L - W-B Always 10 to 14 V
    SGND (P15-13) - Body ground BR-B - Body ground Always Below 1 V
    KUL (P15-14) - KEYE (P15-13) G-B - W-B Door key lock and unlock switch is in OFF position 10 to 14 V
    Door key lock and unlock switch is in UNLOCK position Below 1 V
    LSWD (P15-16) - KEYE (P15-3) L-B - W-B Driver door lock position switch ON 10 to 14 V
    Driver door lock position switch OFF Below 1 V
    SIG (P15-20) - GND (P15-2) B-W - W-B Ignition switch ON 10 to 14 V
  2. CHECK BODY ECU (MAIN)

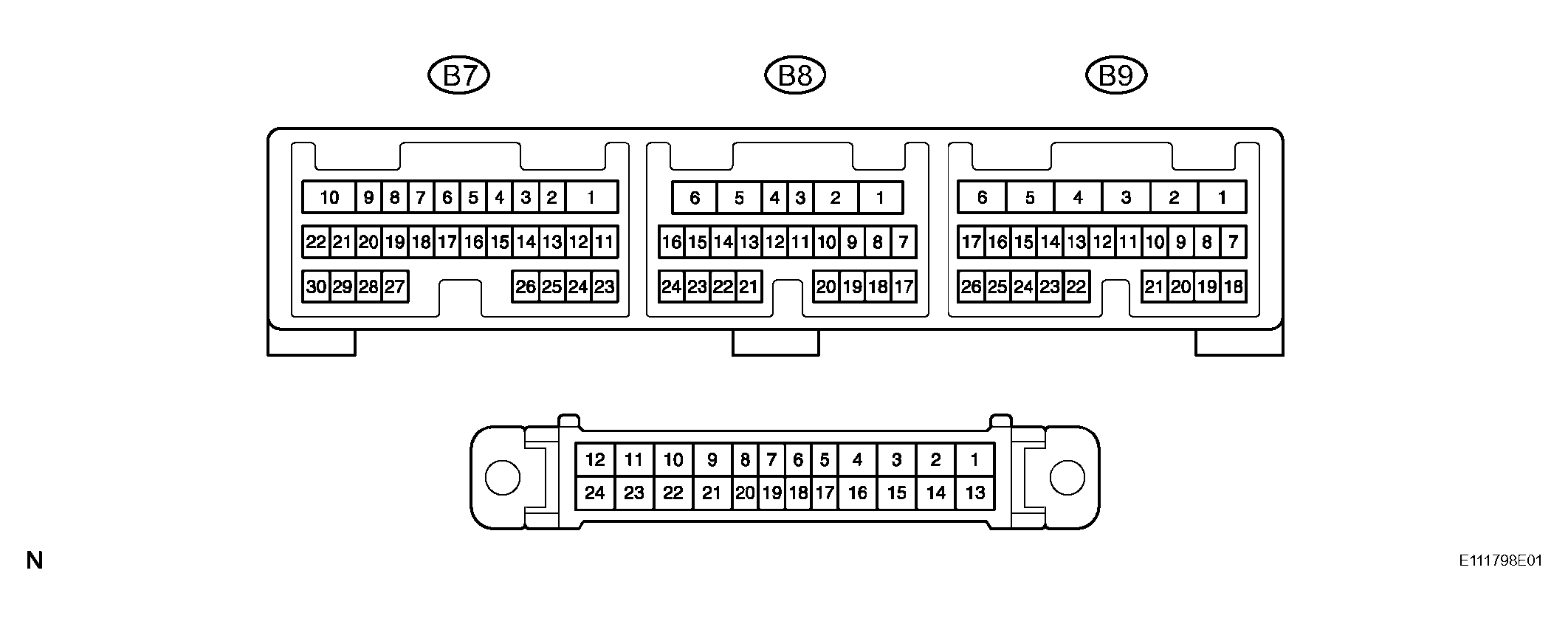

    Fig 2: Identifying Body ECU (Main) Connector Terminal
    G04065189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WIRING COLOR TERMINAL DESCRIPTION

    Symbols (Terminal No.) Wiring Color Condition Specified Condition
    GND1 (4) - Body ground - Always Below 1 V
    LSR (5) - GND1 (4) - Rear door RH / Rear door LH / Back door lock switch is unlock position Below 1 V
    LSR (5) - GND2 (16) - Rear door RH / Rear door LH / Back door lock switch is unlock position Below 1 V
    BECU (11) - GND1 (4) - Always 10 to 14 V
    BECU (11) - GND2 (16) - Always 10 to 14 V
    BDR1 (12) - GND1 (4) - Always 10 to 14 V
    BDR1 (12) - GND2 (16) - Always 10 to 14 V
    UL1 (15) - GND1 (4) - Driver door lock control switch is UNLOCK position Below 1 V
    UL1 (15) - GND2 (16) - Driver door lock control switch is UNLOCK position Below 1 V
    GND2 (16) - Body ground - Always Below 1 V
    L1 (19) - GND1 (4) - Driver door lock control switch is LOCK position Below 1 V
    L1 (19) - GND2 (16) - Driver door lock control switch is LOCK position Below 1 V
    L2 (20) - GND1 (4) - Driver door key lock and unlock switch is LOCK position Below 1 V
    L2 (20) - GND2 (16) - Driver door key lock and unlock switch is LOCK position Below 1 V
    ACT+ (23) - ACT- (24) - Door lock motor is operated 10 to 14 V
    ACTD (B7-10) - GND1 (4) L-B - Body ground Door lock motor is operated 10 to 14 V
    ACTD (B7-10) - GND2 (16) L-B - Body ground Door lock motor is operated 10 to 14 V
    UL2 (B7-22) - GND1 (4) G-B - Body ground Door key lock and unlock switch is LOCK position Below 1 V
    UL2 (B7-22) - GND2 (16) G-B - Body ground Door key lock and unlock switch is LOCK position Below 1 V
    LSWP (B7-30) - GND1 (4) L-O - Body ground Passenger door lock switch is UNLOCK position Below 1 V
    LSWP (B7-30) - GND2 (16) L-O - Body ground Passenger door lock switch is UNLOCK position Below 1 V
    RLCY (B8-11) - GND1 (4) R-L - Body ground Rear door LH door courtesy switch is ON (Door is opened) Below 1 V
    RLCY (B8-11) - GND2 (16) R-L - Body ground Rear door LH door courtesy switch is ON (Door is opened) Below 1 V
    RRCY (B8-12) - GND1 (4) R-G - Body ground Rear door RH door courtesy switch is ON (Door is opened) Below 1 V
    RRCY (B8-12) - GND2 (16) R-G - Body ground Rear door RH door courtesy switch is ON (Door is opened) Below 1 V
    DCTY (B8-23) - GND1 (4) R-Y - Body ground Driver door courtesy switch is ON (Door is opened) Below 1 V
    DCTY (B8-23) - GND2 (16) R-Y - Body ground Driver door courtesy switch is ON (Door is opened) Below 1 V
    PCTY (B8-24) - GND1 (4) R-B - Body ground Passenger door courtesy switch is ON (Door is opened) Below 1 V
    PCTY (B8-24) - GND2 (16) R-B - Body ground Passenger door courtesy switch is ON (Door is opened) Below 1 V
