Outer Rear View Mirror: Installation

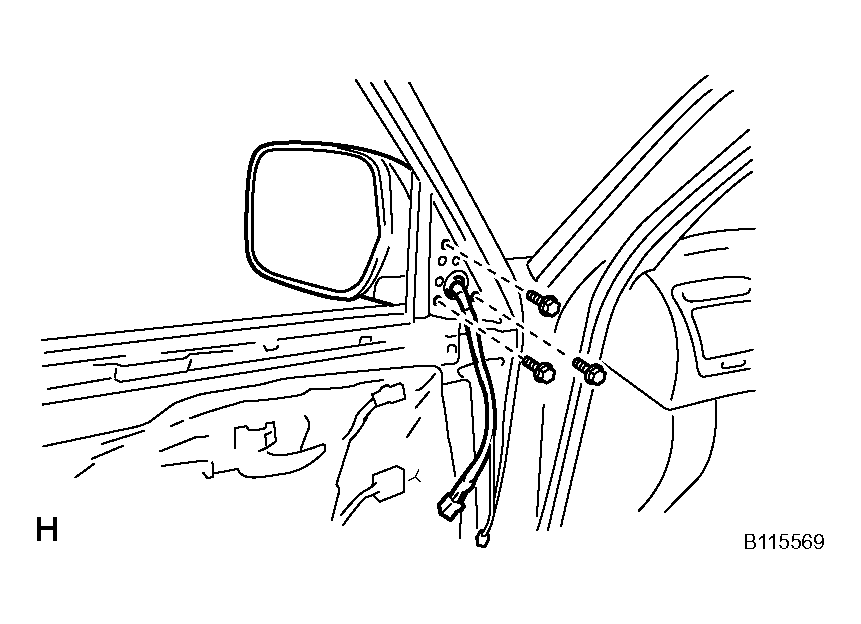

INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
1. Install the mirror with the 3 bolts.
  Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)
2. Connect the 2 connectors.

  Fig 1: Identifying Outer Rear View Mirror Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

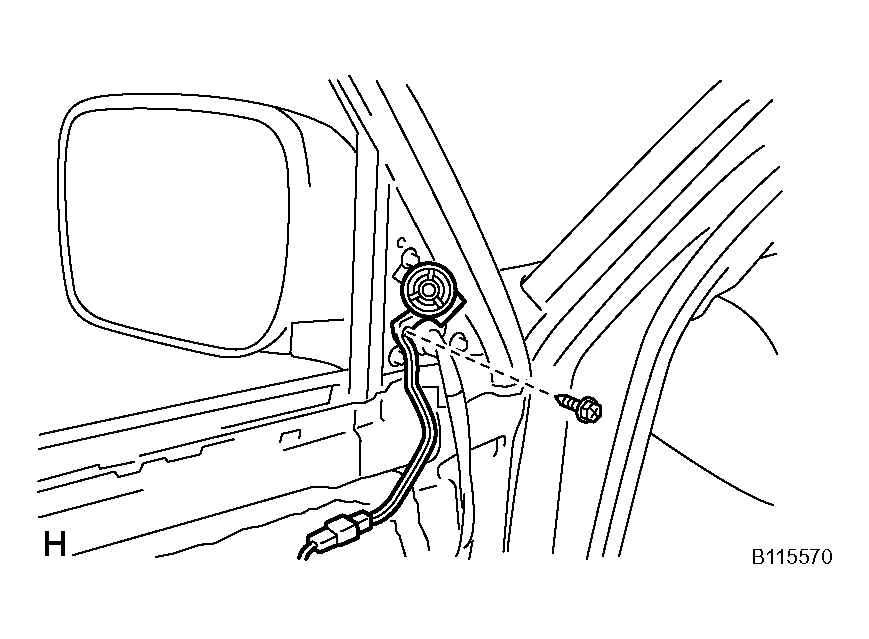

INSTALL TWEETER SPEAKER
1. Install the speaker with the screw.
2. Connect the connector.

  Fig 2: Identifying Speaker With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

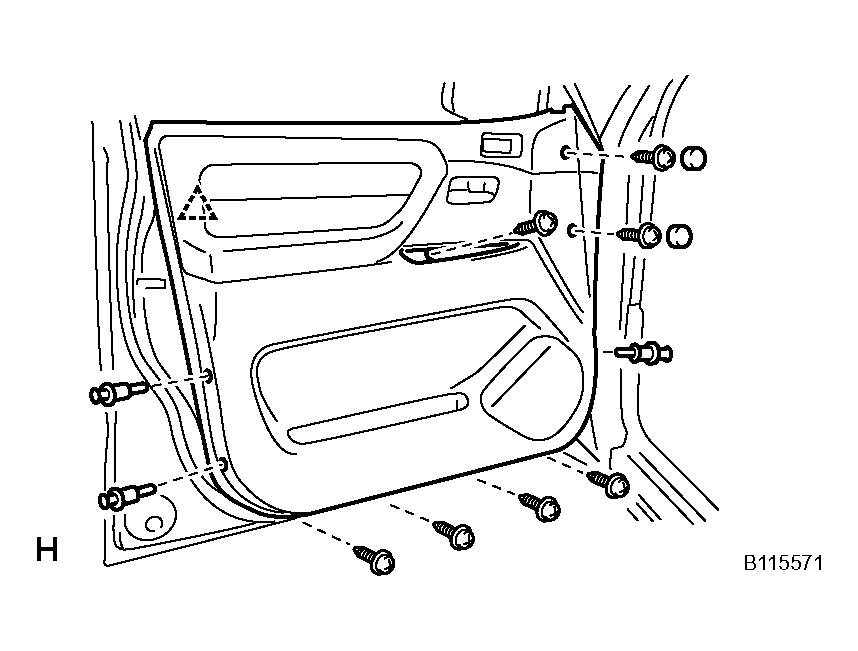

INSTALL FRONT DOOR TRIM BOARD SUBASSEMBLY
1. Attach the trim board.
2. Install the 3 clips.
3. Install the 7 screws and 2 caps.

  Fig 3: Identifying Front Door Trim Board Subassembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT MEMORY SWITCH
1. Connect the connector.
2. Install the switch.
INSTALL FRONT DOOR COURTESY LIGHT
1. Connect the connector.
2. Install the light.
INSTALL NO. 1 DOOR INSIDE HANDLE BEZEL
1. Install the bezel with the screw.
INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL
INSTALL CENTER SPEAKER (w/ Mark Levinson)
1. Connect the connector.
2. Install the speaker.
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
1. Connect the connector.
2. Install the switch.

  Fig 4: Identifying Power Window Regulator Master Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION

Fig 5: Identifying Front Door Lower Frame Bracket Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Perform initialization (See INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
