Front Seat Assembly: Disassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback frame and seat adjuster may injure your hands.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE FRONT SEAT HEADREST ASSEMBLY
REMOVE FRONT SEATBACK BOARD SUBASSEMBLY
1. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws.

  Fig 1: Pulling Seatback Board In Indicated Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

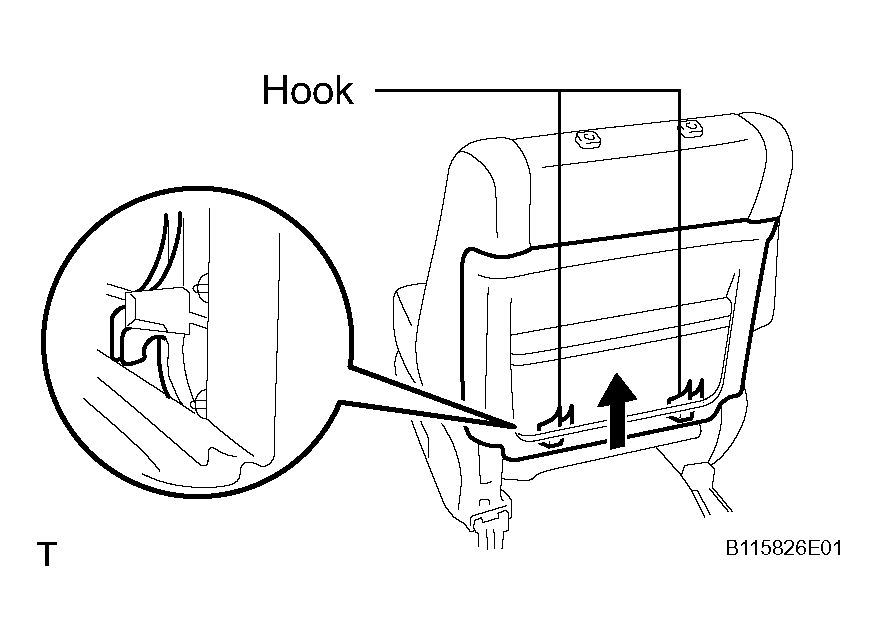

2. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 hooks.
Then remove the seatback board.

Fig 2: Pulling Seatback Board In Indicated Direction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION SHIELD LH
1. Using a screwdriver, remove the 2 power seat switch knobs.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 4 screws.

  Fig 3: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connectors as shown in the illustration and remove the cushion shield.

  Fig 4: Identifying Connectors And Cushion Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 3 screws and power seat switch from the cushion shield.
5. Remove the 2 screws and lumbar support switch from the cushion shield.
Fig 5: Removing Screws And Power Seat Switch From Cushion Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT INNER BELT ASSEMBLY LH
1. Detach the clamp and disconnect the connector.
2. Remove the bolt and inner belt.
Fig 6: Identifying Bolt Inner Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION SHIELD INNER LH
1. Remove the 3 screws and cushion shield.
Fig 7: Identifying Front Seat Cushion Shield Inner LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT TRACK LOWER RAIL PROTECTOR
1. Remove the screw.
2. Detach the claws and remove the rail protector.
Fig 8: Identifying Seat Track Lower Rail Protector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT NO. 1 SEAT CUSHION SHIELD INNER LH
1. Remove the screw and cushion shield.
Fig 9: Identifying Front Seat Cushion Shield Inner LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION ASSEMBLY

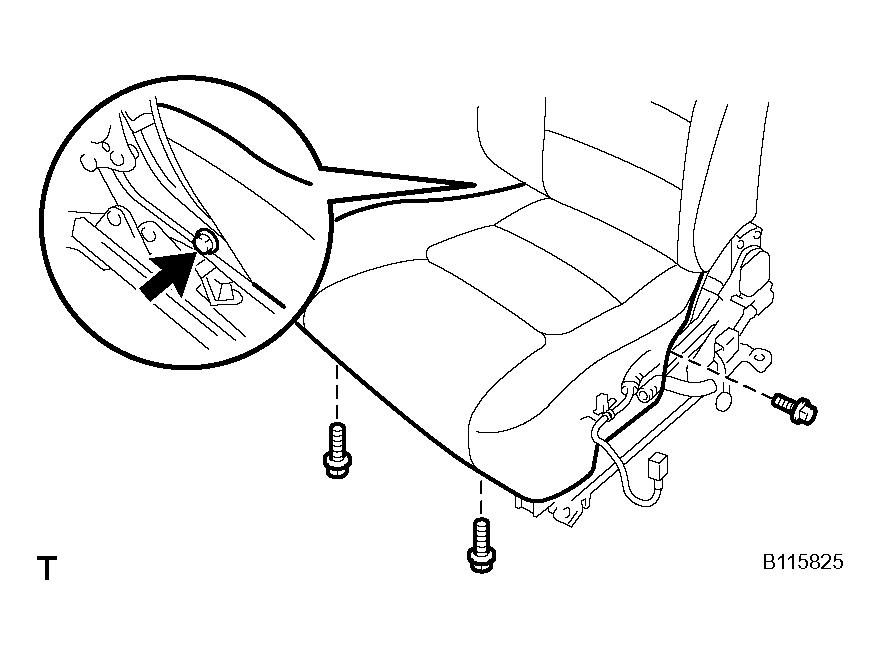

1. Remove the 4 bolts and detach the clamps. Then remove the seat cushion.
REMOVE FRONT SEAT CUSHION COVER
1. Detach the hooks.
2. Remove the hog rings and the seat cushion cover (with pad) from the seat cushion frame.

  Fig 10: Identifying Front Seat Cushion Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the hog rings and seat cushion cover from the seat cushion pad.
REMOVE FRONT SEAT CUSHION HEATER
1. Turn the seat cushion cover inside out.

  Fig 11: Removing Hog Rings And Seat Cushion Cover From Seat Cushion Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the seat wires.

  Fig 12: Identifying Seat Wires
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the tack pins which are fastened to the heater.

  Fig 13: Identifying Tack Pins Fastened To Heater
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the seat heater from the seat cushion cover.
HINT:

Be sure to remove the wire before removing the seat heater.

Fig 14: Removing Seat Heater From Seat Cushion Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK ASSEMBLY
1. Remove the hog rings.
2. Detach the hooks as shown in the illustration.
3. Disconnect the connectors.

  Fig 15: Detaching Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

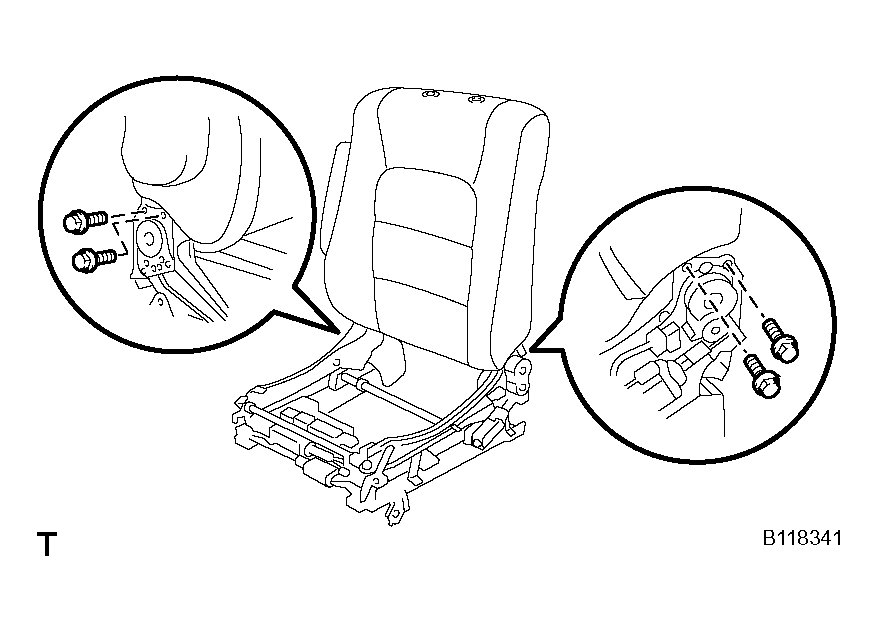

4. Remove the 4 bolts and seatback.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
5. Remove the screw and reclining adjuster inside shield RH.
6. Disconnect the side airbag connector.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
7. Remove the screw and the reclining adjuster inside shield LH.
Fig 16: Identifying Bolts And Seatback
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT ARMREST ASSEMBLY LH
1. Using a screwdriver, remove the No. 1 armrest cap.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the bolt and armrest.
3. Remove the bush.
REMOVE FRONT SEATBACK COVER
1. Remove the hog rings, clamps and 2 bolts.
2. Remove the 2 headrest supports.
3. Remove the hog rings and seatback cover (with pad) from the seatback frame.

  Fig 17: Identifying Hog Rings, Clamps And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the hog rings, wires and seatback cover from the seatback pad.
Fig 18: Removing Hog Rings, Wires And Seatback Cover From Seatback Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK HEATER
1. Turn the seatback cover inside out.
2. Remove the seat wires.
3. Remove the tack pins which are fastened to the seat heater.
4. Remove the seat heater from the seatback cover.
Fig 19: Identifying Seat Wires
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

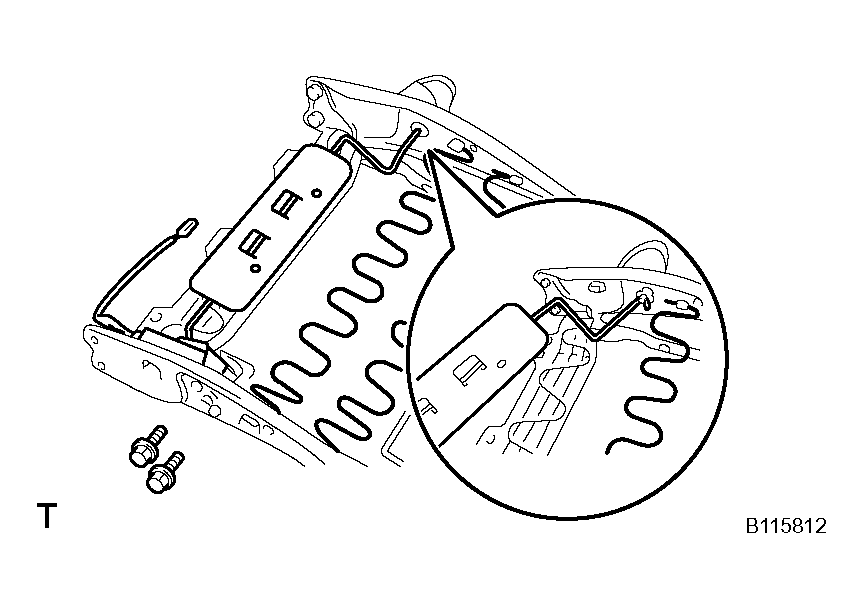

REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY
1. Remove the 2 bolts and lumbar support.
2. Remove the spacer.
REMOVE SEAT POSITION CONTROL RELAY
1. Disconnect the connectors.
2. Remove the 2 bolts and control relay.
Fig 20: Identifying Bolts And Lumbar Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Side)
1. Remove the bolt and airbag sensor.
2. Disconnect the connector.
Fig 21: Identifying Bolt And Airbag Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
