DTC C1249/49 Open in Stop Light Switch Circuit
›
Wiring Diagram
DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

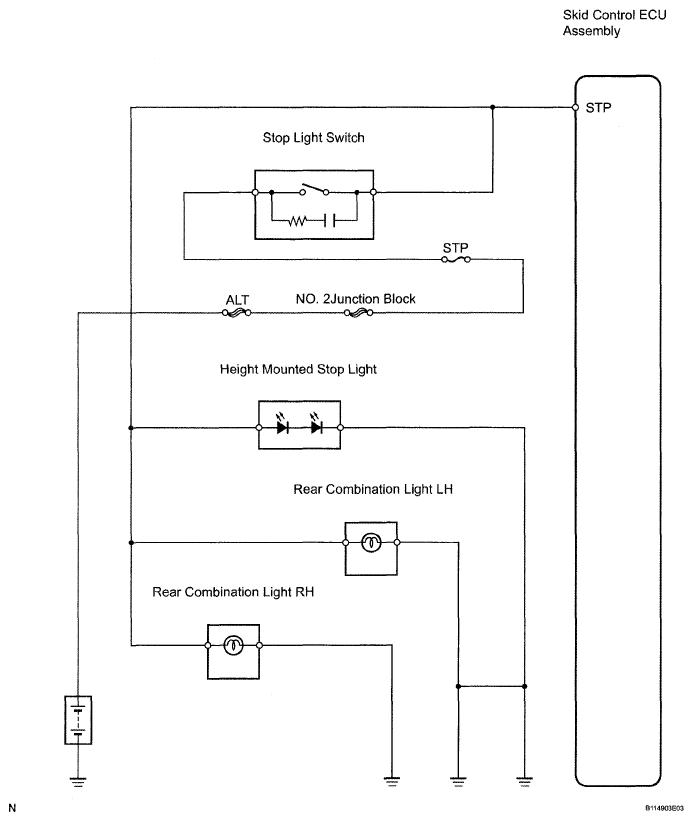

Fig 1: Open In Stop Light Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
