DTC C1257/57 IG Power Source
›
Wiring Diagram
DTC C1257/57 IG Power Source: Wiring Diagram

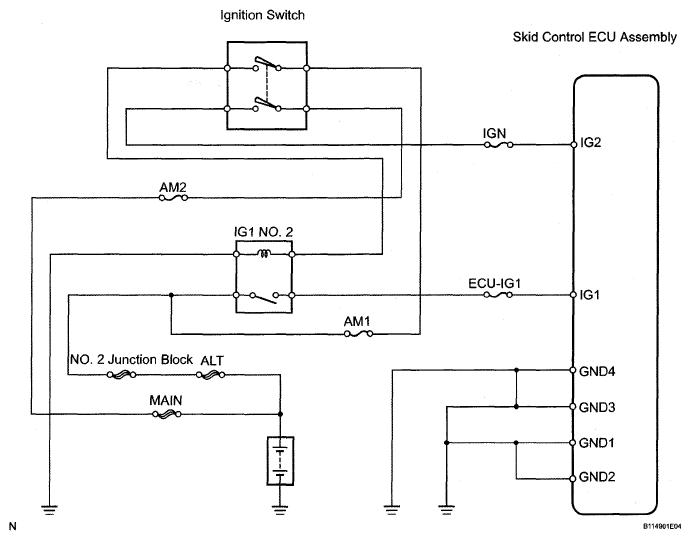

Fig 1: IG2 Power Source - Wiring Diagram
