DTC C1340/47 Center Differential Lock Circuit
›
Wiring Diagram
DTC C1340/47 Center Differential Lock Circuit: Wiring Diagram

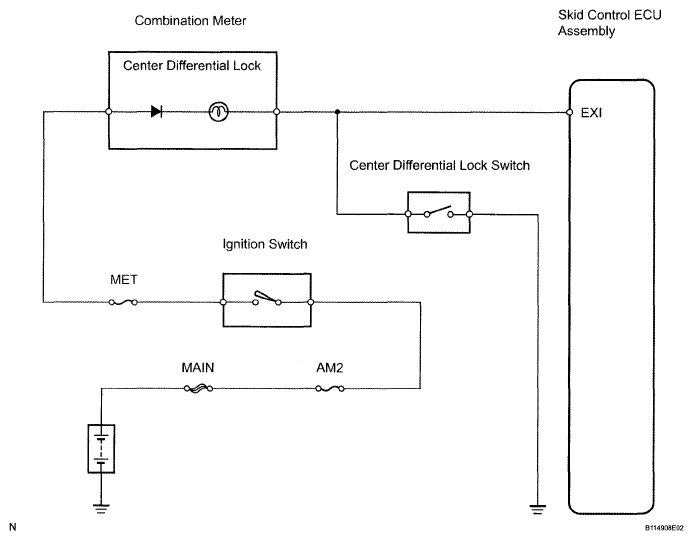

Fig 1: Center Differential Lock - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
