VSC Warning Light Remains ON: Wiring Diagram

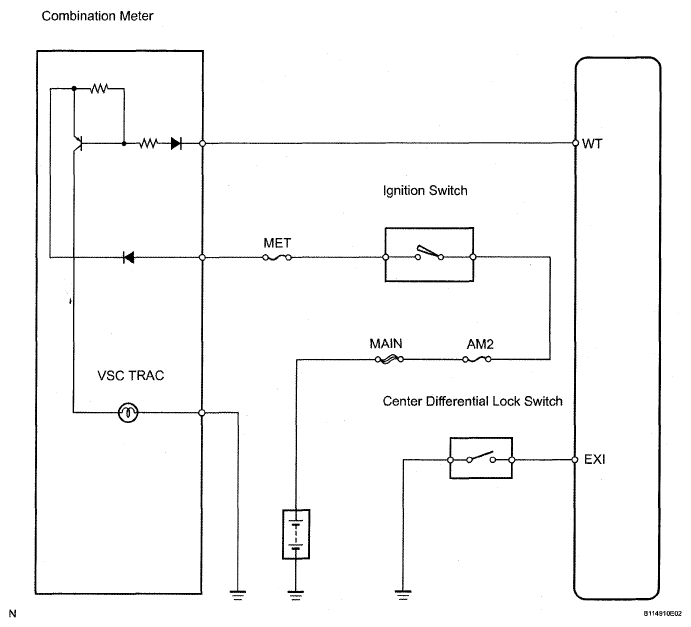

Fig 1: VSC Warning Light Remains On - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
