Front Axle Hub Bolt: Components

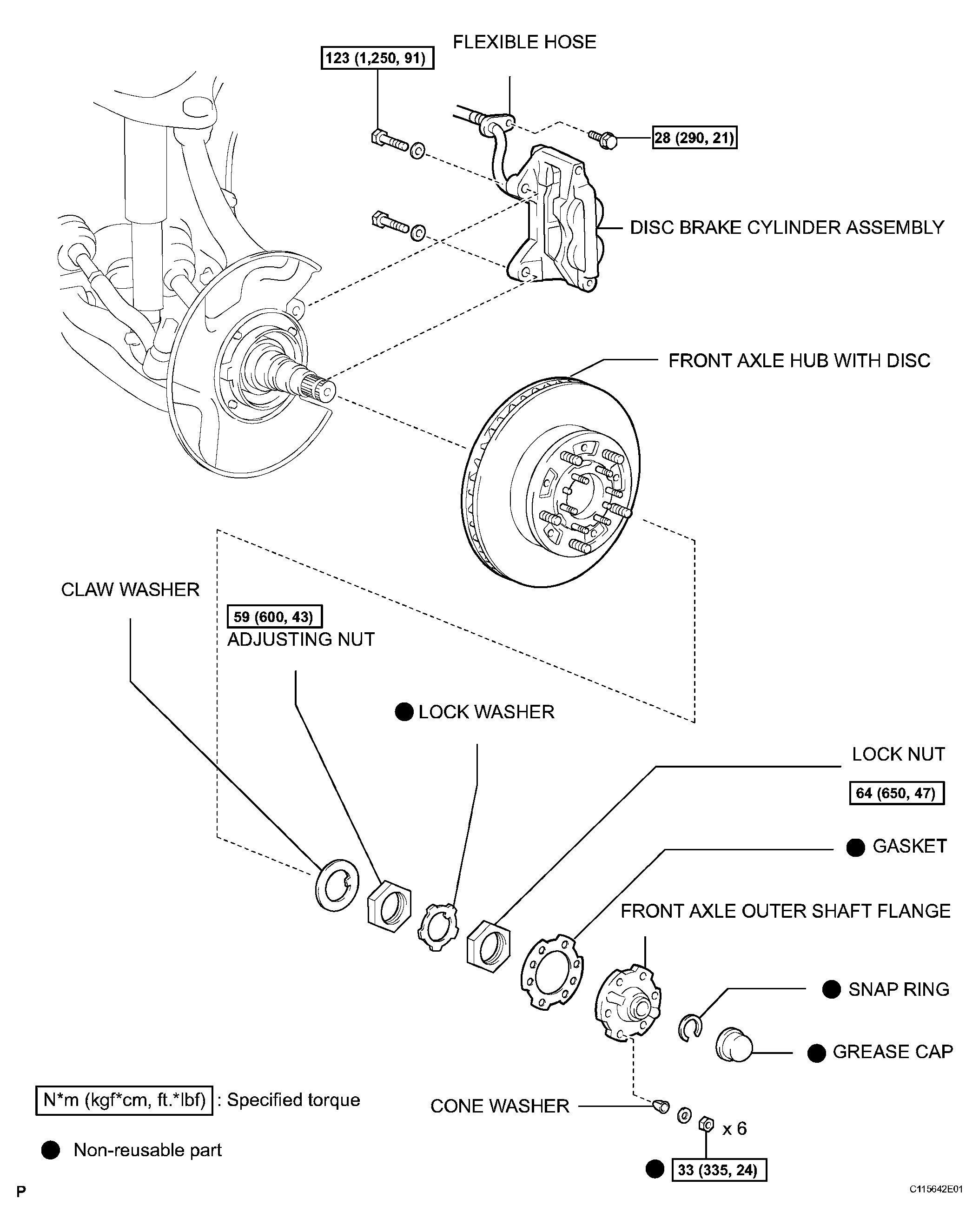

Fig 1: Front Axle Hub Bolt Replacement Components With Torque Specifications (1 Of 2)
G04063428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

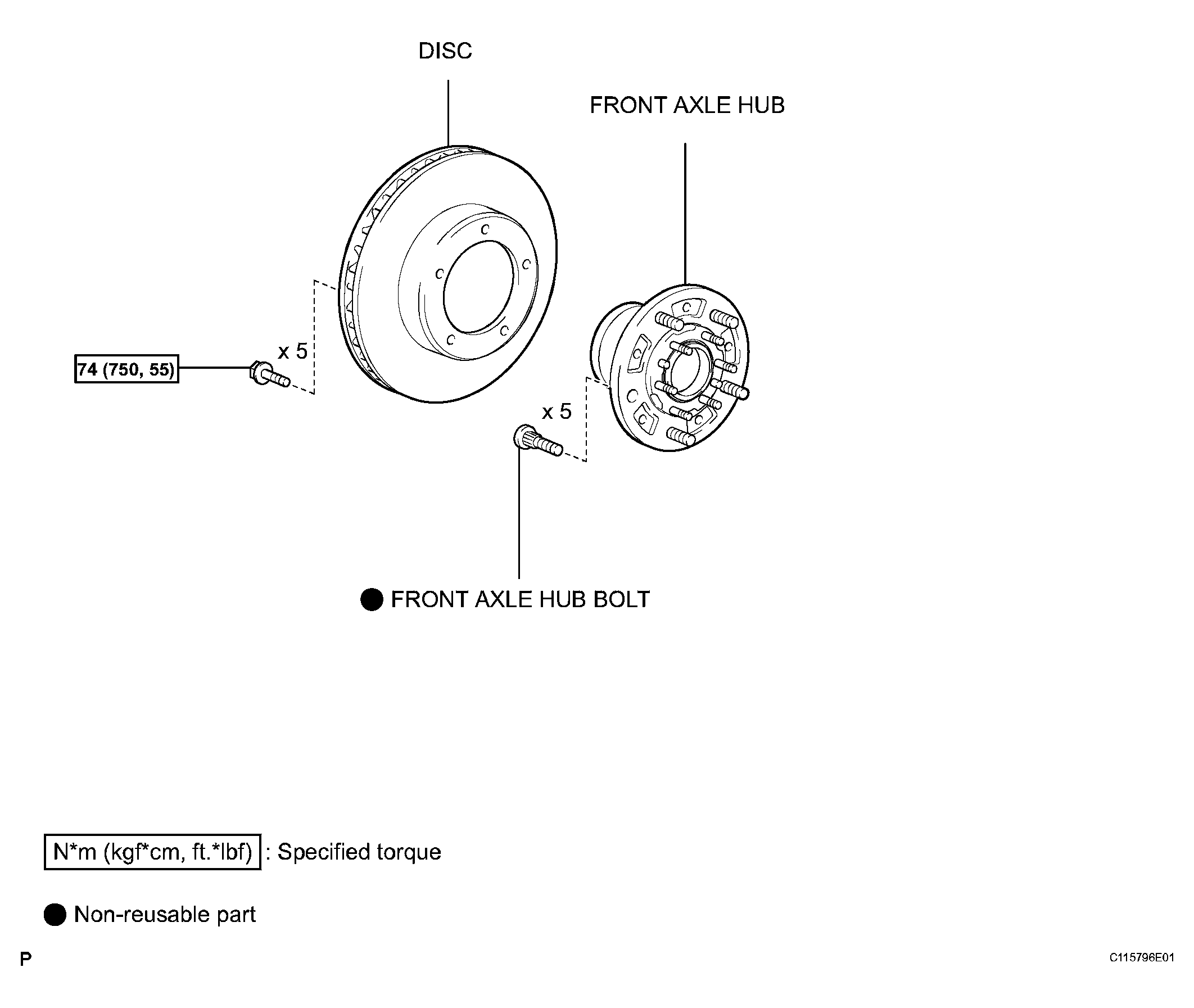

Fig 2: Front Axle Hub Bolt Replacement Components With Torque Specifications (2 Of 2)
G04063429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
