Front Fog Light: Notes

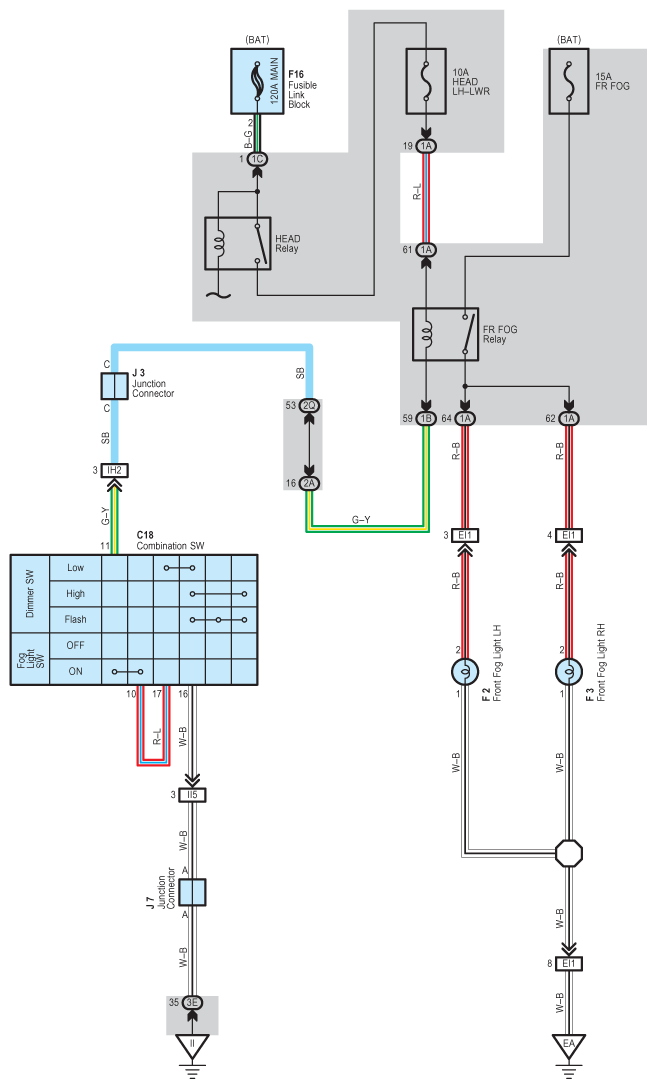

Fig 1: Front Fog Light - Circuit Diagram

G08922730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
