Mirror Heater: Notes

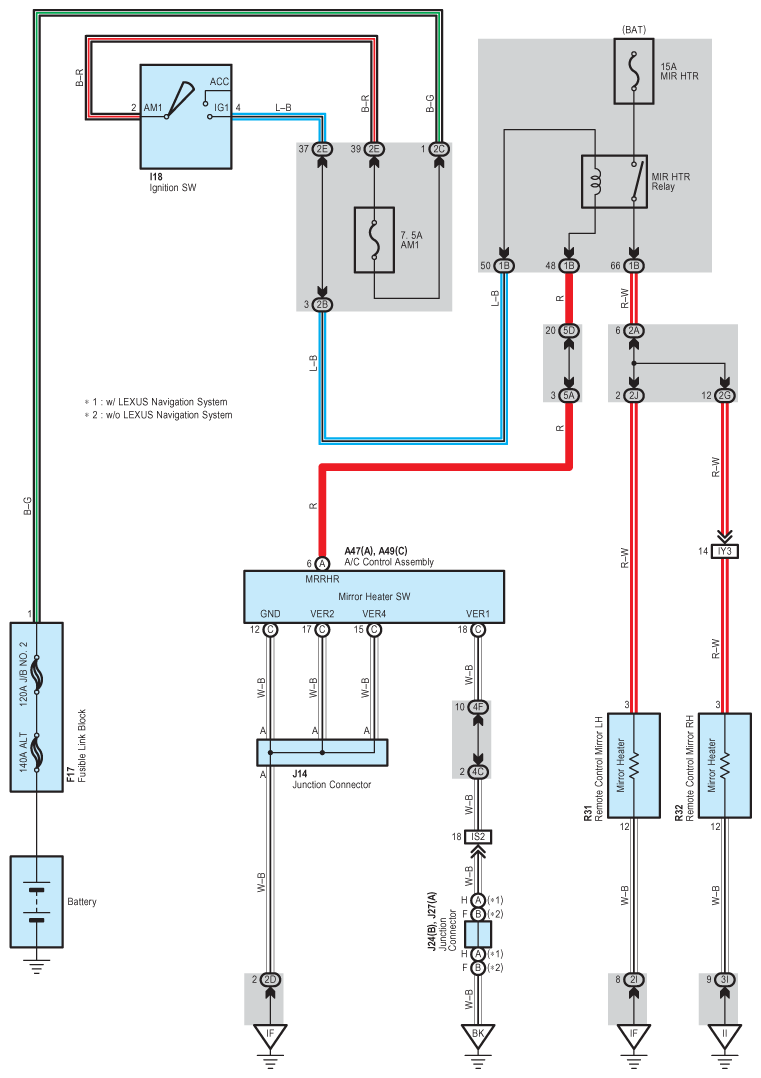

Fig 1: Mirror Heater - Circuit Diagram
G08922875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
