Multiplex Communication System - AVC-LAN
›
Notes
Multiplex Communication System - AVC-LAN: Notes

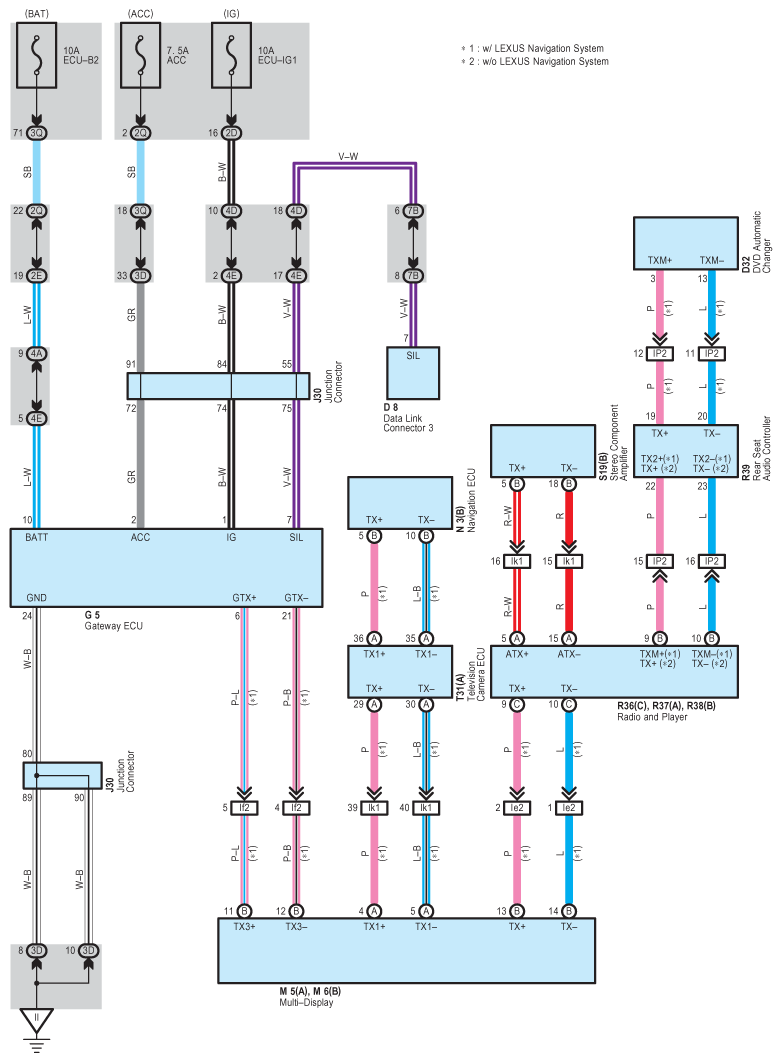

Fig 1: Multiplex Communication System - AVC-LAN - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
