Multiplex Communication System - CAN: Notes

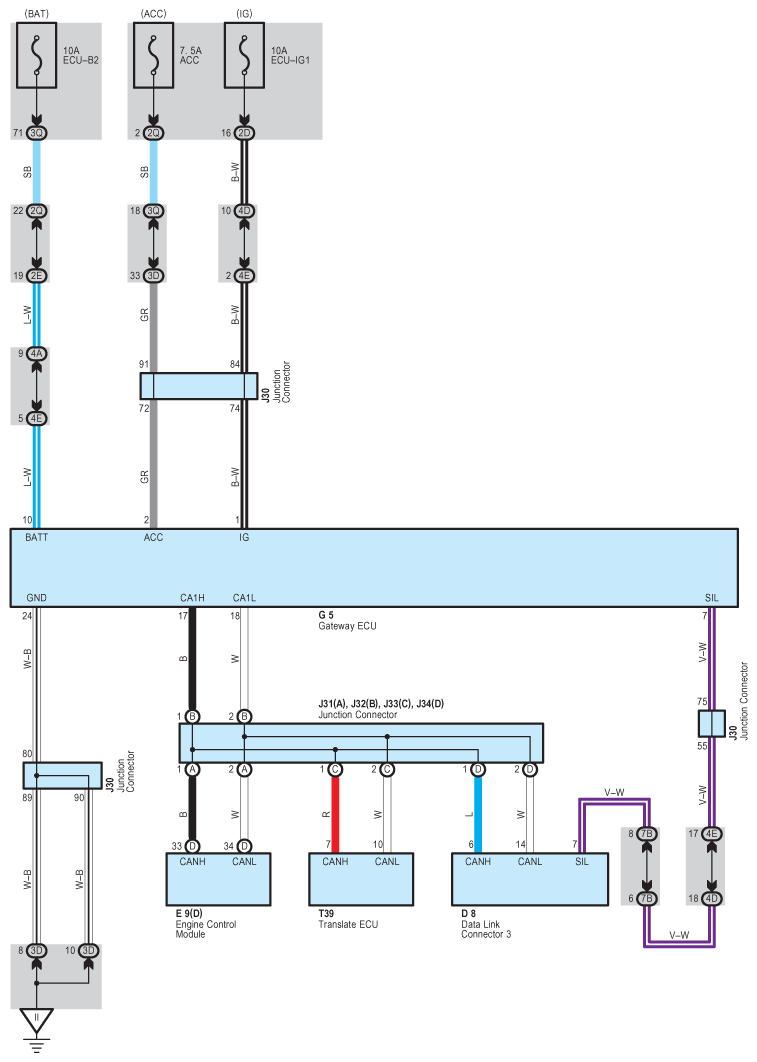

Fig 1: Multiplex Communication System - CAN - Circuit Diagram
G08922788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
