OEM System Circuits: Starting: Notes

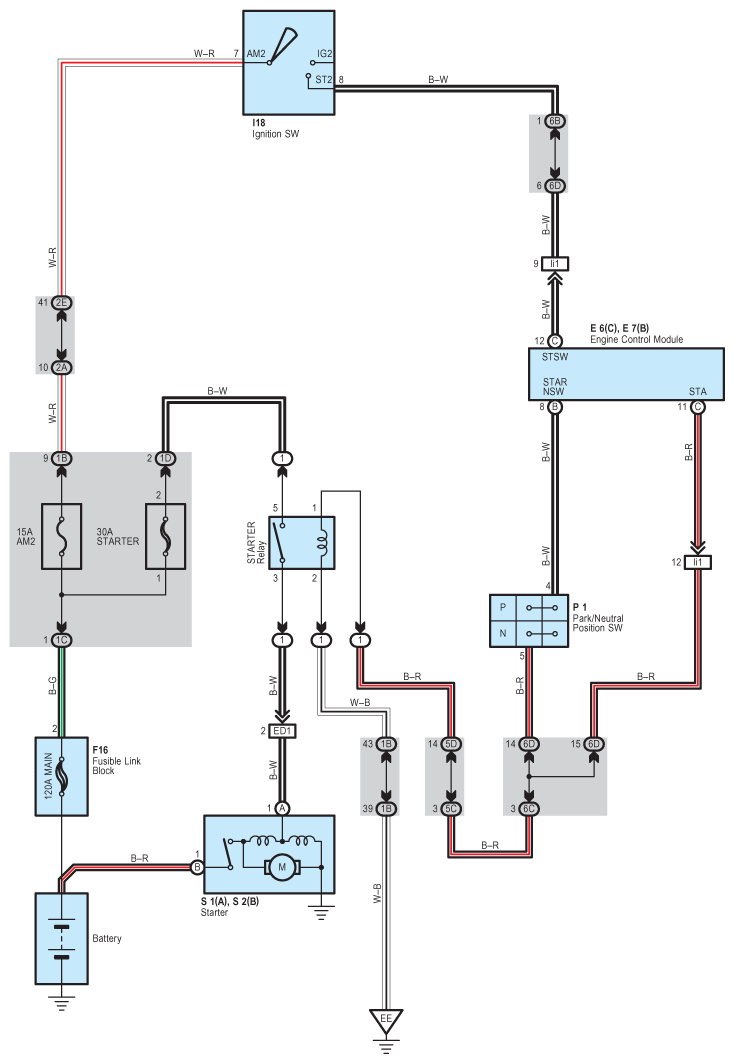

Fig 1: Starting - Circuit Diagram
G08922708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
