On-Vehicle Inspection

1. With the combination meter in which the inclination sensor installed, connect the battery positive terminal to the 1 terminal of the meter connector, and battery negative terminal to the 11 terminal.
2. Check whether or not the voltage is 5 V between the VCC and the GND terminals of the inclination sensor connector.
3. Check the voltage between the OUT and the GND terminals when the inclined sensor is in level position and when it is inclination backward and forward.

Standard voltage:

Sensor in level position: About 4.5 V

Sensor inclined: About 0.5 V

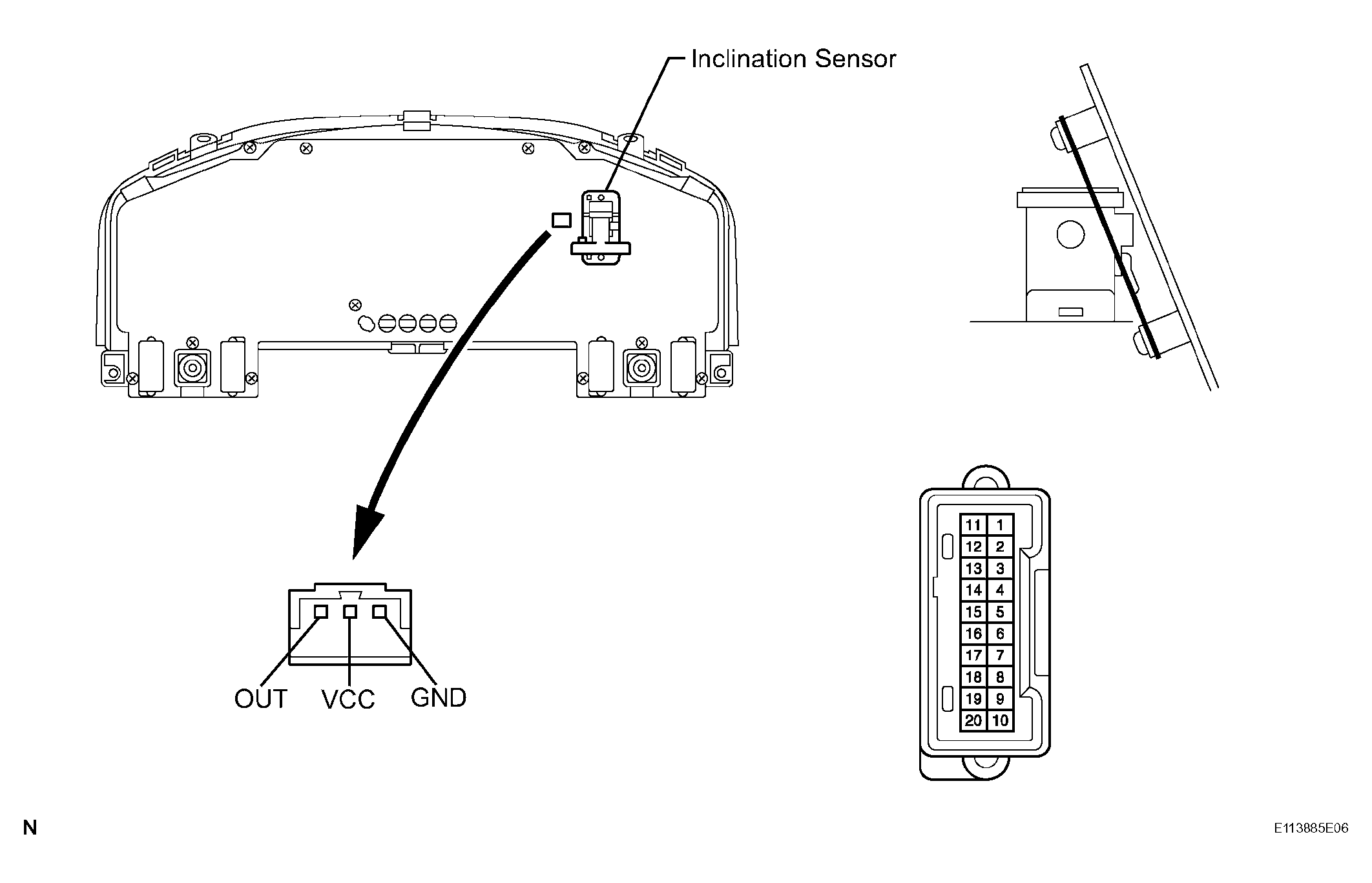

Fig 1: Checking Voltage Between Out And GND Terminals
