EVAP System: Wiring Diagram

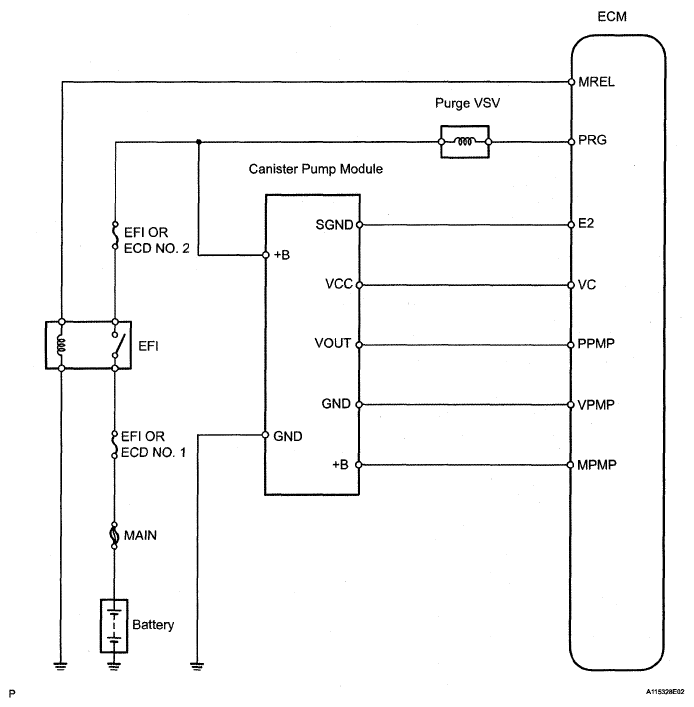

Fig 1: Canister Pump Module - Wiring Diagram

G05196728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
