Fuel Tank: Installation

1. Set up the fuel tank on the transmission jack.
2. Operate the transmission jack so that the fuel pump and sender gauge connector and 2 clamps can be installed. Then raise the mission jack again to install the fuel tank.

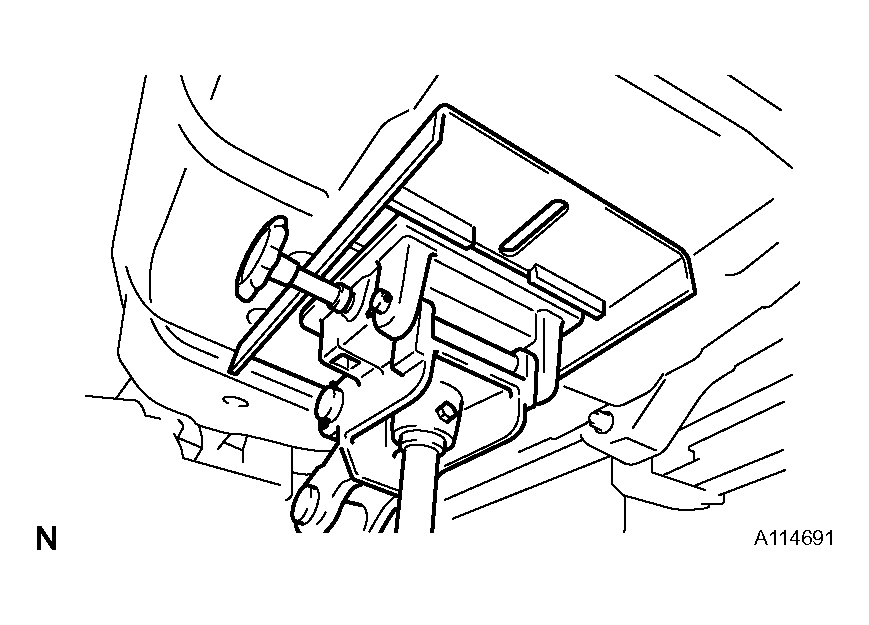

   Fig 1: Jacking Up Fuel Pump And Sender Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 fuel tank bands with the 2 bolts.

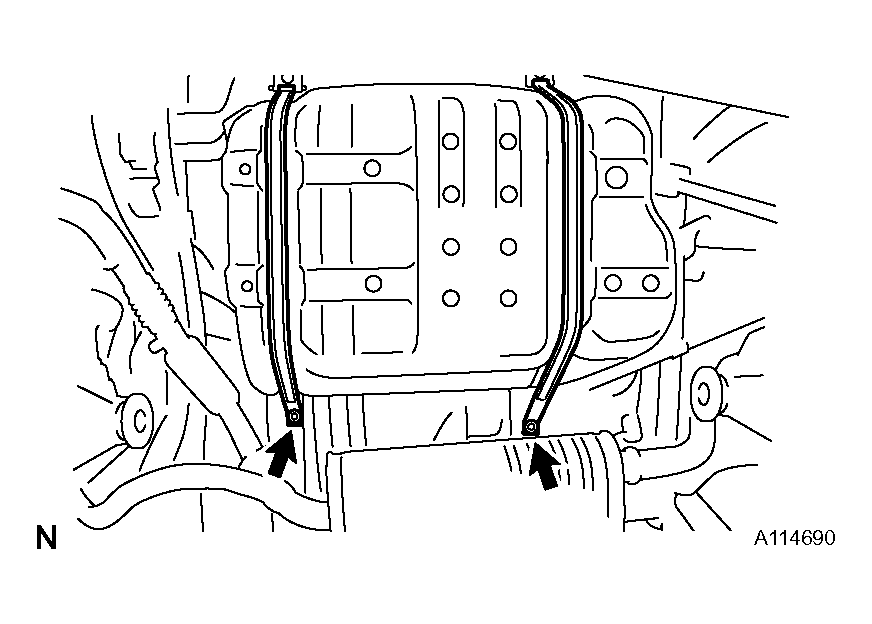

   Fig 2: Identifying Bolts Fuel Tank Bands

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

4. Connect the fuel main tube, return tube and fuel hose.

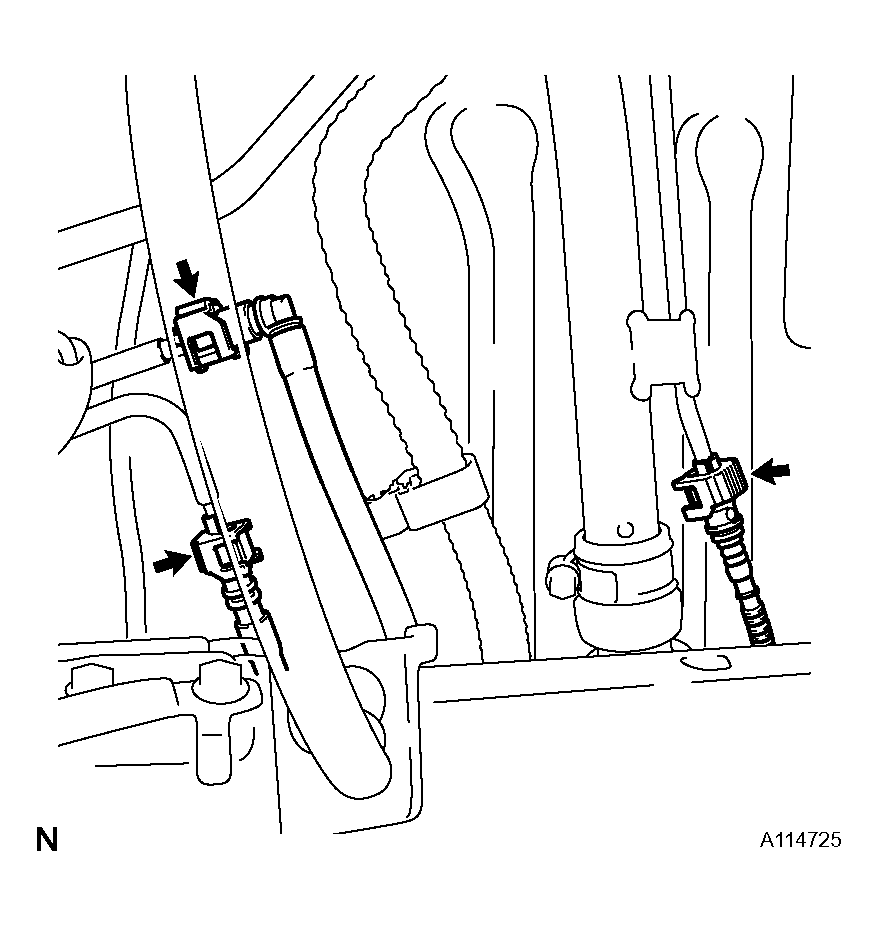

Fig 3: Identifying Fuel Main Tube, Return Tube And Fuel Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that there is no damage or contamination in the connected part of the pipe.
2. Align the axis of the connector with the axis of the pipe. Push the pipe into the connector until the connector makes a "click" sound. If the connection is tight, apply a little amount of fresh engine oil on the tip of the pipe.
   Fig 4: Pushing Pipe Into Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. After having finished the connection, try to pull apart the pipe and the connector and confirm that they are securely connected.
   Fig 5: Pulling Apart Pipe And Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/ Fuel hose connector cover type:

   Attach the lock claws to the connector by pushing down on the cover, as shown in the illustration.

   Fig 6: Attaching Lock Claws To Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the fuel inlet hose to the fuel inlet pipe.
6. Tighten the bolt of the clamp.

Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

Fig 7: Identifying Bolt Of Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the bracket to the body with the bolt.
   Fig 8: Identifying Bracket And Body Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

2. Install the bracket to the fuel tank band with the bolt.

Fig 9: Installing Bracket To Fuel Tank Band With Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

1. Connect the vent line tube to the fuel tank.

Fig 10: Identifying Vent Line Tube

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform initialization (See INITIALIZATION ).
