Ignition Coil: Installation

INSTALL IGNITION COIL ASSEMBLY
1. Install the ignition coil with the bolt.

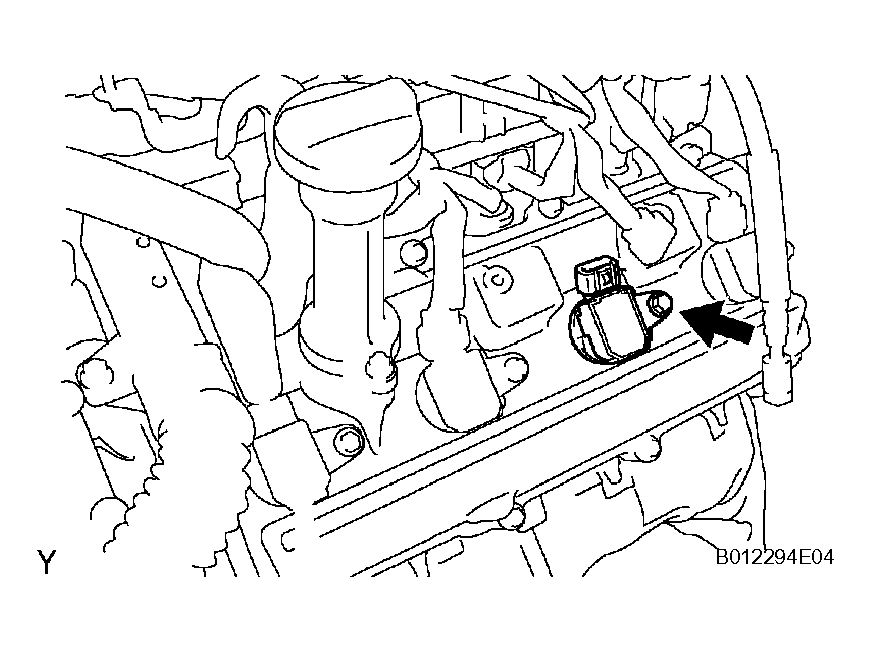

  Fig 1: Identifying Ignition Coil Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Connect the connector.
CONNECT ENGINE WIRE
1. Connect the 2 engine wire clamps to the cylinder head cover LH side.
INSTALL INTAKE AIR CONNECTOR PIPE (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting the cable from the negative (-) battery terminal.
