Standard Bolt
›
How To Determine Bolt Strength
How To Determine Bolt Strength
Bolt Type

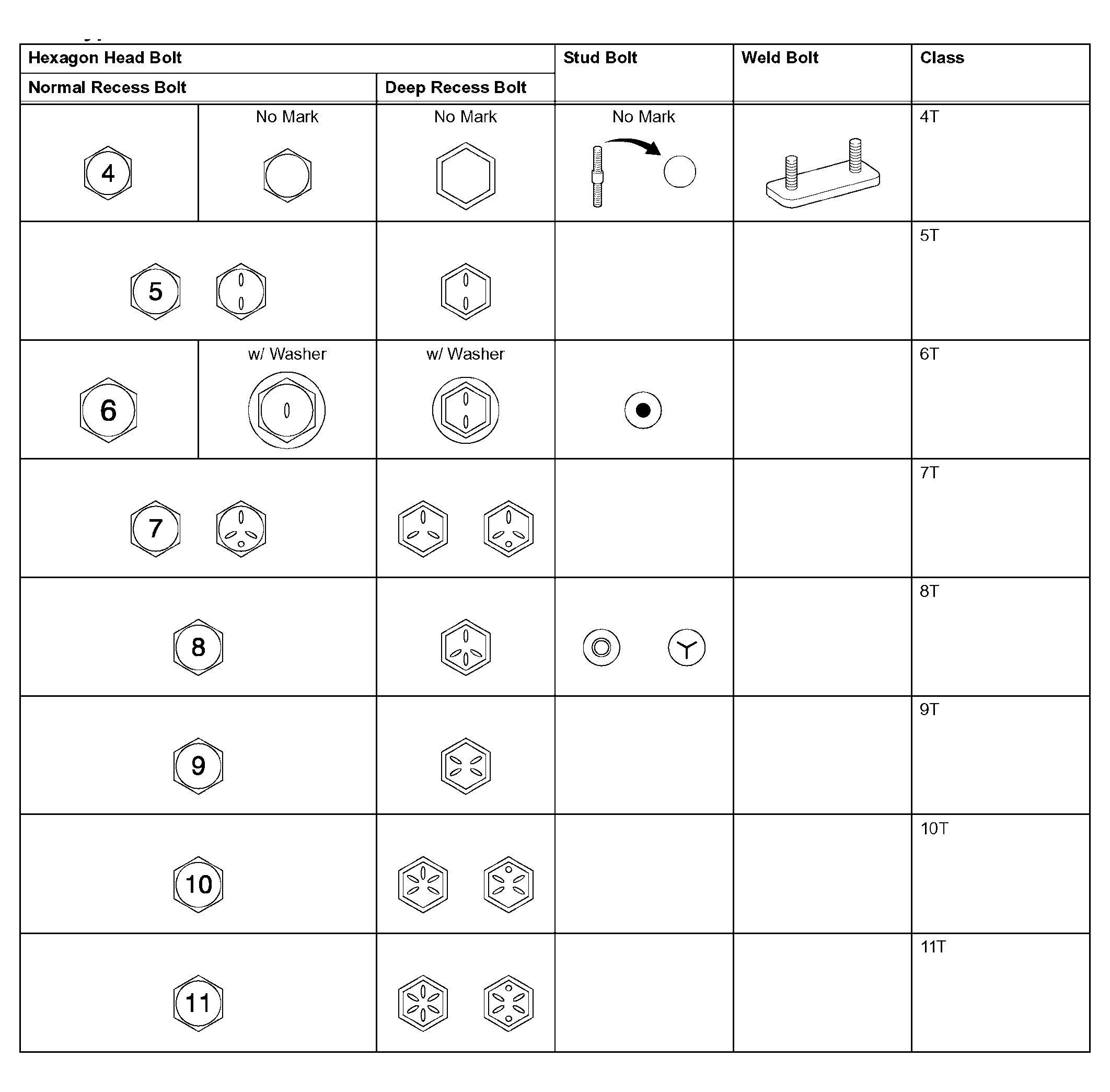

Fig 1: Standard Bolt Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
