Floor Shift Assembly: Components

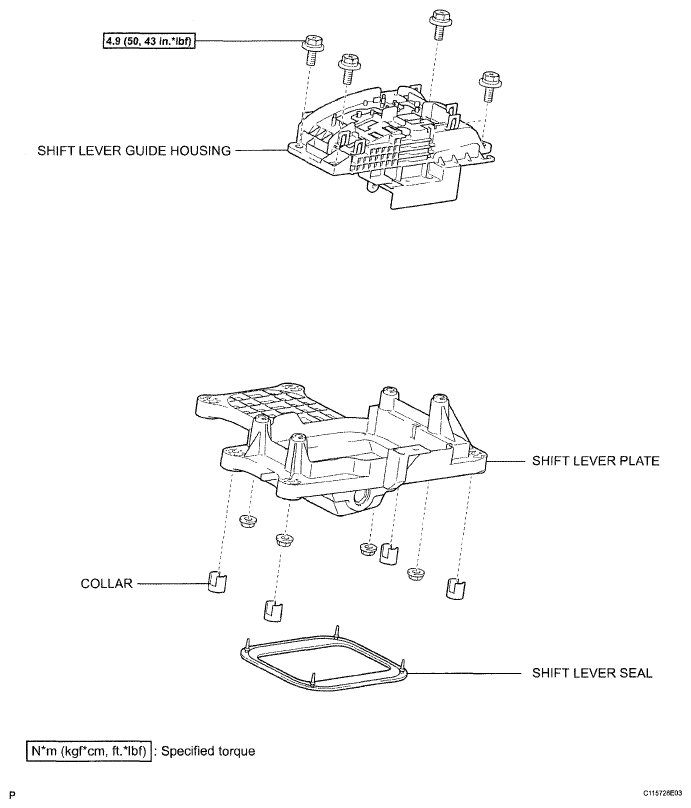

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

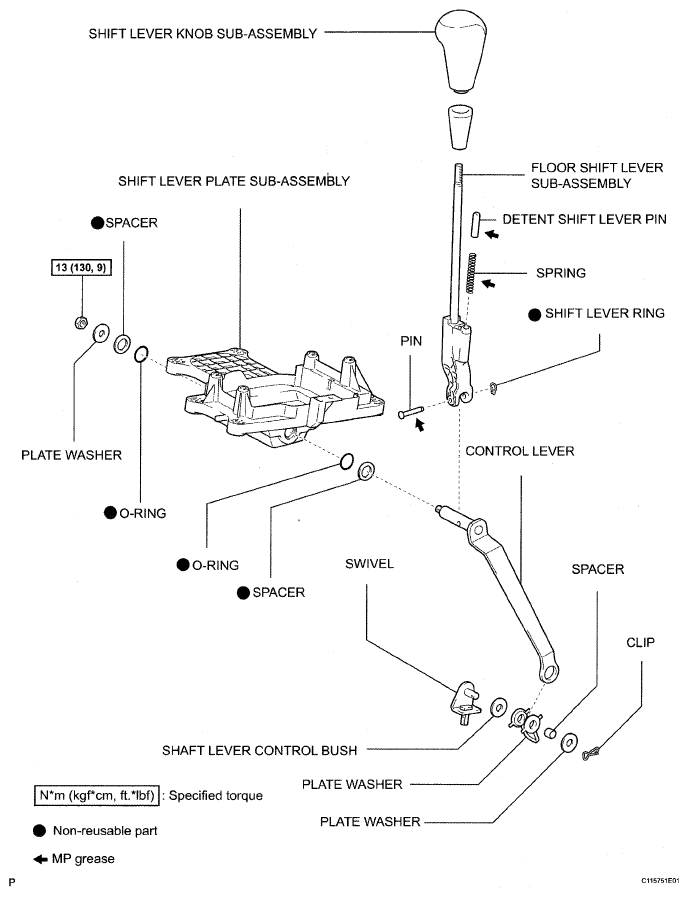

Fig 2: Identifying Floor Shift Assembly Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

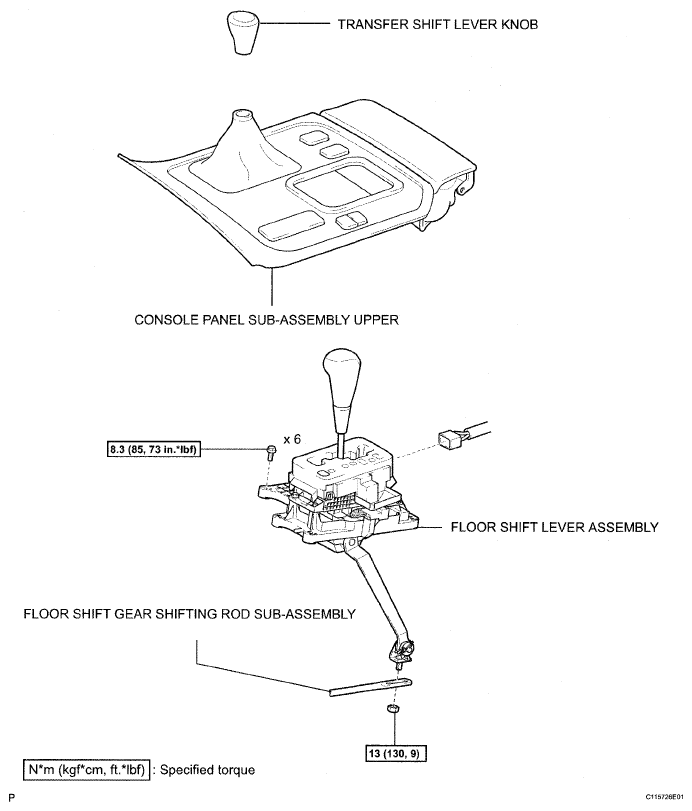

Fig 3: Floor Shift Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

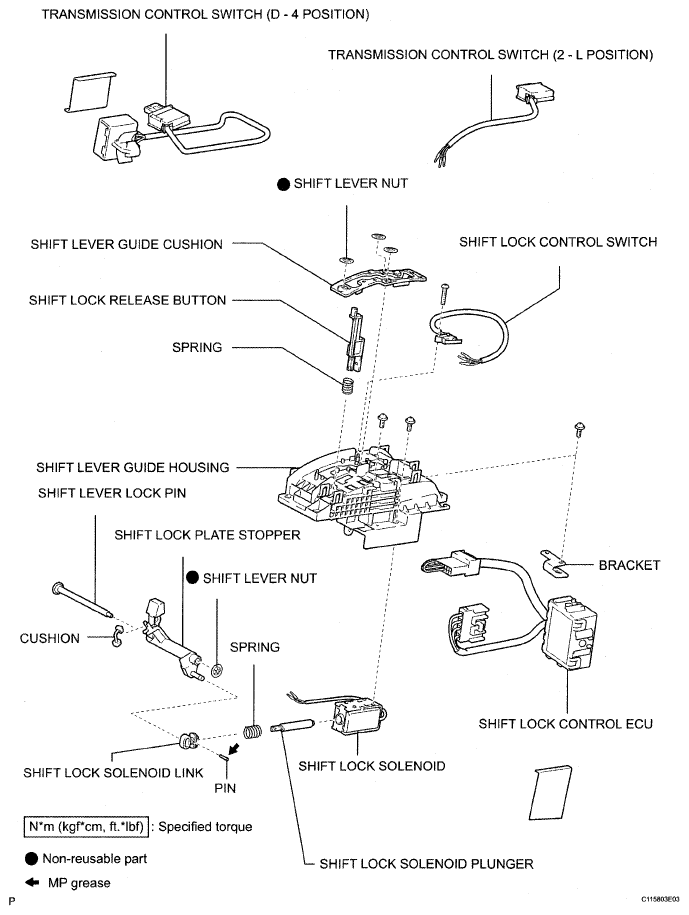

Fig 4: Floor Shift Assembly Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

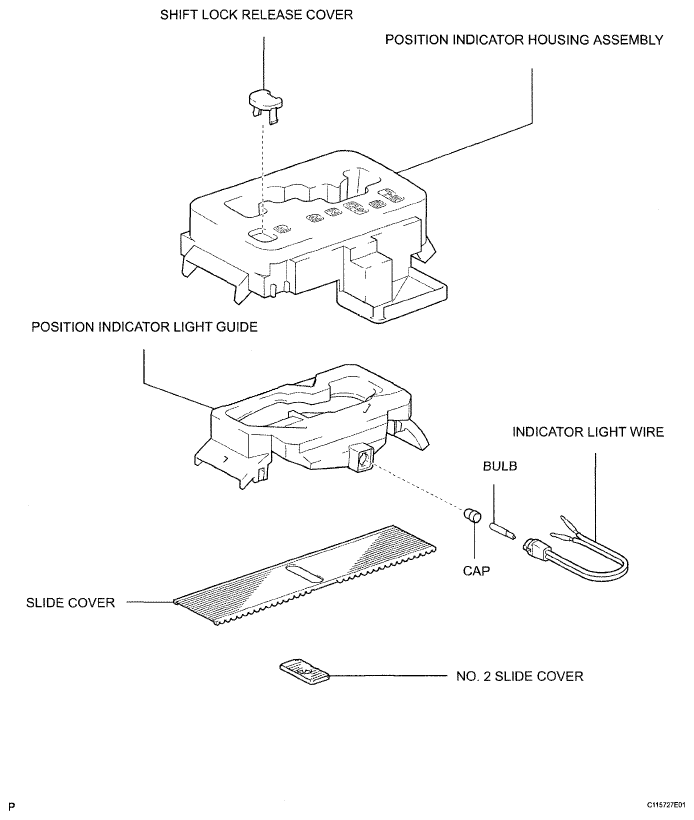

Fig 5: Identifying Floor Shift Assembly Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
