Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR
    1. Disconnect the connectors from the stereo component amplifier and speakers.
    2. Measure the resistance between each of the front No. 1 speakers and the stereo component amplifier to check for an open circuit in the wire harness.

      Standard resistance:

      Below 1 Ω

    3. Measure the resistance between each of the front No. 2 speakers (except the center speaker) and the front stereo component speaker to check for an open circuit in the wire harness.

      Standard resistance:

      Below 1 Ω

    4. Measure the resistance between each of the front stereo component speakers and the stereo component amplifier to check for an open circuit in the wire harness.

      Standard resistance:

      Below 1 Ω

    5. with Front Center Speaker:

      Measure the resistance between the front No. 2 speaker (center speaker) and the stereo component amplifier to check for an open circuit in the wire harness.

      Standard resistance:

      Below 1 Ω

    6. Measure the resistance between each of the rear speakers and the stereo component amplifier to check for an open circuit in the wire harness.

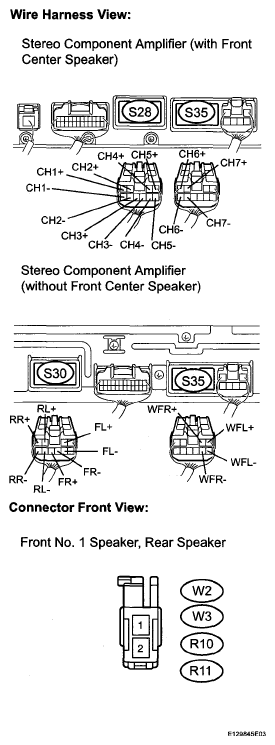

      Fig 1: Identifying Stereo Component Amplifier Connector Terminals
      G05270602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance:

      Below 1 Ω

    7. Measure the resistance between each speaker and body ground to check for a short circuit in the wire harness.
      Fig 2: Identifying Speaker Connector Terminals
      G05270603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance:

      10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next step

  2. INSPECT FRONT NO. 1 SPEAKER
    1. Resistance check
      1. Measure the resistance between the terminals of the speaker.

        Standard resistance:

        with Front Center Speaker:

        7 to 9 Ω

        without Front Center Speaker:

        Approximately 2 Ω

        HINT:

        Perform the above inspection on both LH and RH sides.

    NG: REPLACE FRONT NO. 1 SPEAKER

    OK: Go to Next step

  3. INSPECT FRONT NO. 2 SPEAKER
    1. Resistance check
      1. Measure the resistance between the terminals of the speaker.

        Standard resistance:

        with Front Center Speaker:

        7 to 9 Ω

        without Front Center Speaker:

        Approximately 4 Ω

        HINT:

        Perform the above inspection on both LH and RH sides.

    NG: REPLACE FRONT NO. 2 SPEAKER

    OK: Go to Next step

  4. INSPECT FRONT STEREO COMPONENT SPEAKER
    1. Check that the malfunction disappears when another speaker in good condition is installed.

      Standard:

      Malfunction disappears.

      HINT:

      • Connect all the connectors to the front stereo component speakers.
      • When there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
      • Perform the above inspection on both LH and RH sides.

    OK: REPLACE FRONT STEREO COMPONENT SPEAKER

    NG: Go to Next step

  5. INSPECT REAR SPEAKER
    1. Resistance check
      1. Measure the resistance between the terminals of the speakers.

        Standard resistance:

        with Front Center Speaker:

        14 to 18 Ω

        without Front Center Speaker:

        Approximately 4 Ω

        HINT:

        Perform the above inspection on both LH and RH sides.

    NG: REPLACE REAR SPEAKER

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
