Back Door Opener without Power Back Door
›
Notes
Back Door Opener without Power Back Door: Notes

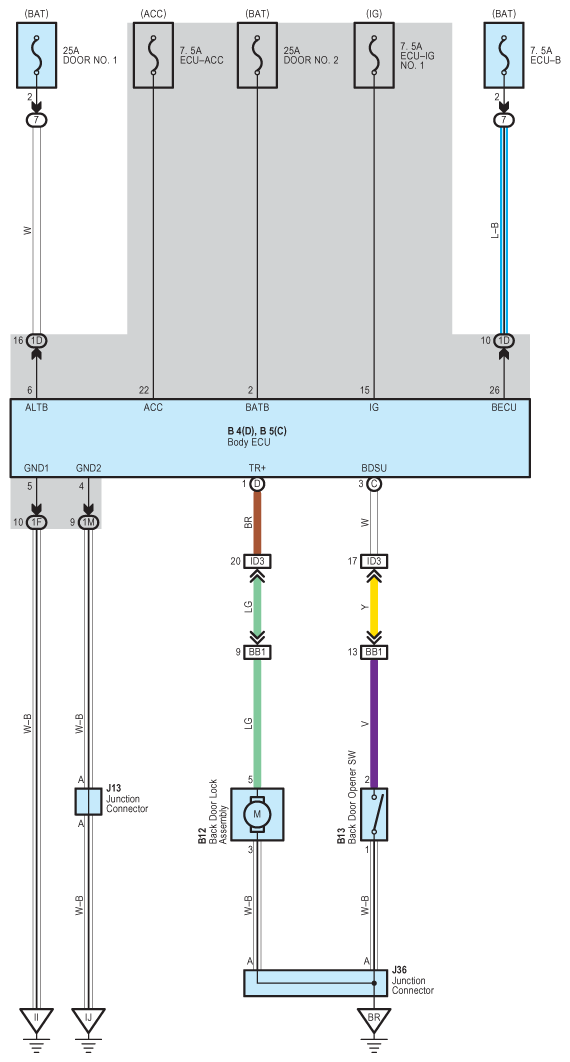

Fig 1: Back Door Opener Without Power Back Door - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
