Charging Systems: Charging: Generator: Components

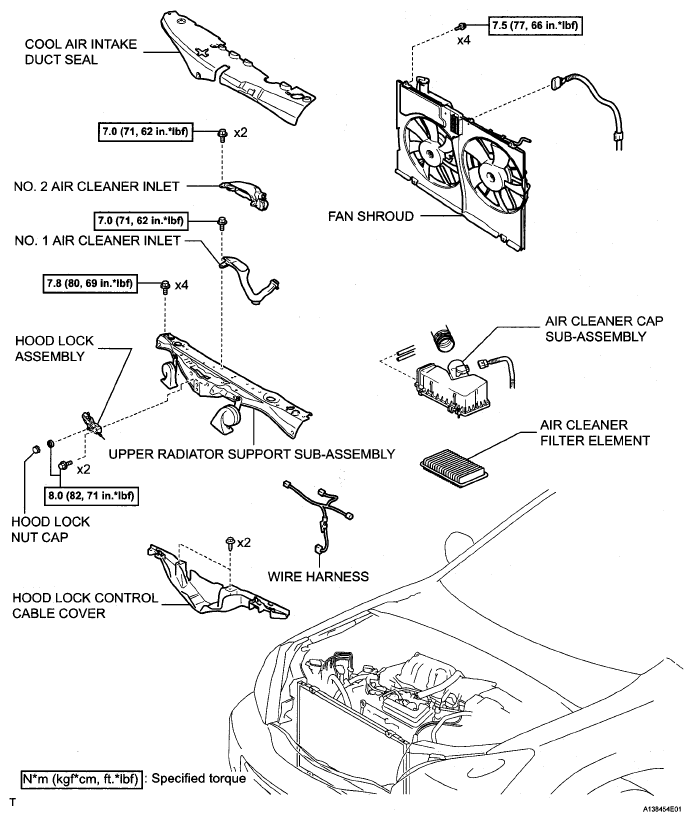

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 Of 3)
G05268544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

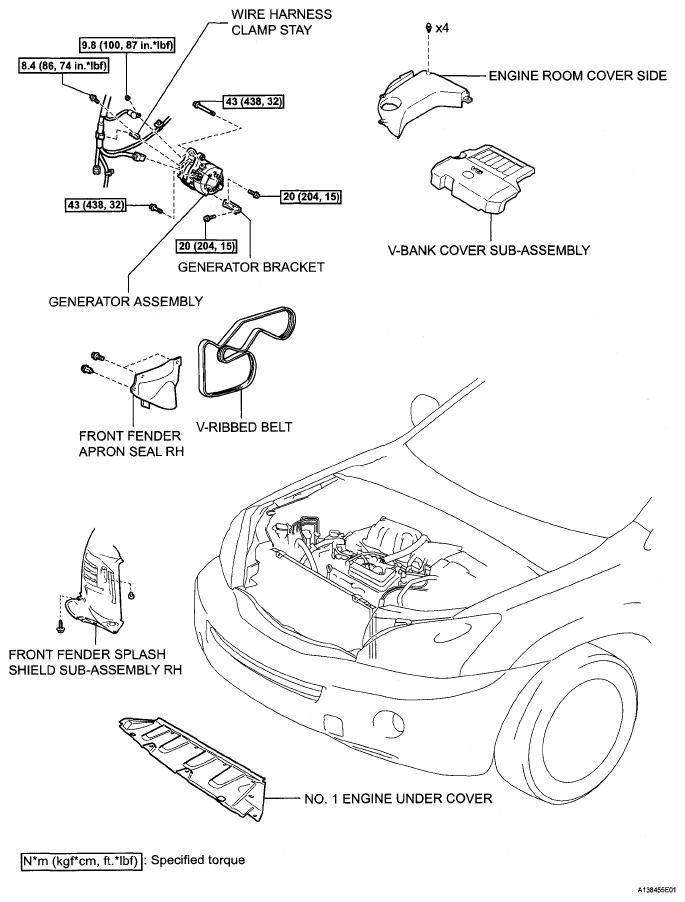

Fig 2: Identifying Generator Replacement Components With Torque Specifications (2 Of 3)
G05268545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

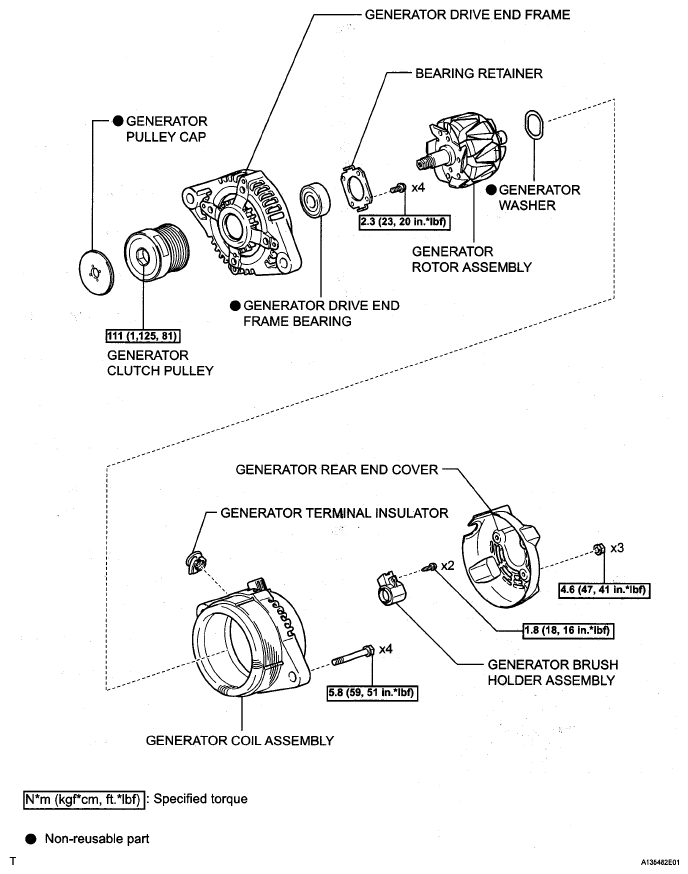

Fig 3: Identifying Generator Replacement Components With Torque Specifications (3 Of 3)
G05268546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
