Exhaust Pipe: Components

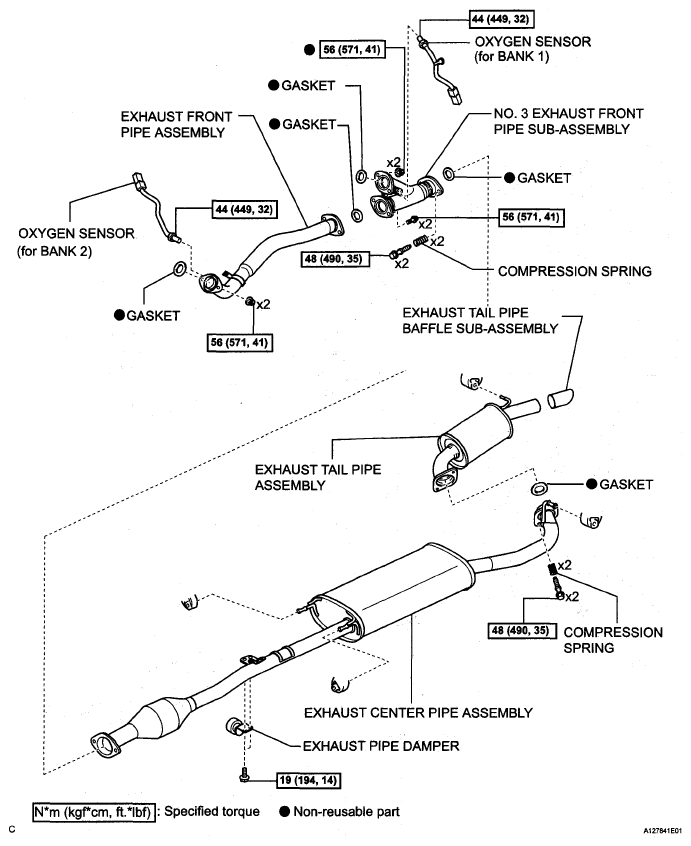

Fig 1: Identifying Exhaust Pipe Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
