DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input)
›
Wiring Diagram
DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

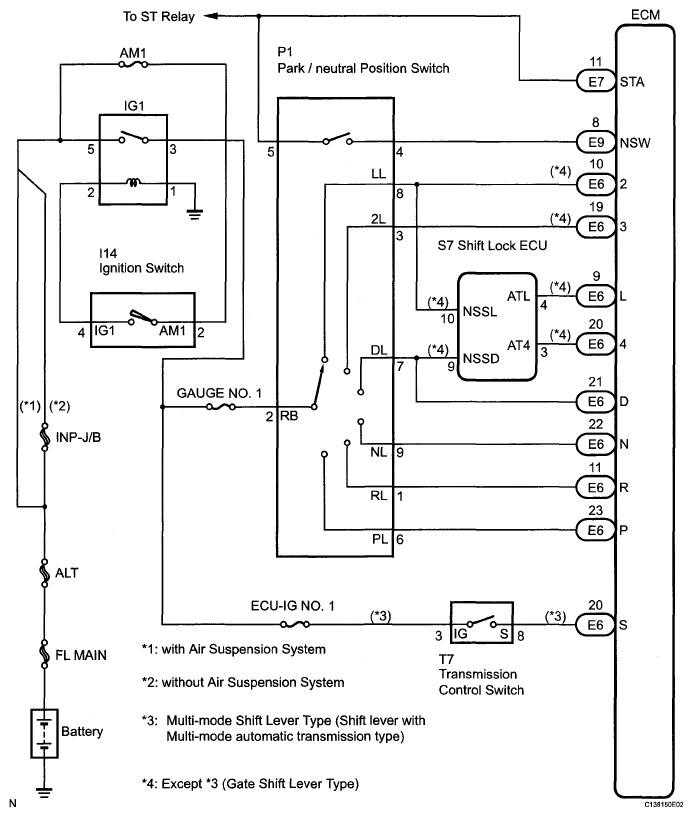

Fig 1: Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
