Fuel Injector: Components

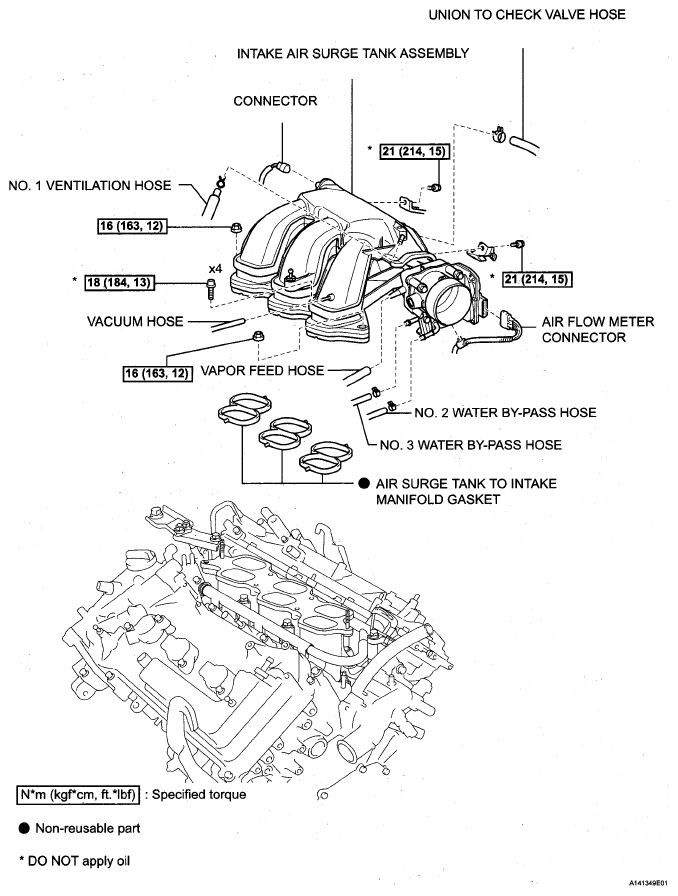

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

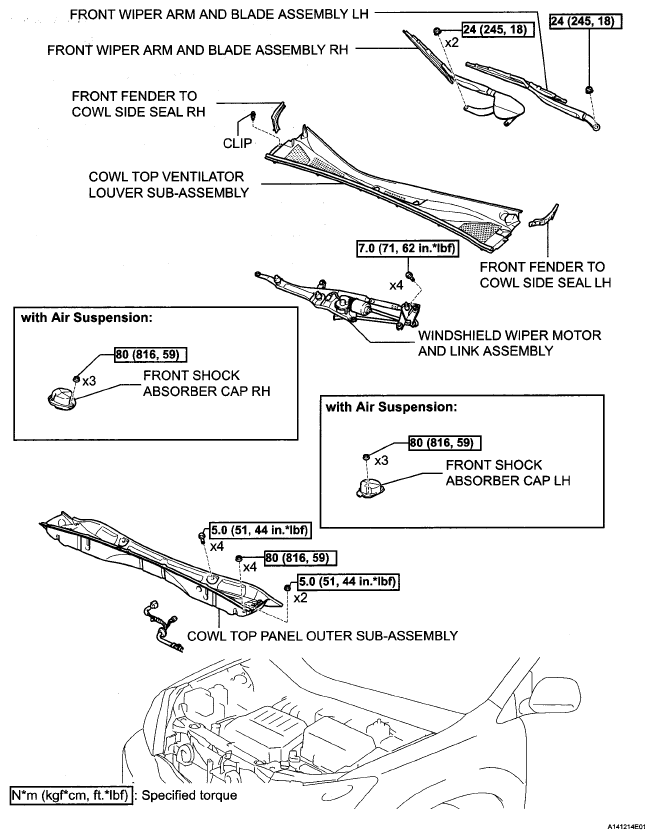

Fig 2: Identifying Fuel Injector Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

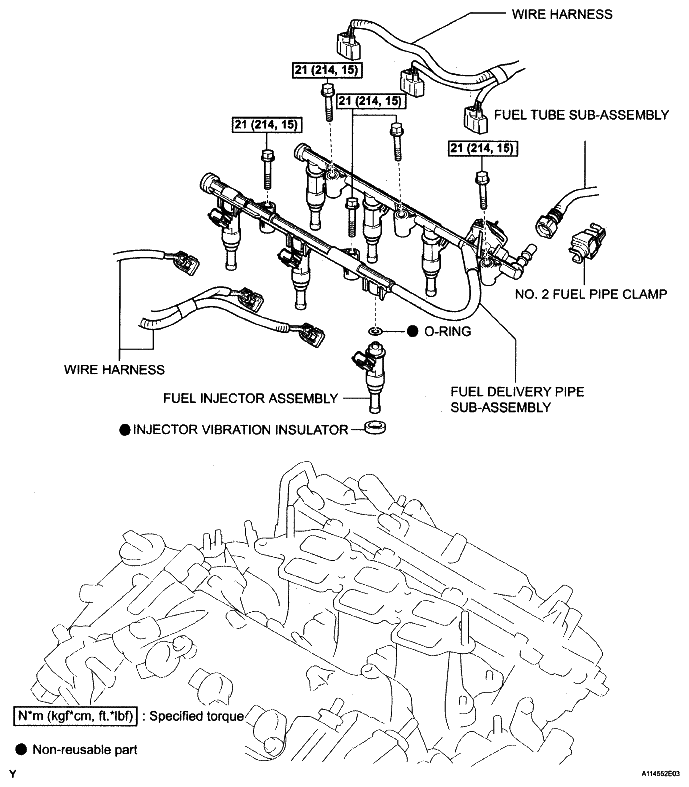

Fig 3: Identifying Fuel Injector Replacement Components With Torque Specification (3 Of 4)

Fig 4: Identifying Fuel Injector Replacement Components With Torque Specification (4 Of 4)
